Installer Menu
3-16
SwingSmart DC Installation and Reference Manual
Revision E
I
NSTALLER
M
ENU
The Installer Menu consists of several functions which can be modified using the Smart DC Controller
buttons or configured through the use of a laptop computer and the S.T.A.R.T. software available from the
HySecurity website.
The Installer Menu options provide more advanced configurations for the SwingSmart operator. Access to the
Installer Menu is through the User Menu. The navigational buttons are the same in both menu modes. To
review how to use the navigational buttons on the Smart DC Controller, refer to
.
NOTE
To access the User or Installer menus, the operator must be in Run Mode with a gate status
showing on the display. The motor cannot be engaged and the gate cannot be moving.

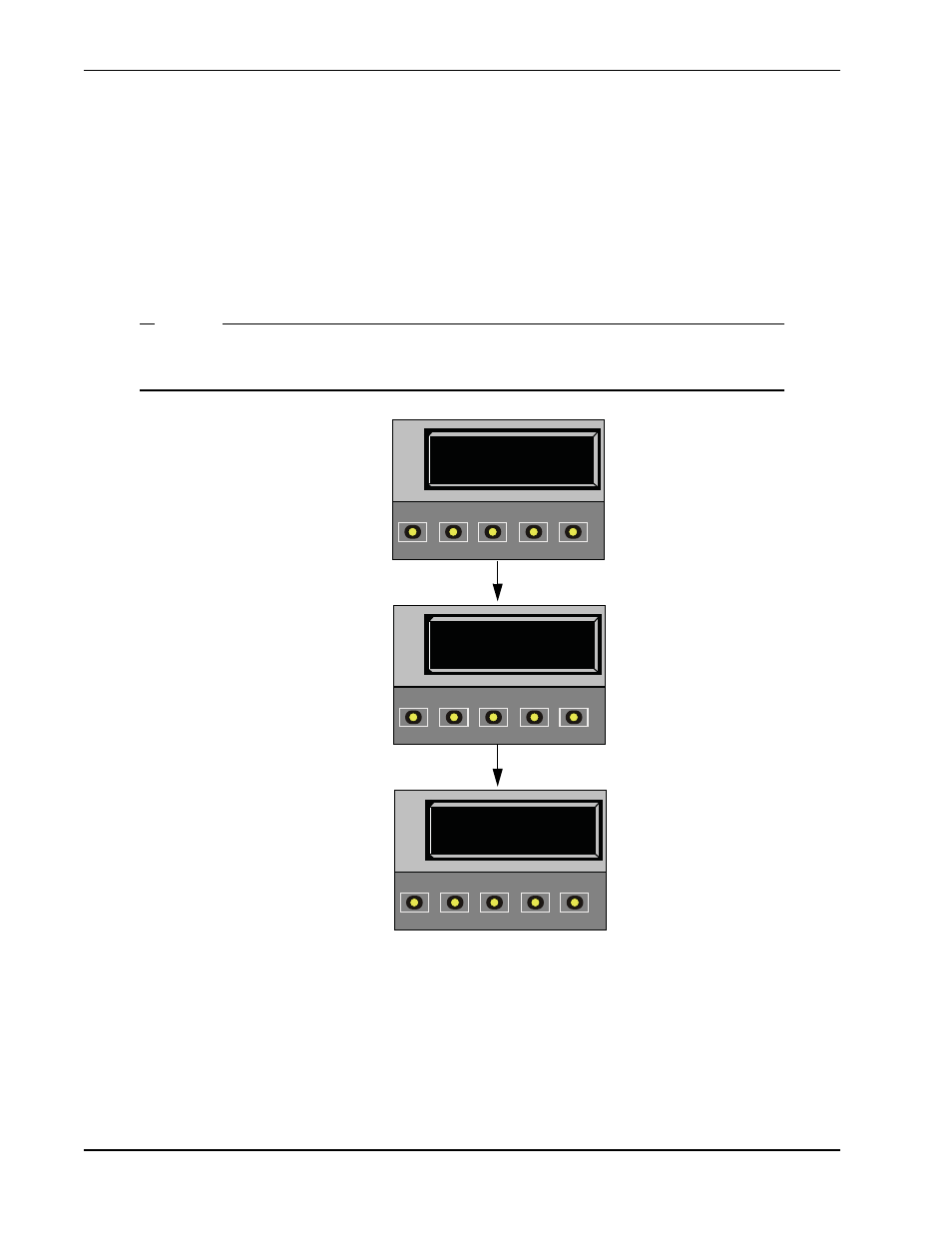

To access the Installer Menu, take the
following steps:
Note:Four menu items, Usage Class,
Gate Handing, Gate Weight, and Gate
Length must be configured before the
operator will function. Refer to
.
In the pages that follow, a detailed view
of the more commonly used menus is
provided.
•
Adjusting the Open Speed
•
Adjusting the Close Speed
•
Adjusting the IES Sensitivity
•
Enabling the Fire Department
Override
•
Reinstating Factory Defaults
describes the
Installer Menus, supplies the factory
defaults, and references the hard-wire
connections.
For information on how the menu buttons function, review
Using the Smart DC Controller Buttons In Menu
HYSECURITY
GATE CLOSED
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
CT 0 (OFF)
CLOSE TIMER
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
UC 2
USAGE CLASS
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
1. S.T.A.R.T. at a gate status display.
To bypass the Operator Status
Displays, press the MENU button
twice.
The CLOSE TIMER display appears
indicating you have accessed the User
Menu.
2. To access the Installer Menu,
simultaneously, press OPEN and
RESET.
Release the buttons and the Usage
Class display appears indicating
entrance to the Installer Menu. The
USAGE CLASS display is the first
item in the Installer Menu.
