Connecting DC Power
2-6 SwingSmart DC Installation and Reference Manual Revision E
C
ONNECTING
DC P
OWER
To connect the DC power:
1. Turn off the DC and AC
power switches.
2. Slide the plastic cover off
the control box.
3. Attach the red spade
connector to the battery
terminal on the DC power
switch. See Figure 2-4.
Note: For extended battery
backup installation, refer to the
Installing the Extended Battery
Backup Kit
instructions.
U
SING
A
S
OLAR
P
OWERED
O
PERATOR
HySecurity offers a solar version of the SwingSmart operator: SwingSmart DCS20. The solar model has
different internal wiring and includes software programmed for solar use. The Smart DC Controller has a
built-in charger which allows a 24V solar panel (or two 12V panels) a direct connection to the SwingSmart
operator with no additional electronic devices required.
NOTE
Solar panels are NOT included in the purchase of the SwingSmart DCS 20 Solar operator.
Also, adapting a standard SwingSmart DC operator to a solar application is not recommended.
For ease of installation and proper functionality, be sure to order a SwingSmart DCS 20 for a
solar-powered site.
To plan a solar-powered site, read through this entire section. Keep in mind that the SwingSmart DCS 20
operator does not have the following components:
•
Transformer
• AC power supply board
• AC service outlet
• Various wiring adaptations that are standard in a SwingSmart DC 20 operator

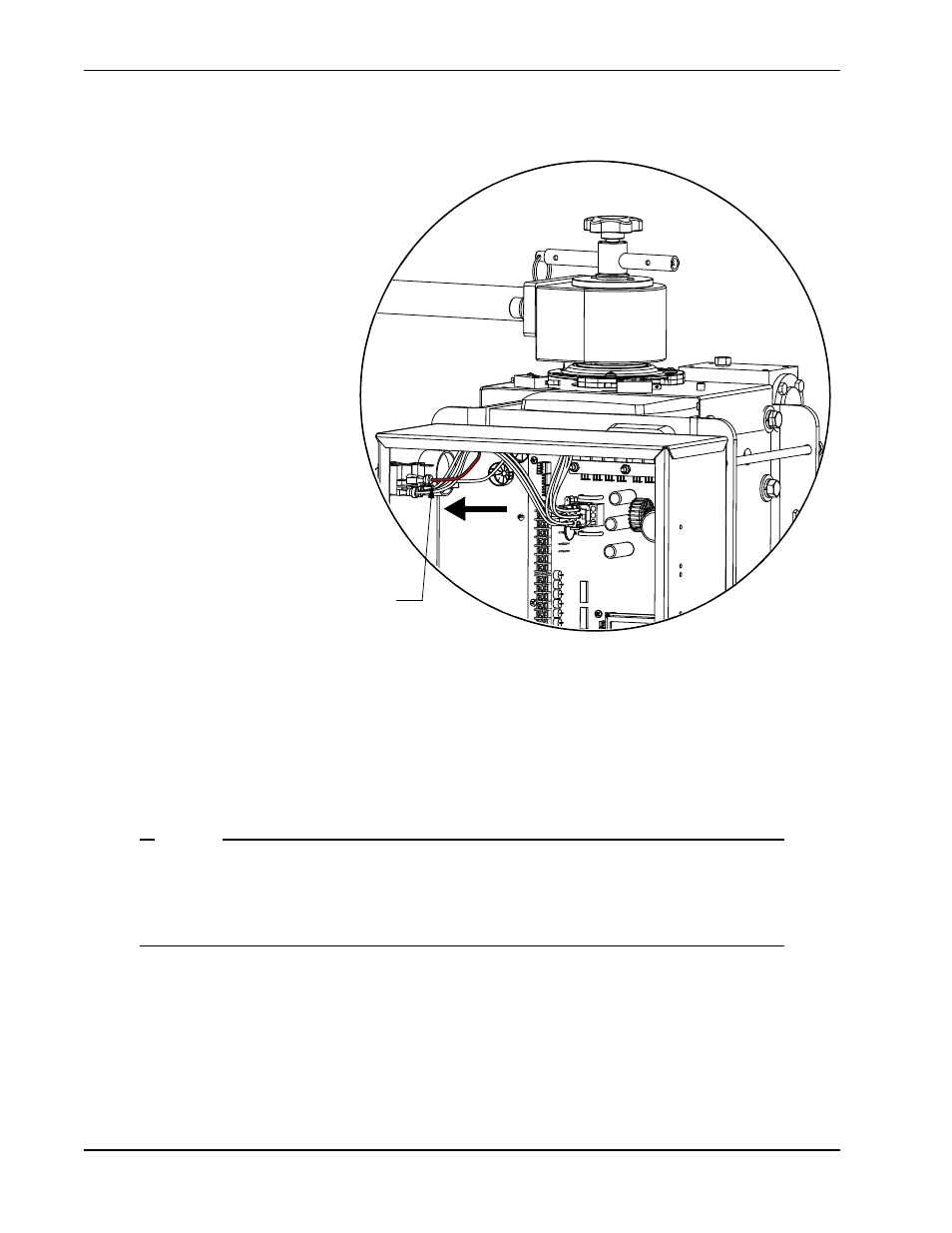

Figure 2-4.
Red spade
connector
