Gate Bracket and Linkage Arms
Revision E Installation 1-13

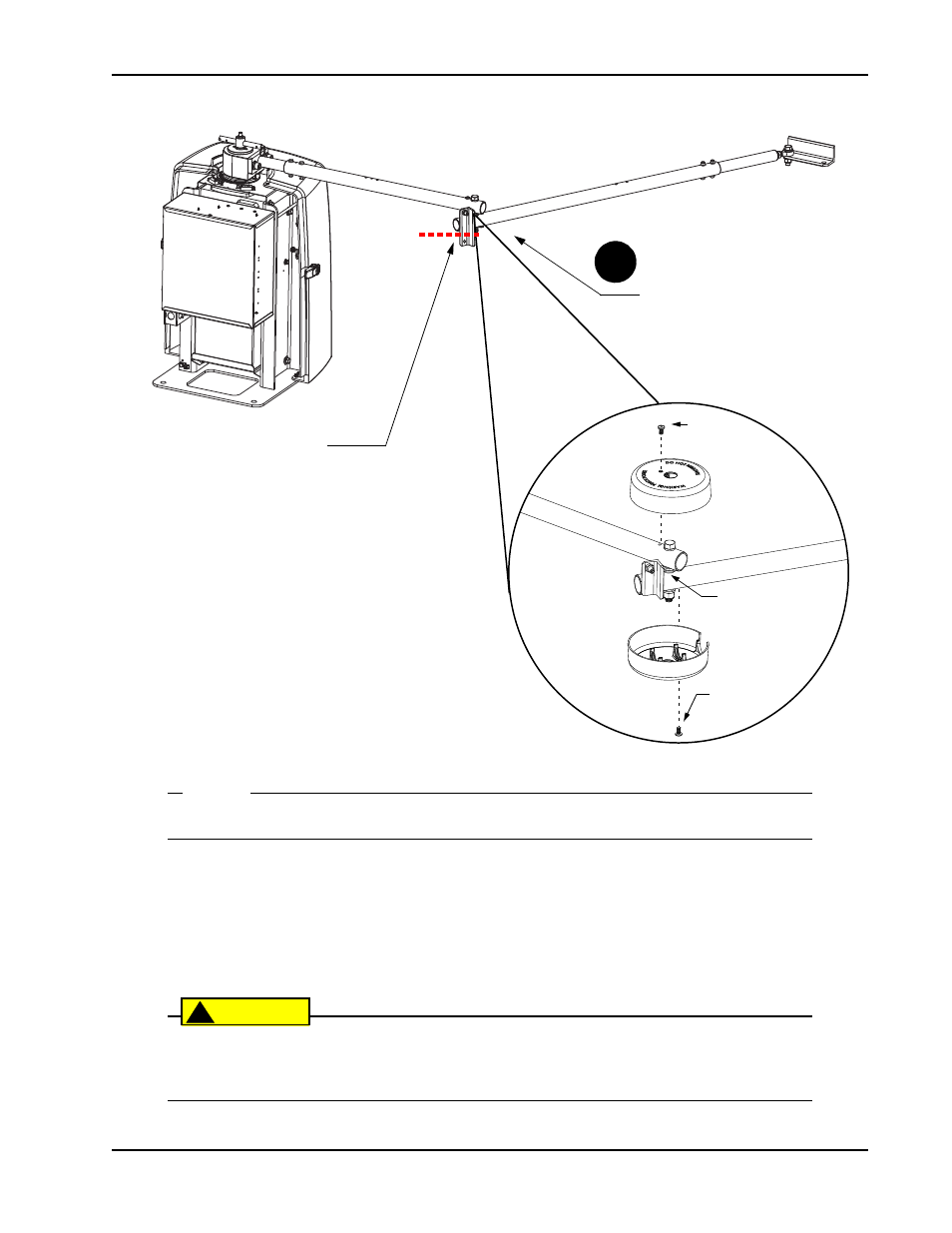

Figure 1-15.
NOTE
The two elbow joint cover fasteners are shipped with the covers.
3. Saw the excess from the over-extension stop. Be careful not to cut the linkage arms or pivot bolt fasteners.
4. Place the covers over the elbow joint.
5. Align the mounting holes and cutouts in the covers with the gate arms.
6. Make sure the gap between the top and bottom covers is evenly aligned. See Figure 1-15.
7. Insert the two fasteners and secure the covers.
CAUTION !
It is critical that you install the elbow joint covers to comply with UL325 Safety Standards. The
elbow joint is considered a pinch point and serious injury may occur if the covers are not
secured properly to the gate arms.
Top and bottom covers need to be
evenly aligned. Gap should be less
than ¼-inch.
Cover
fastener
Cover
fastener
Bottom cover
Top cover
Elbow joint
2
Over-extension stop
Cut excess
