Reinstating Factory Defaults
Twelve menu configurations are available in the User Menu. Another 32 items in the Installer Menu let you
customize the operator depending on the number of attached accessories and your customer’s needs.
CAUTION
Reinstating factory default clears ALL menu display settings stored in the operator and returns
them to factory defaults. It is recommended that you save the menu settings before reinstating
factory defaults. You can write the settings in a notebook or, if you have a laptop computer, you can
use HySecurity’s S.T.A.R.T. software and download the menu settings as part of the diagnostic log.
To reinstate factory defaults, take the following steps:
1. At a gate status display, press the MENU button
twice. This accesses the User Menu and the
CLOSE TIMER display appears.
2. Simultaneously, press the OPEN and RESET
buttons to enter the Installer Menu.
Release the buttons and the USAGE CLASS
display appears. It is the first item in the Installer
Menu.
3. Press NEXT until the FACTORY DEFAULTS
display appears. The factory default setting is 0.
4. Use the SELECT and NEXT buttons to
navigate and change the number on the display
to 1.
Note:When you press SELECT to accept FD 1, the
factory settings are reinstated immediately and the menu
display returns to the initial Setup Menu. The gate
operator will not run until all four sequential menu
parameters are entered: Usage Class, Gate Handing,
Gate Weight, and Gate Length. Refer to
Configuring
the Setup Menu .
HYSECURITY
GATE CLOSED
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
CT 0 (OFF)
CLOSE TIMER
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
UC 2
USAGE CLASS
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
FD 1 (ON)
FACTORY DEFAULTS
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT

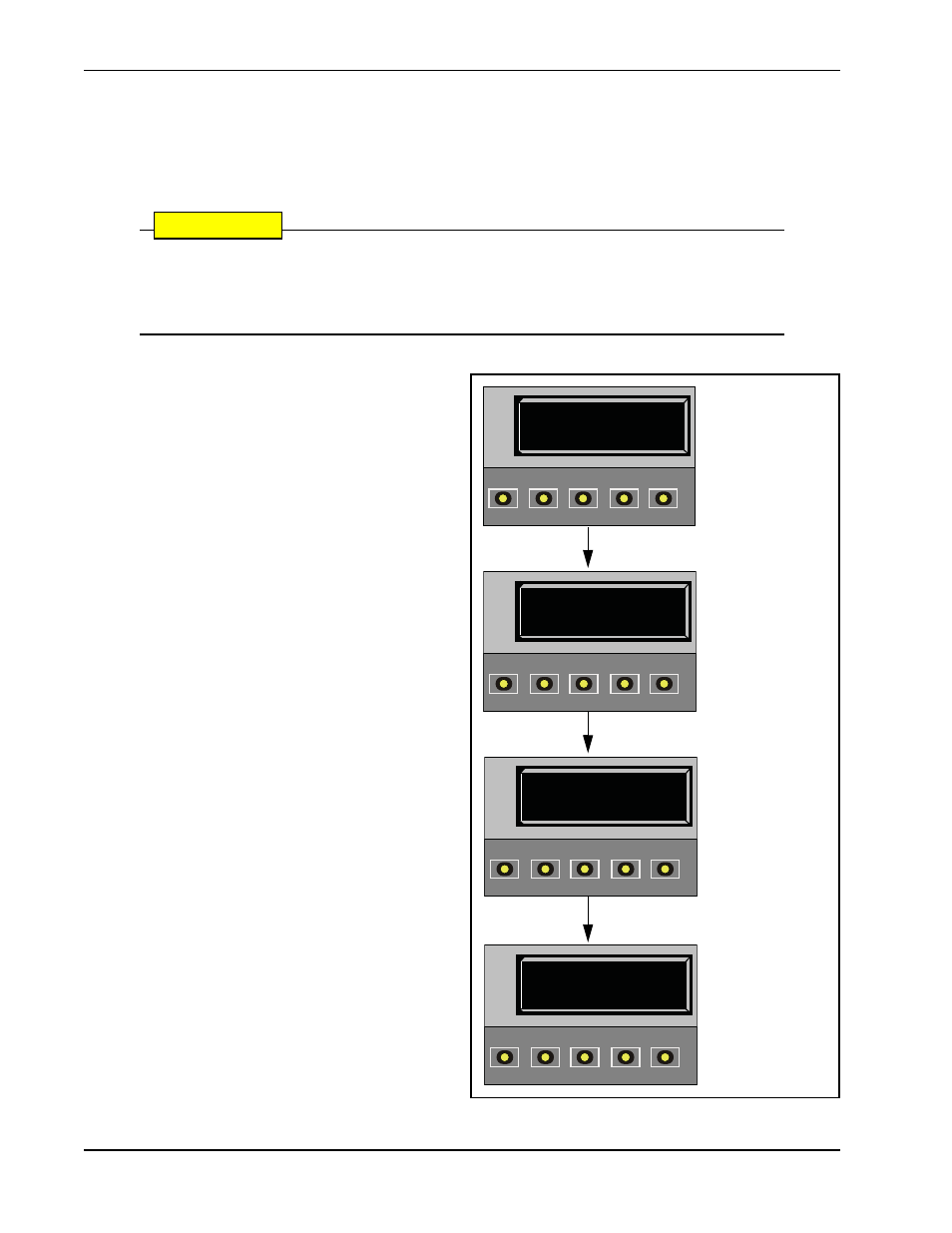

1. S.T.A.R.T. at a gate
status display.
2. To access the User
Menu, press MENU
twice.
3. To access the
Installer Menu,
simultaneously, press
OPEN and RESET
4. Use NEXT to
navigate to the menu
display. Change the
setting using the
SELECT and NEXT
buttons.
