Pad Condition
1-2 SwingSmart DC Installation and Reference Manual Revision E
P
AD
C
ONDITION
Pouring the Concrete
1. Follow the local building codes to
identify the frost line and determine
the required depth of the concrete pad.
HySecurity recommends a minimum
16-inch (40.6cm) depth with a
minimum 2-inch (51cm) extension
above ground level. Refer to Figure 1-2
and Figure 1-3.
2. Before pouring the pad, consider
conduit placement so it fits within the
confines of the cutout in the
SwingSmart base plate as shown in
Figure 1-3. Run separate conduits for:
•
high voltage wiring (115-230V
supply power) including
equipment ground
• low voltage wiring (12V and 24V
accessory power) including:
•vehicle loop control wiring
•master/slave connections
• earth ground (NEC/NFPA)

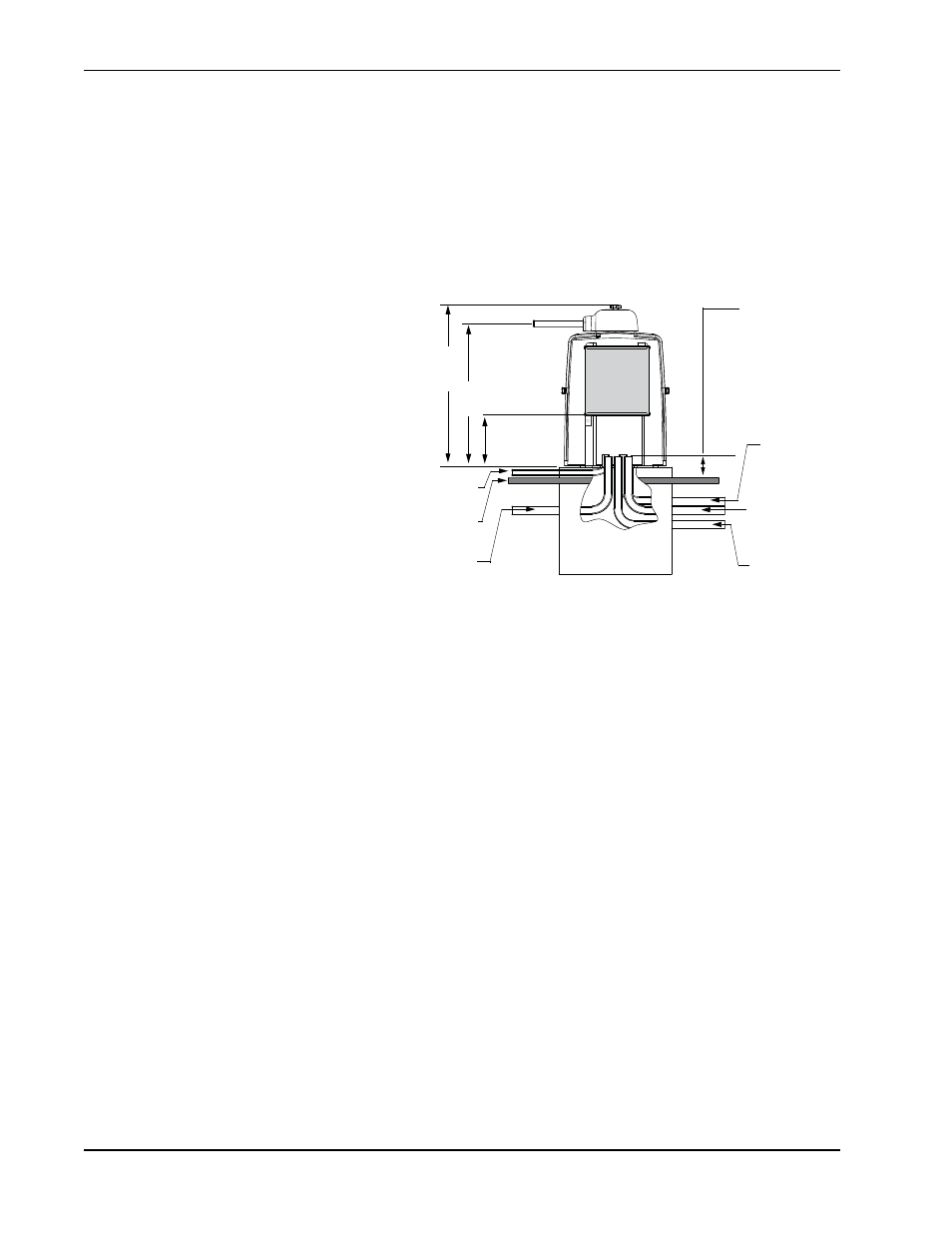

Figure 1-2.
Low voltage/
Communication
wires
Master/slave
wires - optional
High voltage
30.2"
76.7cm
26.8"
(68cm)
Vehicle Loop
control wires
Earth ground
Ground level
9.6" (24cm)
control box
height
Stub out conduit
4-inches (102mm)
above ground
level
2-inch (51cm)
height above pad.
