Site Overview & Planning
Revision E Installation 1-1
Installation
Chapter 1
S
ITE
O
VERVIEW
& P
LANNING

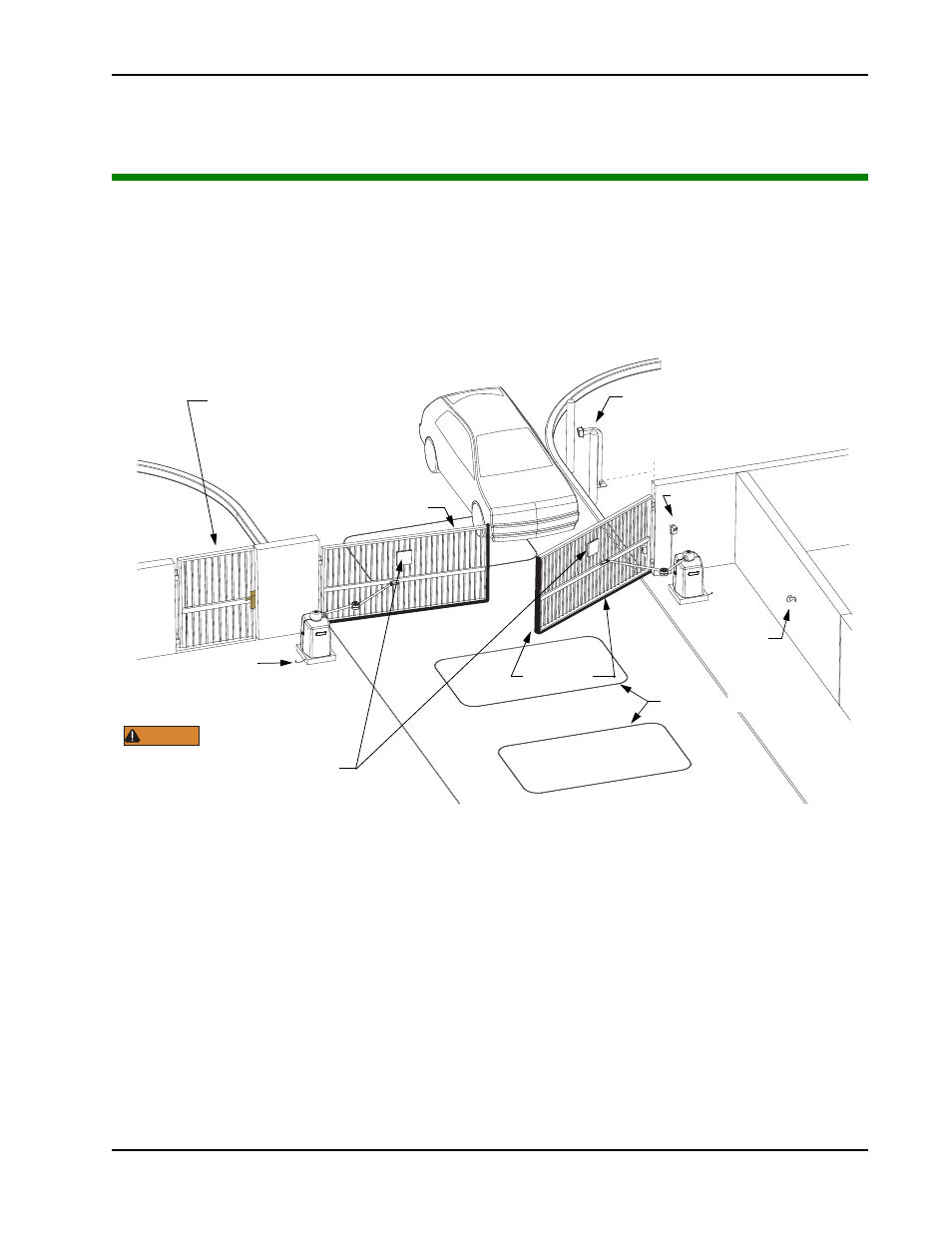

Figure 1-1.
SwingSmart DC 20 SwingSmart DCS 20 Solar
Duty cycle: continuous Duty cycle: continuous
Power, single phase: Switch selectable Solar-powered
115 volts, 3 amps, 50/60 Hertz 24VDC, 100 cycles/day requires two 10 WATT
230 volts, 1.5 amps, 50/60 Hertz panels and a minimum of 5 solar hours/day.
Motor: ½ hp Motor: ½ hp
DC Batteries: Two 8Ah (50Ah optional) DC Batteries: Two 8Ah (50Ah optional)
Gate time to open/close: Gate time to open/close:
Approximately 10 to 15 seconds Approximately 10 to 15 seconds
Variable speed, open/close separately Variable speed, open/close separately
Gate weight: 1,300lbs @ 12ft leaf (590kg @ 4m leaf) Gate weight: 1,300lbs @ 12ft leaf (590kg @ 4m leaf)
Note: For more specifications, refer to the last page in this manual.
Secure Side
Public Side
CL
Pedestrian gate
Make sure a separate walk-
through entrance is available and
its pedestrian path is clearly
designated.
Edge sensors
detectors
In-ground vehicle loop
Reflector for
photo eye
Photo eye
Keypad or Card Reader
Mount access control devices
at least 6ft (1.8m) beyond gate.
Earth ground
Attach WARNING Signs
Be sure to place the
WARNING signs on both
sides of the gate. For your records, take a
photograph of the completed installaƟon site.
WARNING
Wind Load Factors
Design gate panels to
accommodate for wind loads.
