Connecting Accessory Devices
4-10 SwingSmart DC Installation and Reference Manual Revision E
Manual Push-button Station
A manual push-button station controls the gate operator and opens, stops, and closes the gate. It is most often
used by a guard in a 24-hour guard station. An example of the push-button station connections on SwingSmart
is shown in Figure 4-6.
CAUTION !
Make sure the manual push-button station in within site of the gate, a distance (six foot, 1.8m
minimum) away from the gate’s moving parts, and out of reach of children.

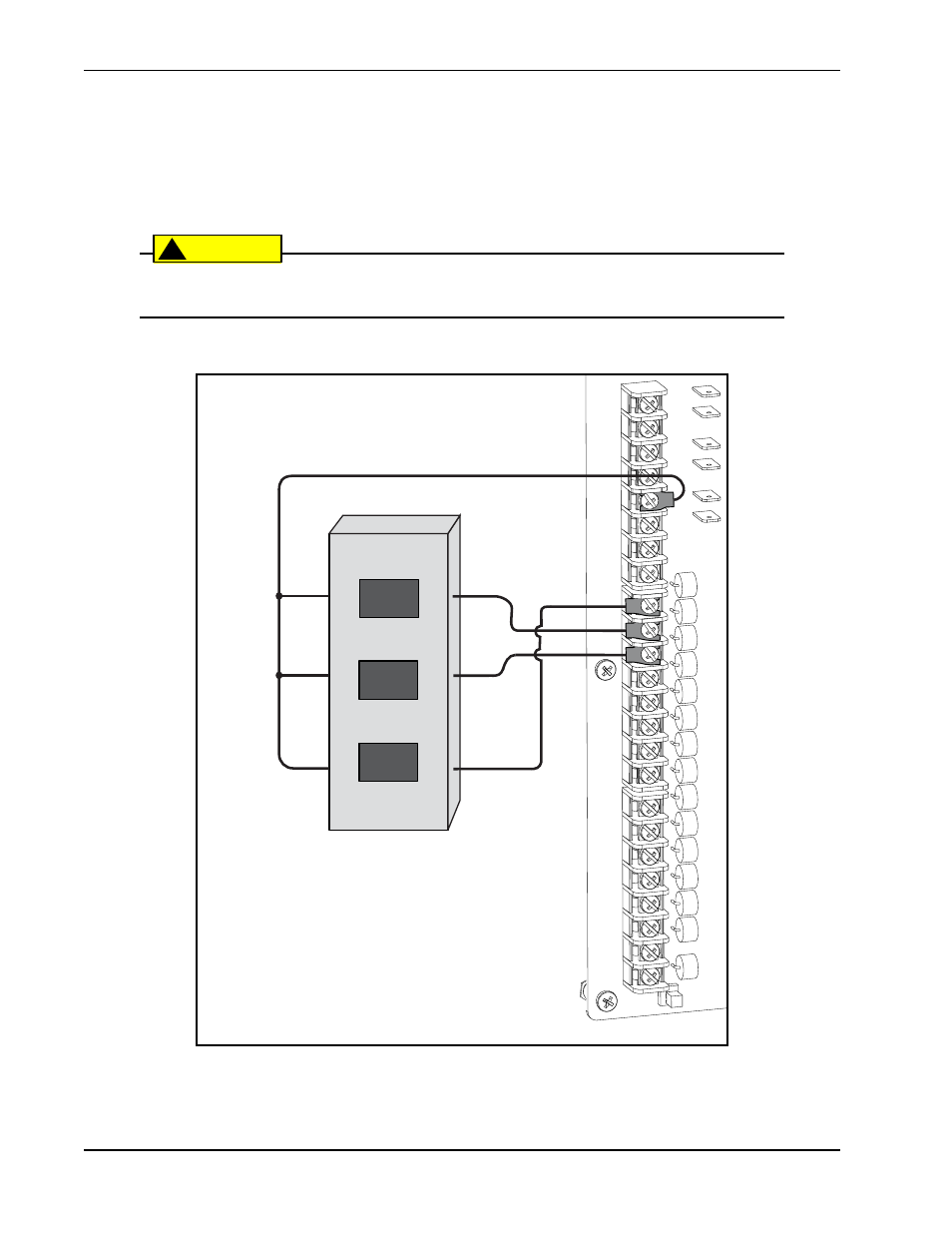

Figure 4-6. Manual Push-button Station Connection
COM
COM
COM
COM
COM
COM
COM
COM
STOP
OPEN
RADIO
CLOSE
OPEN
OPEN
PARTIAL
EYE
OPEN
EYE
CLOSE
EXIT
LOOP
BLOCK
EXIT
IN OBS
LOOP
OUT OBS
LOOP
CENTER
LOOP
EDGE
EYE
COM
+ 24 V
EMERG
OPEN
SHOW
LEDs
24VDC
24VDC
24VAC
24VAC
12VAC
12VAC
OPEN
STOP
CLOSE
Push-buƩon StaƟon
NC
NO
NO
