User Menu
3-8 SwingSmart DC Installation and Reference Manual Revision E
U
SER
M
ENU
The User Menu consists of twelve functions which can be modified using the Smart DC Controller buttons.
Refer to
Using the Smart DC Controller Buttons In Menu Mode .
To access the User Menu, take the following steps:
1. At a gate status display, press the MENU button.
Eight operator status displays scroll past and the
CLOSE TIMER display appears.
Note:To access the User Menu, the operator must be in
Run Mode . The motor cannot be engaged and the gate
cannot be moving.
2. To bypass the operator status displays and access the
User Menu, press the MENU button twice.
The CLOSE TIMER display appears.
In the pages that follow, a detailed view of the more commonly used menus is provided:
• Adjusting the Close Timer
• Setting the Time & Date
• Setting the AC Power Loss Gate Function
• Adjusting the Display Contrast
Table 3-1 on page 3-13 describes the User Menus, supplies the factory defaults, and references the hard-wire
connections.
For information on how the menu buttons function, review Using the Smart DC Controller Buttons In Menu
Mode .

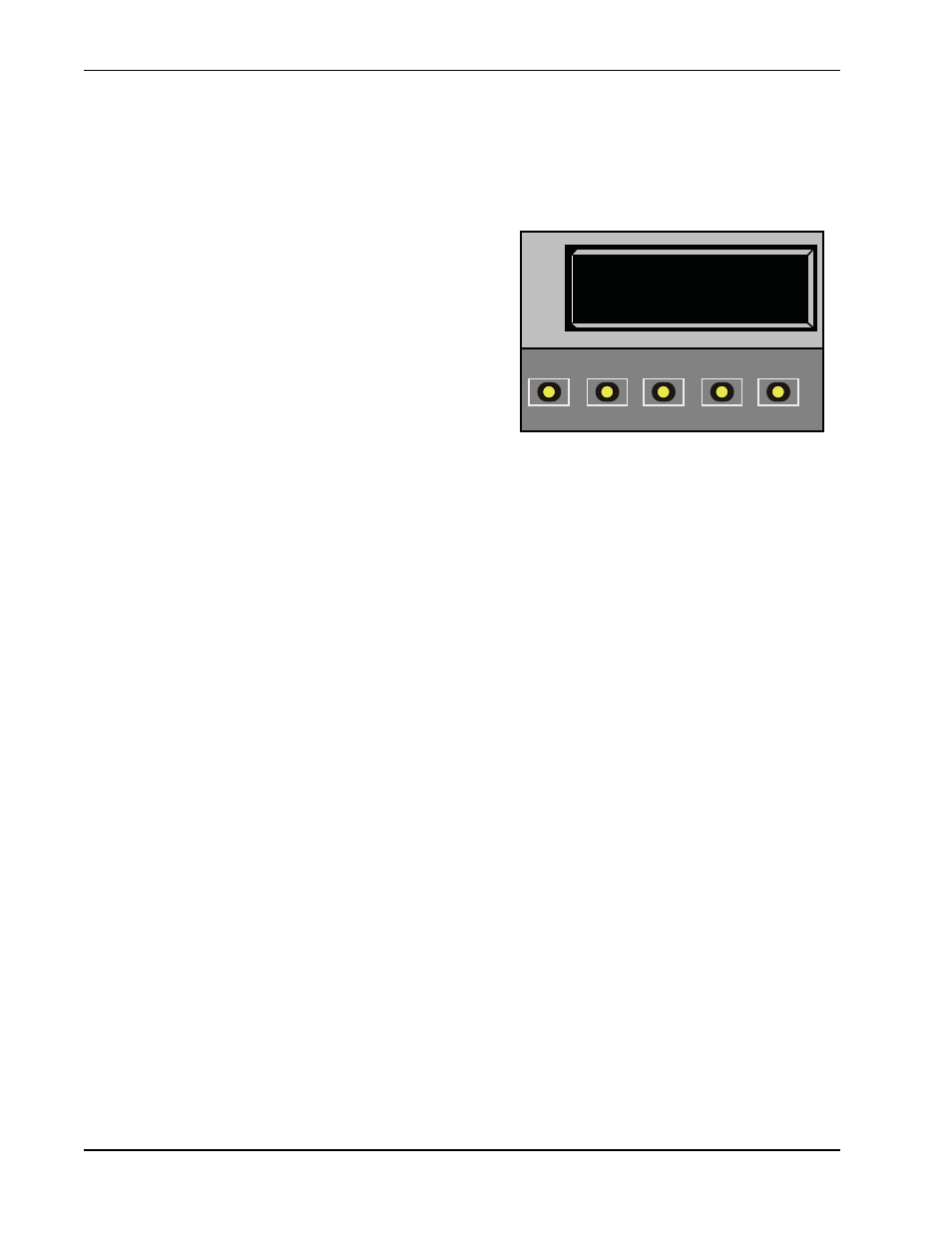

CT 0 (OFF)
CLOSE TIMER
OPEN CLOSE STOP MENU RESET
PREV NEXT SELECT
