Gate Bracket and Linkage Arms
1-8 SwingSmart DC Installation and Reference Manual Revision E
Attaching the Stub Arms

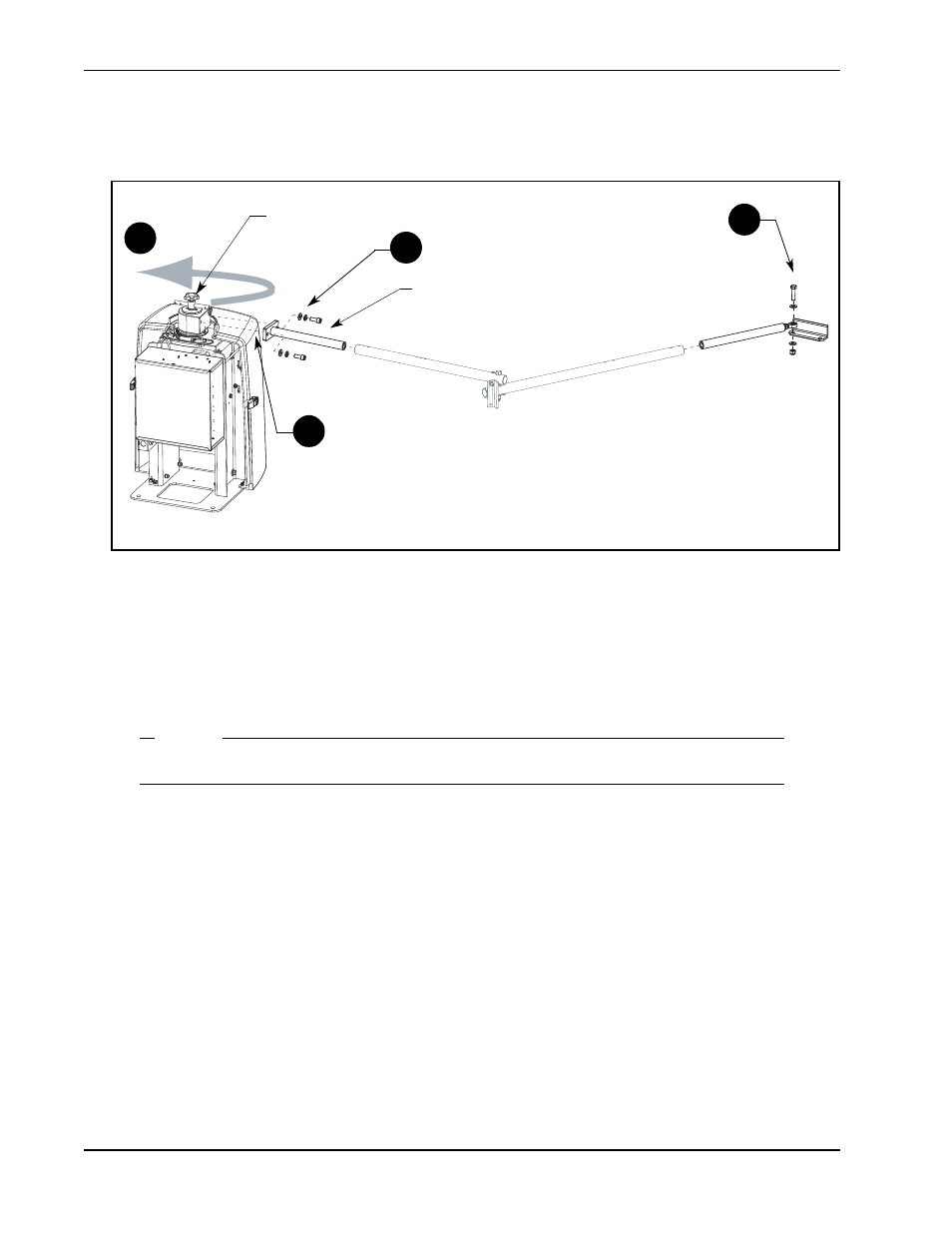

Figure 1-8.
1. Attach the swivel eye bolt to the gate bracket using the fasteners provided.
2. Remove the fasteners from the taper clamp assembly.
3. Align the stub arm and secure it to the taper clamp assembly using the fasteners removed in step 2.
4. Pull the taper handle to lengthen it. Adjust the handle so the ball detent fits into its cutout and secures the
handle length. Turn the handle counterclockwise to loosen the taper clamp. Figure 1-8.
NOTE
Do not retighten the taper clamp. It needs to remain loose for manual gate adjustments.
2
1
4
3
Taper handle
Stub arm
