Power Requirements
Revision E Bi-parting Gate Systems 5-1
Bi-parting Gate Systems
Chapter 5
Configuring two operators to be a Master and Slave pair is easy with the Smart DC Controller. There is no
need to order a special model or any adapters. The area of the board marked Dual Gate employs a 3-wire
RS-485 serial port for communication between master and slave operators.
.
Figure 5-1.
P
OWER
R
EQUIREMENTS
When installing a dual-operator system, the following must be adhered to:

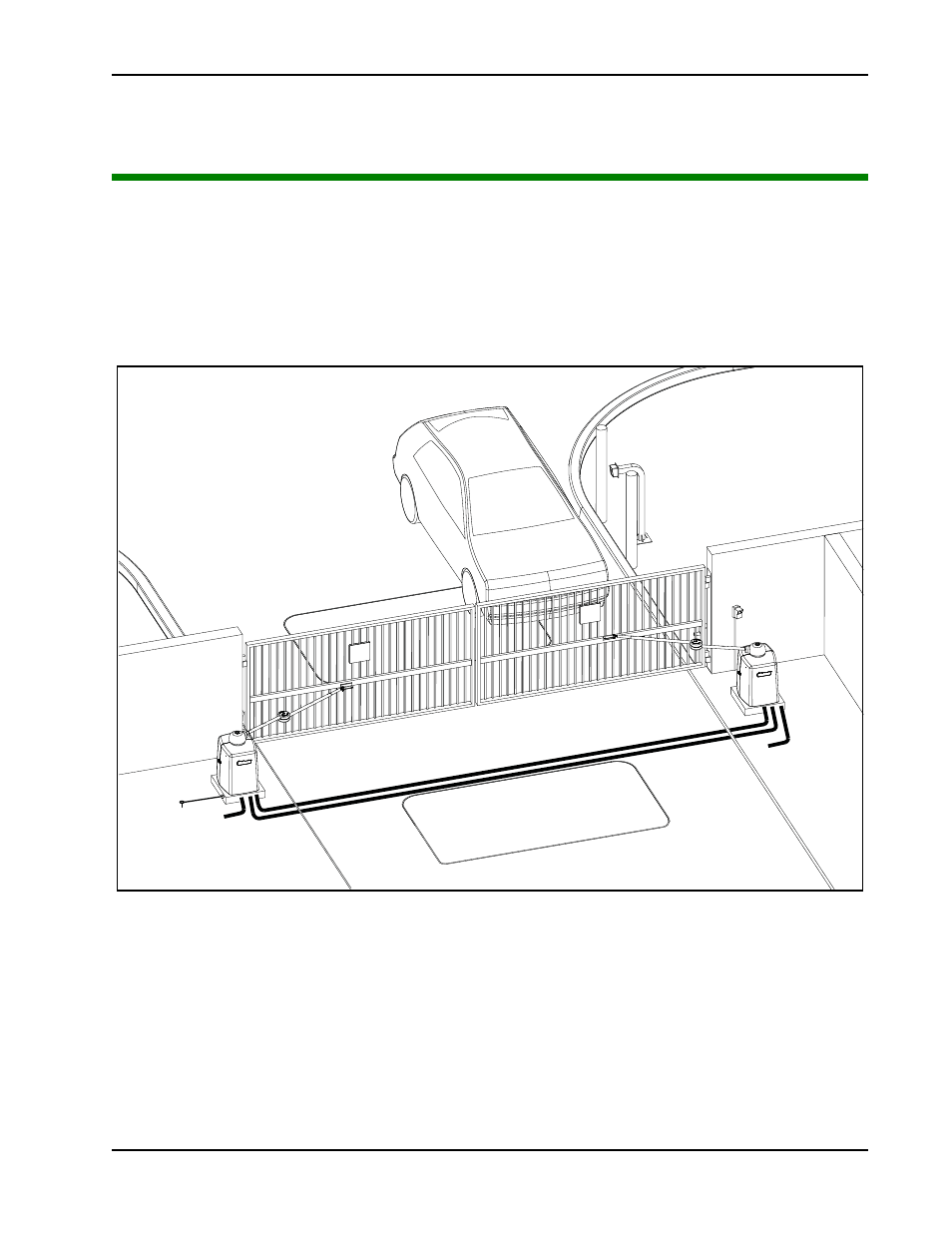

• An electrical conduit for interconnecting wires must span between the two operators. The master-slave
communication wires and any low voltage control wires must be installed in a conduit that is separate from
the high voltage power wires. Refer to Figure 5-2.
Earth
ground
Main
power in
115/230V
AC pow
er conduit (if r
equire
d)
Conduit f
or Mas
ter/Sla
ve cables (Conduit ma
y be
Conduit for
Vehicle Detector
wires
shared with low v
oltage c
ontrol wir
es)
