MCNConfig Program: Hardware Resource Window
90 68-12286-110

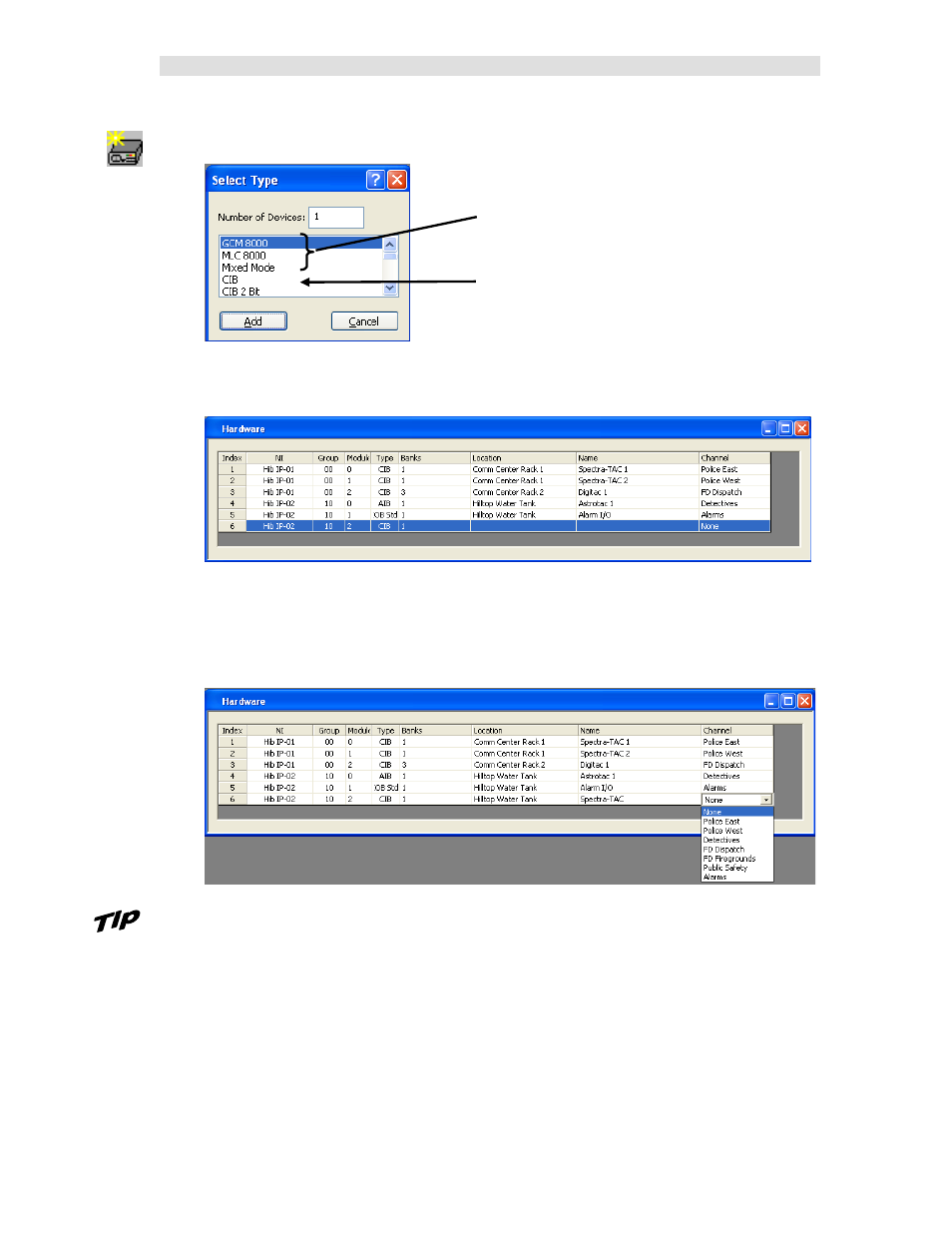

Adding a Hardware Module
Add new hardware module with the New Module button.
Select a Hardware Type and hit Add.
A new hardware module will be added to the bottom of the list. It will have the next Group &
Module number.
For legacy MCN modules, if you have more than one legacy Network Interface, select the proper one
for this module.
If this is an AIB module, enter the proper number of banks.
Enter the Location and Name.
Select a Channel from the drop--down menu
Don't see any Channels in the list? See Adding a Channel on page 92 for instructions on how to create
channels.
The first three entries are IP comparators. You can
add them here, too. The program will then add the
entries in the Network Interface window and the
Hardware window.
The legacy MCN modules appear in the list below the
IP comparators.
