MCNConfig Program: Hardware Resource Window
88 68-12286-110

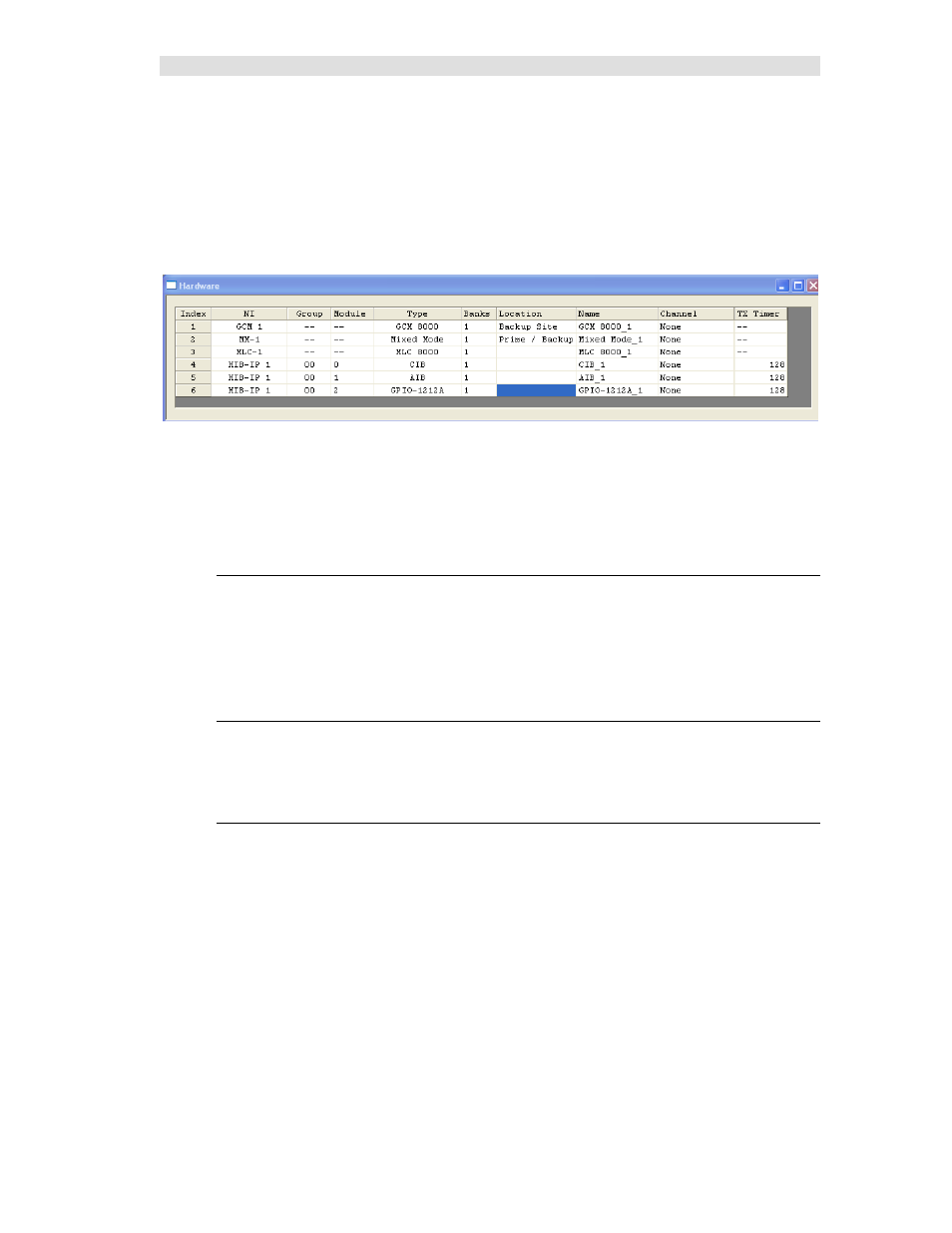

Configuring the Hardware - Hardware Resource Window
After you have added the appropriate Network Interfaces, go to the Hardware resource window to add
and edit the data for various Hardware Modules.
To get to the Hardware window, select View / Hardware from the program menu.
The Hardware window will show a list of IP Comparators and legacy MCN hardware I/O modules in the
system.
From this window, you can:
•
Add legacy MCN hardware I/O modules (CIB, AIB, GPIO modules, etc.)
•
Edit the configuration data for either IP comparators or the legacy MCN hardware modules.
The Hardware Resource Window includes the following fields:
NI
Network Interface to use for this module.
IP Comparators: This is a fixed field derived from the Network Interface window.
Legacy MCN Modules: This is a drop-down field that will let you select from the
defined Network Interfaces for this system (PCLTA, HIB-232, or HIB-IP) to use for this
MCN hardware module.
Group
IP Comparators: Not applicable
Legacy MCN Modules: MCN Group Number for this module (Hex value 00-FE)
This corresponds to the Group switch setting on the module.
Module
IP Comparators: Not applicable
Legacy MCN Modules: MCN Module Number for this module (Hex value 0-F)
This corresponds to the Module switch setting on the module.
