MCNConfig Program: Network Interface Window
84 68-12286-110

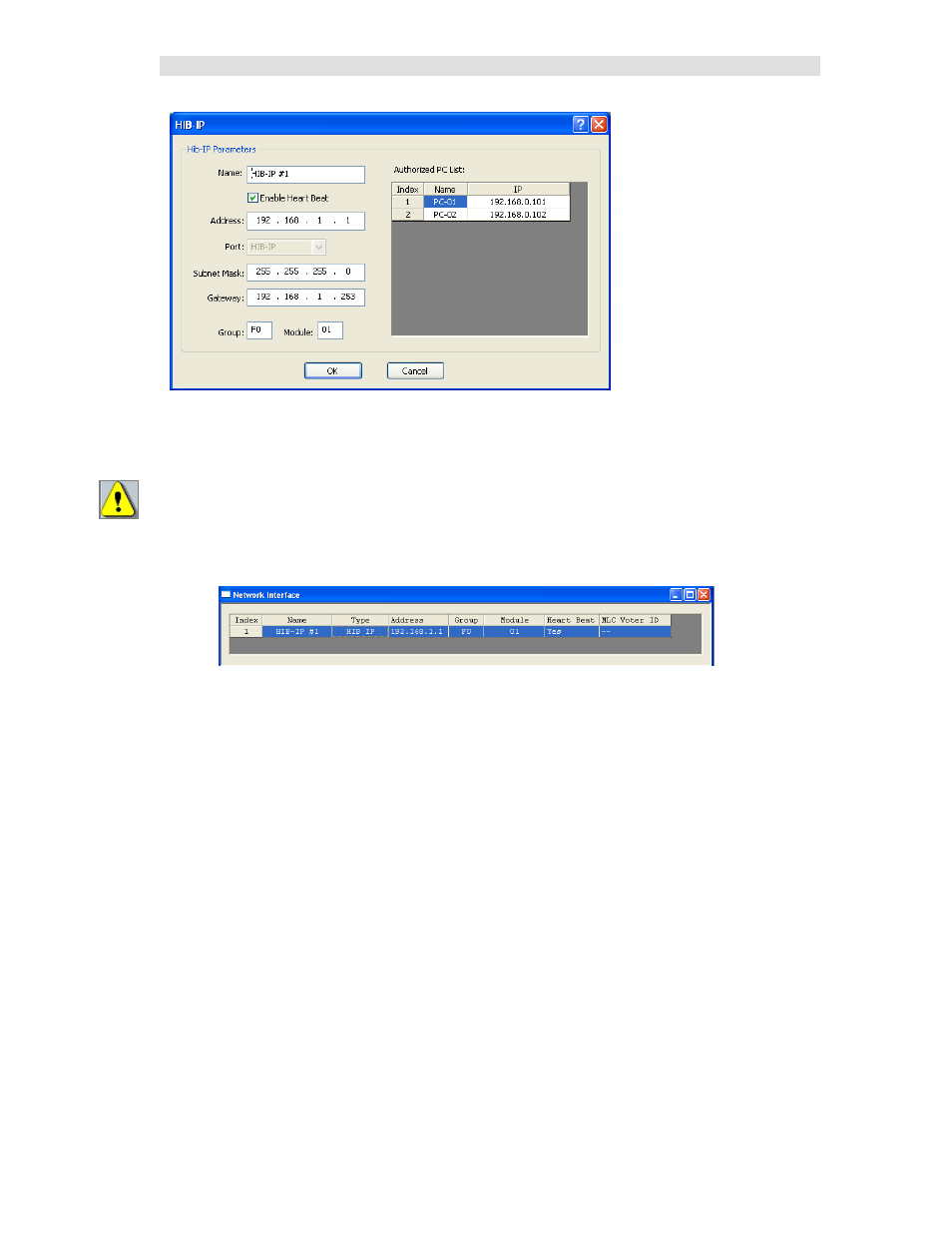

• Set up the parameters for the HIB-IP unit.
• When you are finished entering Authorized PCs, click the OK button.
Although you can enter multiple Authorized PCs in the HIB-IP configuration window, the HIB-IP can
only connect to one PC at a time. If a second PC attempts to connect to a HIB-IP at the same time (even
if it is in its Authorized PC list), it will be rejected.
The HIB-IP unit will appear in the Network Interface window.
It will then be associated with all the hardware modules (such as CIBs, AIBs, and IOBs).
The standard MCN Server 8000 software supports (4) IP comparators and (1) HIB-IP.
(Support for additional IP Comparators or HIB-IP Network Interfaces, may be added with additional
license expansion options.
