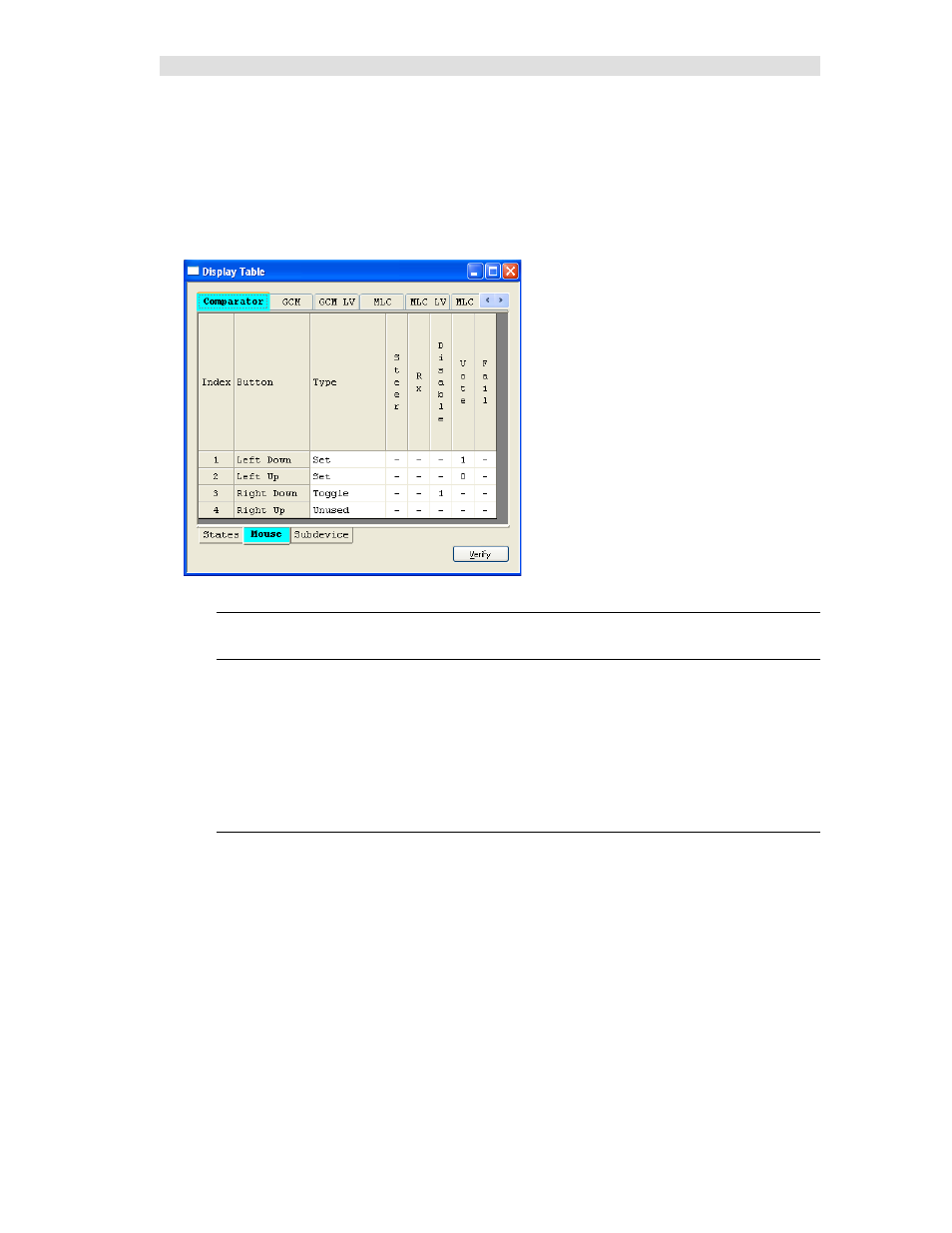

Mouse Actions Tab
Four(4) mouse button actions are defined for each Display Table:
 Left Mouse Button Down (Press)
 Left Mouse Button Up ( Release)
 Right Mouse Button Down (Press)
 Right Mouse Button Up ( Release)
Each Mouse Event Line contains the following fields:
Button
Describes the mouse event
Type
This is the action that will be taken when this mouse event occurs.
Choices are:
-Unused This Mouse Event does not generate an I/O event
-Set This Mouse Event explicitly sets defined bits to the states shown.
("0"bits are set to 0, "1" bits are set to 1, "-" bits are left alone)
-Toggle This Mouse Event toggles the state of all the bits marked with a "1".
Bits
The bit names are taken from the States tab. They can be either "0", "1" or "-".
See the Type field for description of how each of these bits is handled.
Note that the bits that appear here may not all be output (control) bits, due to the actual device
being controlled. In the example above, the only valid output bits are Vote and Disable.
Editing the fields
Type To edit, click in the field.
Select the type with the Drop-Down menu.
Bits To edit, click in the bit value field.
You can either enter a value (0,1,-) or use the drop-down list.
You may need to widen the columns to see the drop-down list properly.
