Advanced Configuration
Configuring Master-Sub Comparator with Multi-Dependency
184
68-12286-110
Multidependency will let you display this system as two virtual comparators:
• Virtual Comparator A using the Sub Comparators and Master A and
• Virtual Comparator B using the Sub Comparators and Master B.
The previous discussion under the Multi-Bit Mask section on page 176 will be used to build the Display
Tables for this system.
First we need to get the Vote bits from Master A and Master B passed down to the Sub Comparators.

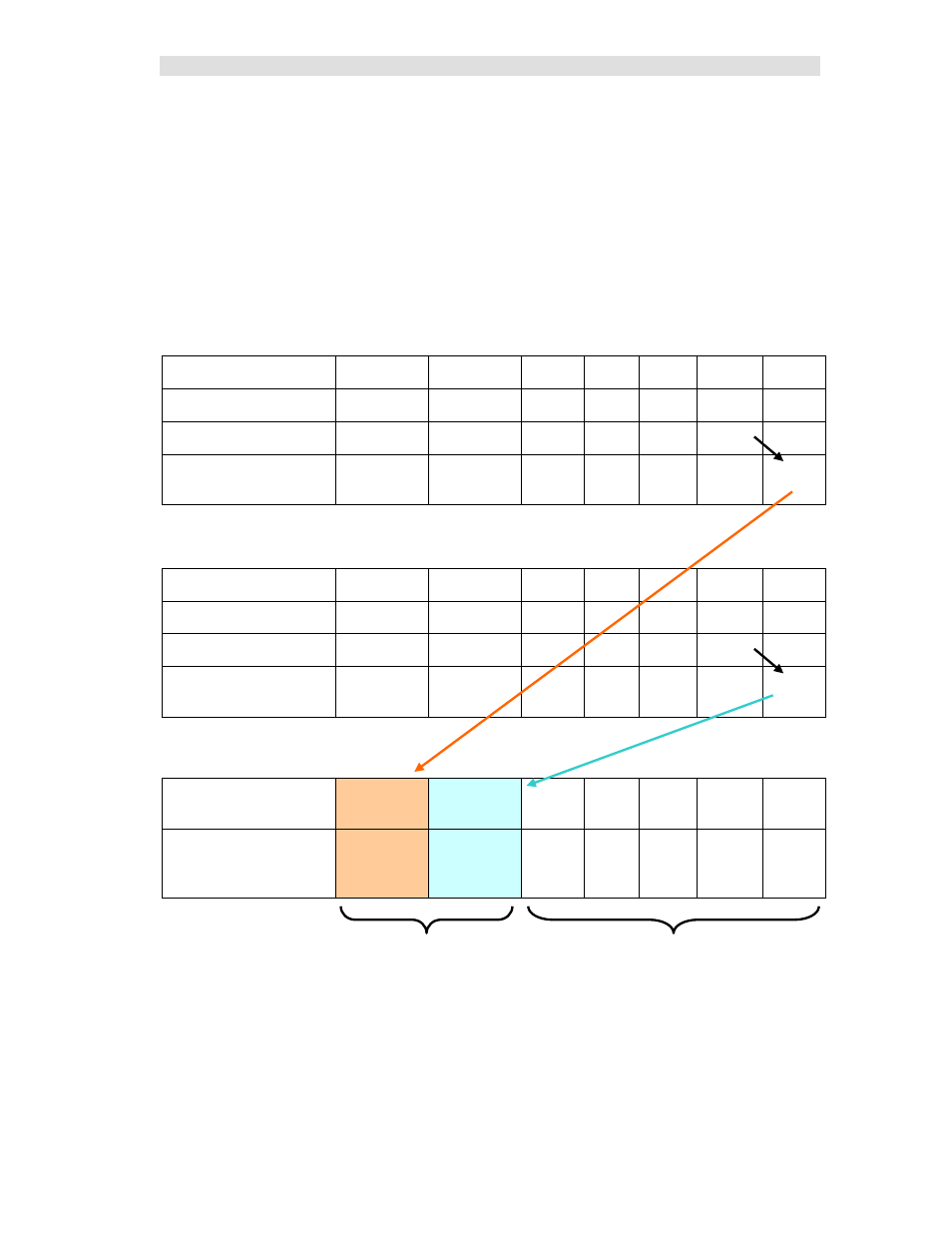

The diagram below shows that the Master Vote bit will be masked and passed to the SubDevice. The
Master A Vote will be nudged 5 bits, and the Master B Vote will be nudged 6 bits.
Master Comparator B
Master B Bits
Steer
Rx
Dis
Vote
Fail
Mask
0
0
0
1
0
Masked
Vote
Compressed &
Shifted
Vote
Master Comparator A
Master A Bits
Steer
Rx
Dis
Vote
Fail
Mask
0
0
0
1
0
Masked
Vote
Compressed &
Shifted
Vote
Sub Comparators
Master A Nudged (5)
Master B Nudged (6)
Master B
Vote
Master A
Vote
Sub Comparator Bits
Master B
Vote
(Inherited)
Master A
Vote
(Inherited)
Steer
Rx
Dis
Vote
Fail
Inherited bits
"Native" bits from Sub Comparator CIB
