Advanced Configuration Configuring Triggered Output Actions
193 68-12286-110
Building a New Triggered Output Type

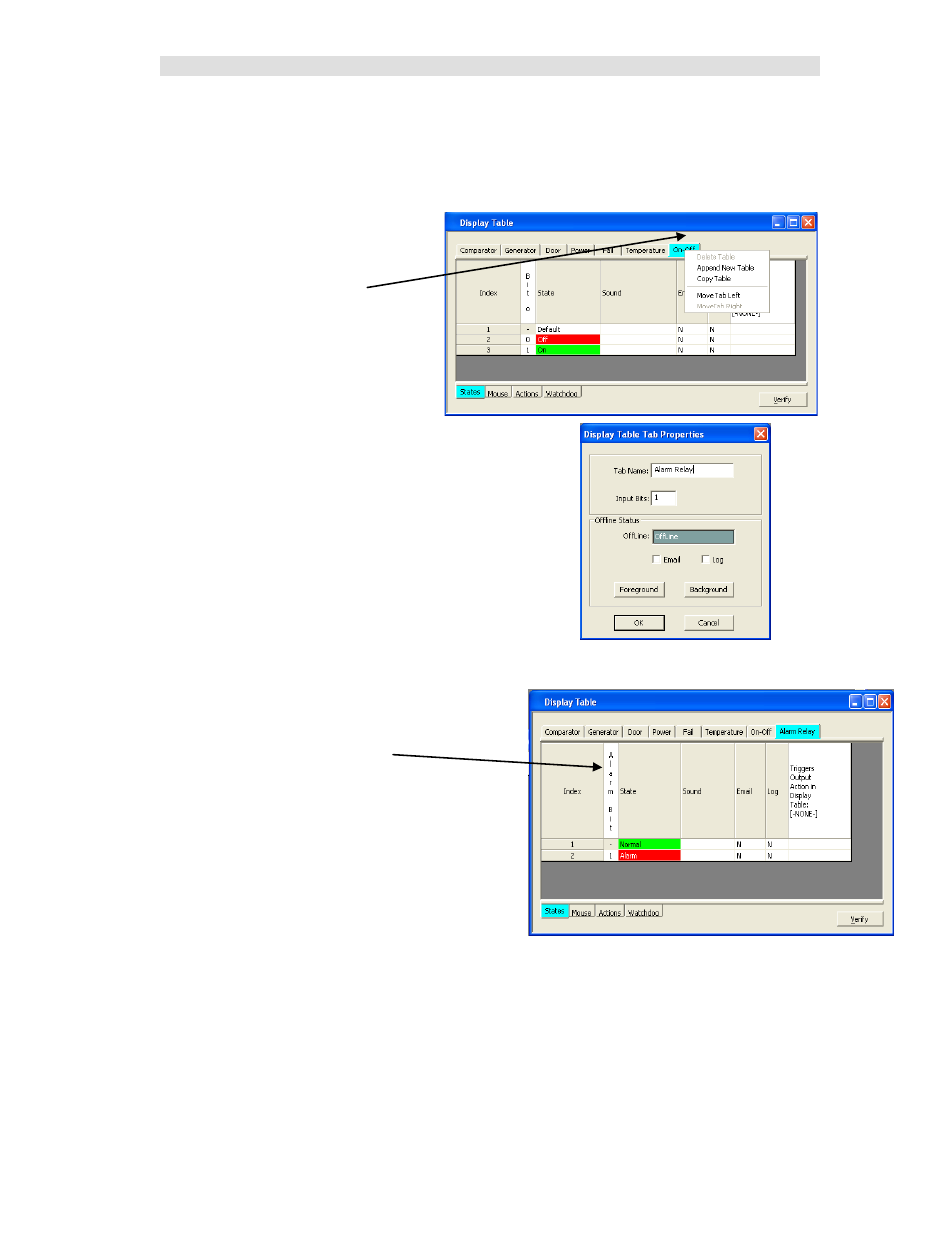

New Triggered Output Types are built just like normal Display Tables.
1. Start in the Display Table Window.
2. Right-Click on the top Display Table tabs and select
Append New Table.
3. Enter the Triggered Output Type (Display Table)
in the Tab Name field.
Set up the number of bits in the
Input Bits field.
Hit OK.
4. Select the States tab on the bottom of the
window.
Enter the Bit Names
Enter the State values, texts and colors
(Add new states by right-clicking and selecting
Append.)
Enable logging if desired.
Do not enter anything in the
Triggers Output Action column. (This is an
output that receives a trigger.)
