Advanced Configuration Configuring Master-Sub Comparator with Multi-Dependency
185 68-12286-110
To accomplish the above, set up the following parameters:
• Sub Comparator Display Table(s) with slots for Master Vote A & B
• Master A Display Table with Vote Bit Nudge = 5
• Master B Display Table with Vote Bit Nudge = 6
• Master A Comparator Receiver slot Sub Devices:
Sub Comparators
• Master B Comparator Receiver slot Sub Devices:
Sub Comparators
Composite Sub Comparator Display Table

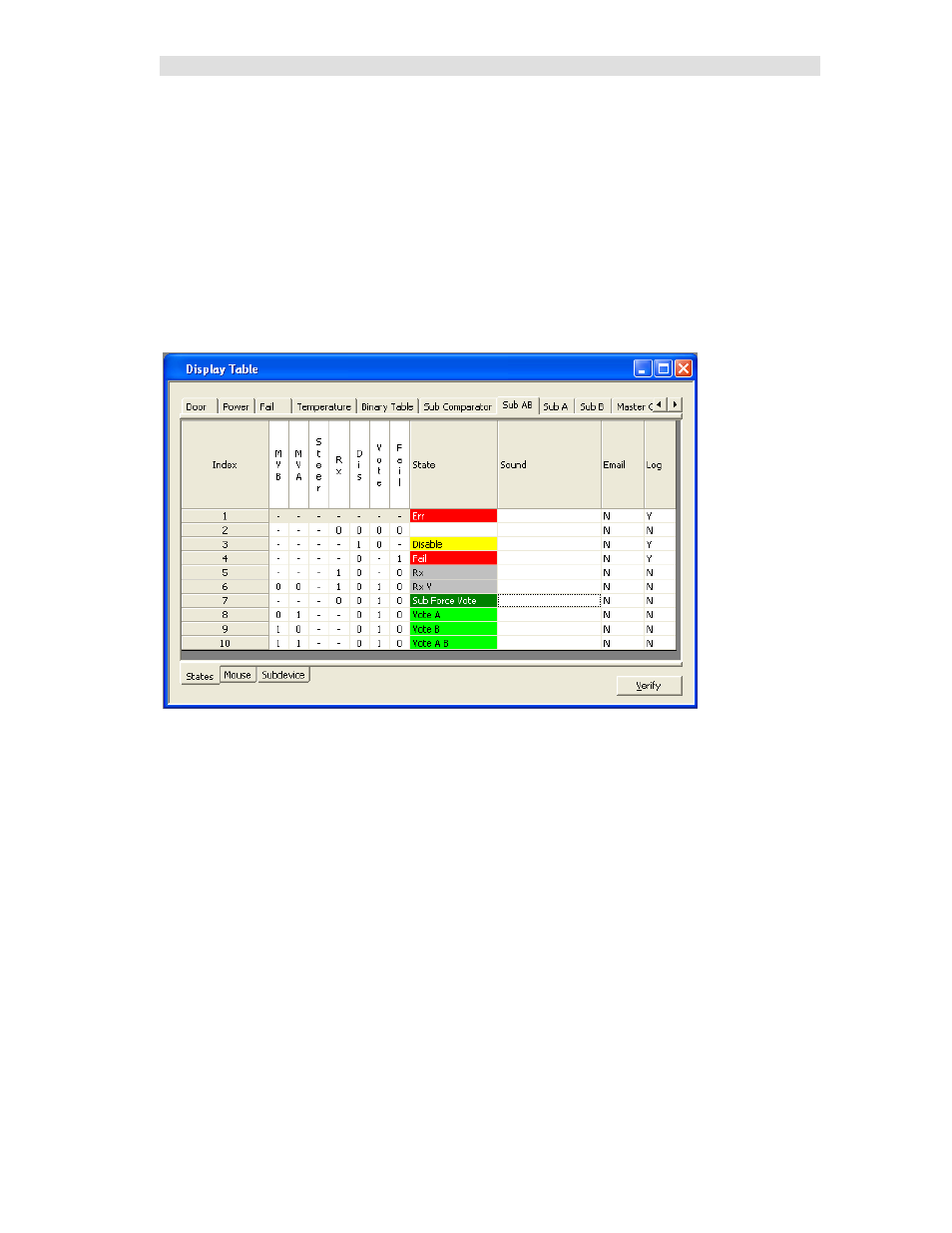

A Composite Sub Comparator display table can be built as shown below:
This can be used for somewhat of an equipment-centric view, but with added information about whether
or not this sub comparator is also voted by the master comparator(s). This display might be useful for a
technician.
