Advanced Configuration Configuring Master-Sub Comparator Systems
169 68-12286-110
Implementing the Virtual Comparators
To implement either of the above “Virtual Comparator” displays, the following steps should be taken:
1. Enable Master-Sub features of the MCNRCD for Windows software.
Setup the Network Interface, Channels, Hardware, and Receivers windows as instructed earlier
in this manual
Assign Display Tables for the Master and Sub Comparator receivers and
Define the SubDevices for each channel of a Master Comparator.
Design the Display Window for the Virtual Comparator.
Optionally, if you want to customize the Master or Sub-Comparator display tables:
Customizing Display Tables for Master and Sub Comparators.
Each of these steps will be explained in detail in the following sections.
Enable Master-Sub features

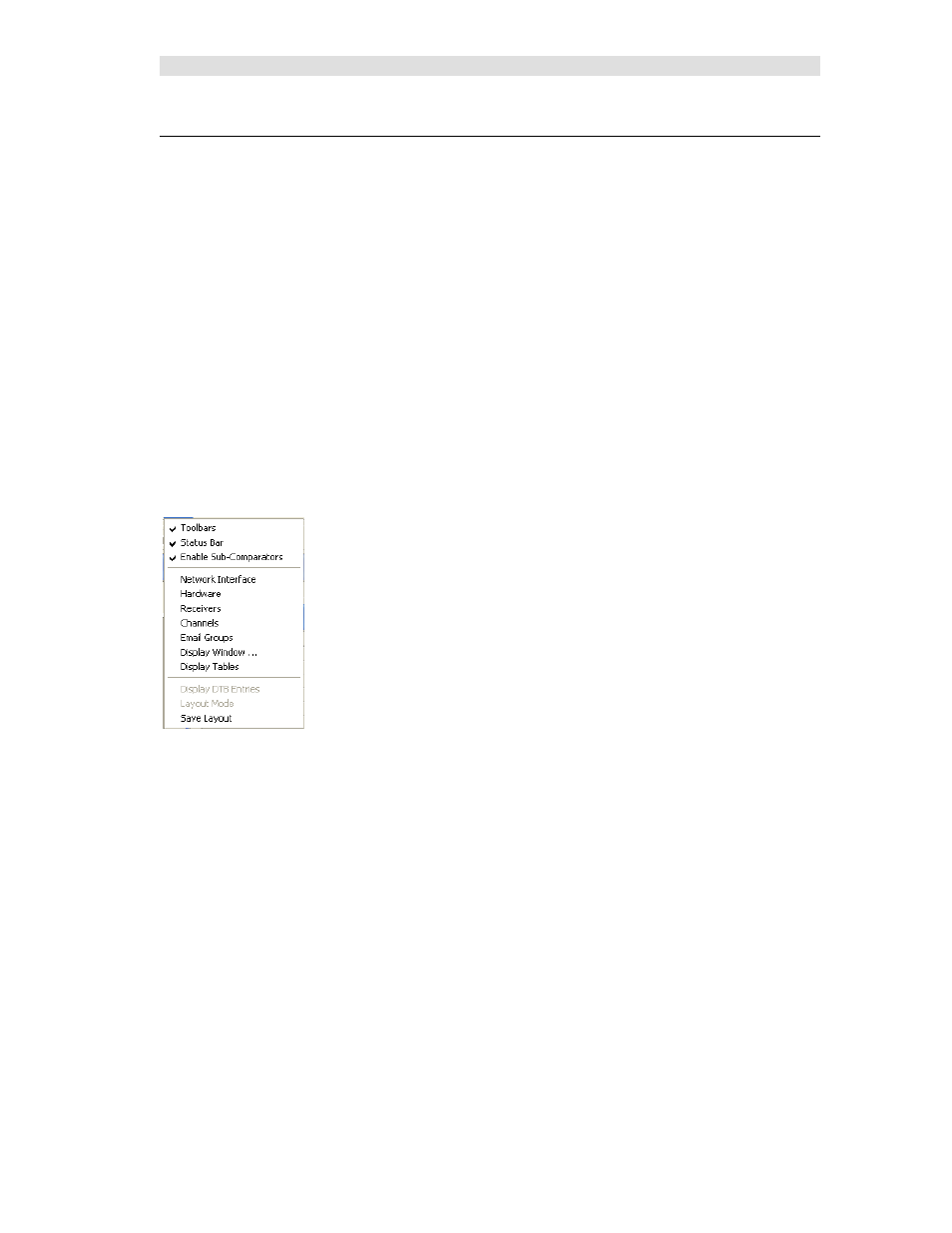

From the View menu, click on Enable Sub-Comparators to display a “check mark” next to this menu
item as shown below. This provides access to Master-Sub features of the MCNRCD for Windows
software.
