CTI Products MCN Server 8000 User Manual
Page 199
Advanced Configuration
Configuring Triggered Output Actions
199
68-12286-110

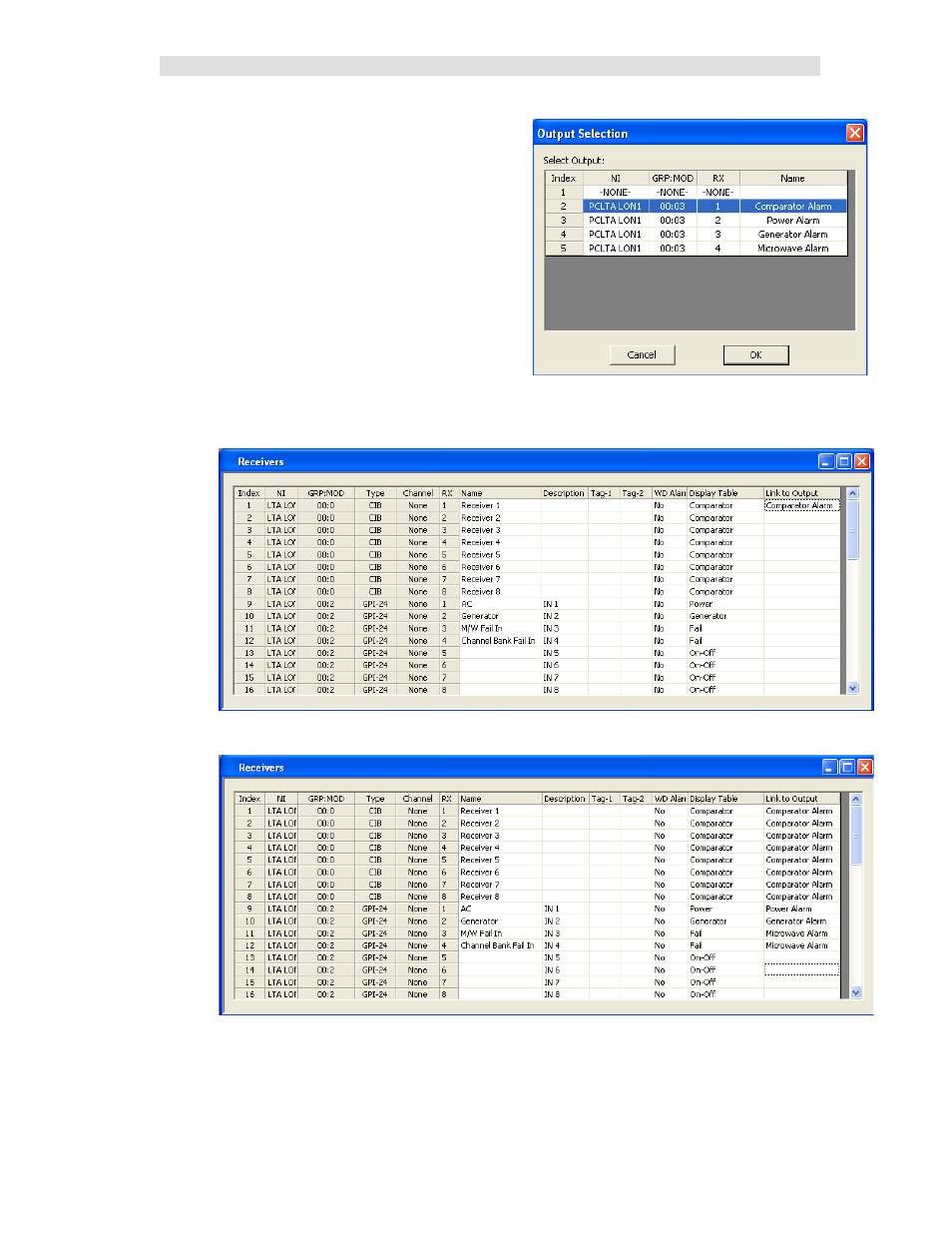

2. An Output Selection window will appear.
In this system, we have 4 output alarms set up.
Select the proper Output Point.
(This is a receiver input to a comparator, so we
will choose "Comparator Alarm".
Hit OK
3. The Output Point will appear in the Link To Output field
4. Repeat the above to select the appropriate Output Points for the remaining Input Points.
Note that we have a number of Receivers in the comparator feeding the Comparator Alarm.
Likewise, both the Microwave Fail and Channel Bank Fail feed the Microwave Alarm.
We have now configured the Input to Output Link.
