MCNConfig Program: Network Interface Window
86 68-12286-110
Programming HIB-IP and HIB-IP 8000 Units
You must use MCNConfig program to download the parameters to the HIB-IP unit before you can use it.
1. Be sure all the HIB-IP and Authorized PC parameters have been entered into the PC
system configuration files as described above
2. IP traffic can interrupt programming or viewing the data on a HIB-IP unit.
Remove IP traffic by disconnecting the Ethernet cable from the 10Base-T port on the rear
of the HIB-IP unit.
3. Connect a Null Modem cable (CTI # 89-11314) between the PC and
the Async Serial Programming connector on the HIB-IP.
Use of different cables may result in inconsistent or improper
programming and viewing of HIB-IP data. See the HIB-IP manual
for the cable pinout.

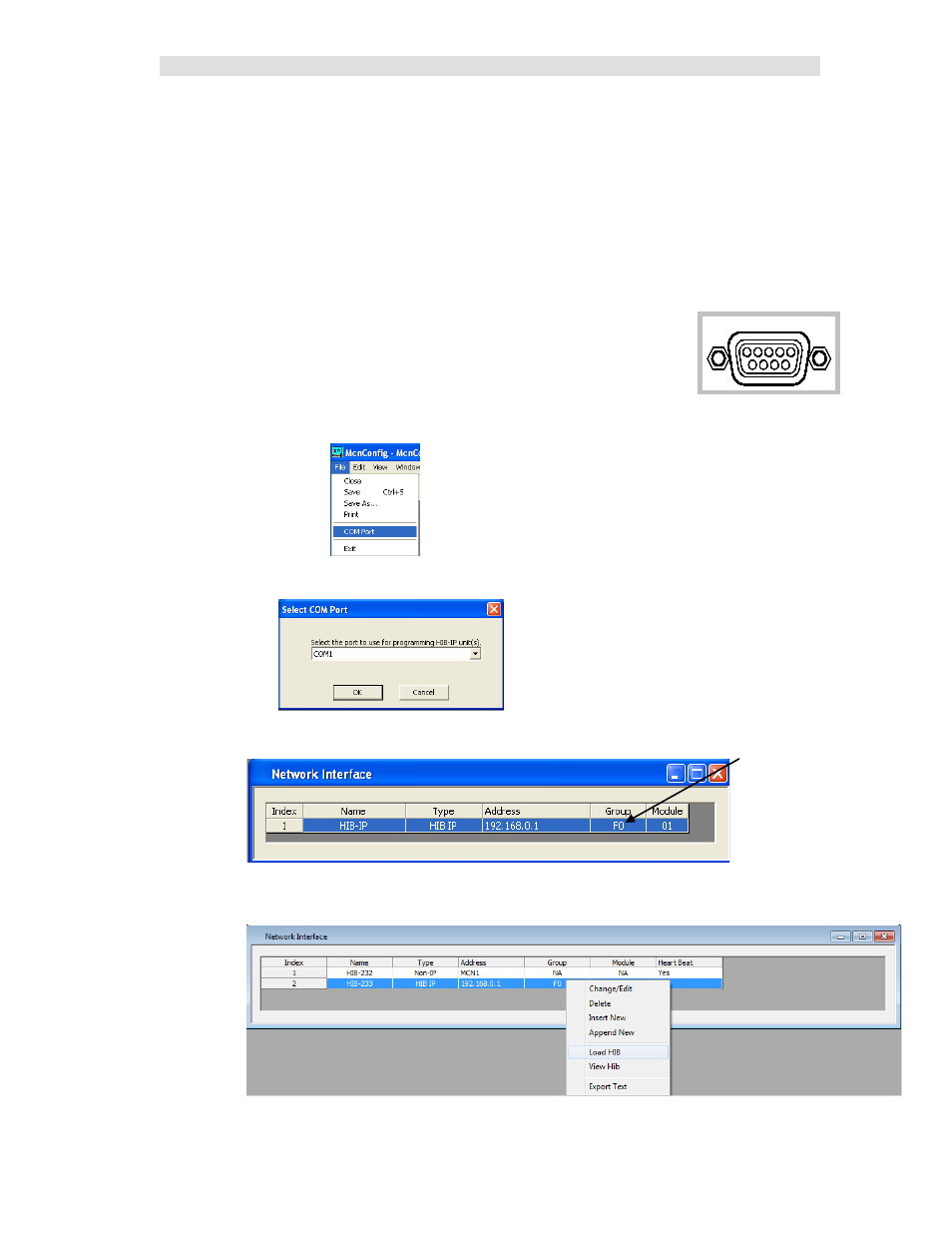

4. Go the File menu and select COM Port:
5. Select the proper COM Port and hit OK
.
6. Go to the Network Interfaces window and select the proper HIB-IP unit.
7. Right-click on the HIB-IP unit and select "Load HIB" from the pop-up window.
1 2 3 4
5
9 8 7 6
ASYNC
Right-Click here
on the HIB-IP
