MCNConfig Program: Network Interface Window
81 68-12286-110
Adding a Network Interface – HIB-IP
Note: If you are not using HIB-IP modules in this system, skip this section and go to Configuring the
Hardware - Hardware Resource Window Page 88.
When you start to build a new system, the MCNConfig program will look in the registry to determine
which Network Interface you have selected. If you have set up a Non-IP Network Interface (such as a
PCLTA, or a Non-Dial-Up HIB-232) in the HWSetup program, the MCNConfig program will find it and
select it as the Network Interface for this system.

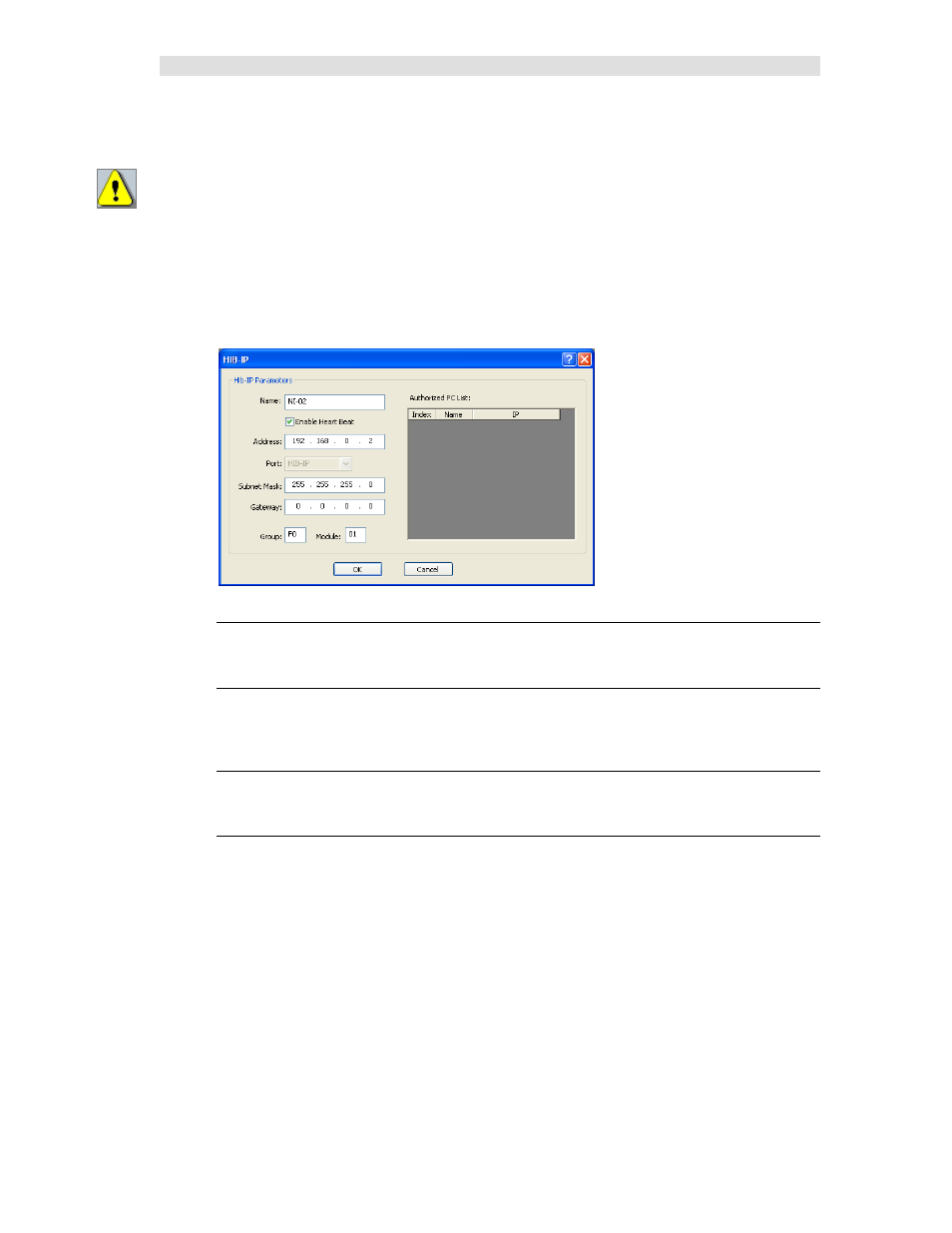

If you have selected a HIB-IP in the HW Setup program, the MCNConfig program will open the
Network Interface Properties window.
Enter the appropriate parameters for the HIB-IP unit:
Name
Give a name to the HIB-IP unit. This is the name that you will refer to when you add hardware
modules to the system.
Enable Heartbeat
This enables the heartbeat sent to the legacy MCN modules. It may be disabled on all but one
PC if you have multiple PCs communication with the MCN network should be checked on one
server in the system. If you have multiple serve
Address
Enter a valid Class A, B, or C IP address for this unit.
See details in the HIB-IP Hardware Reference Manual.
Subnet Mask
Enter the Subnet Mask for this IP address.
See details in the HIB-IP Hardware Reference Manual.
The HIB-IP Subnet Mask cannot be less restrictive than the following standard IP Class
Subnet Masks
Class First Octet Standard Subnet Size Standard Subnet Mask
A 1-127 16,777,214 255.0.0.0
B 128-191 65,543 255.255.0.0
C 192-223 253 255.255.255.0
D 224-239 Multicast – Do not use.
E 240-255 Experimental – Do not use.
The HIB-IP units can accept a subnet mask that is more restrictive (more 1's set in the Subnet
Mask), but not less restrictive.
