Advanced Configuration Configuring Master-Sub Comparator Systems
174 68-12286-110
Master Comparator Display Table
States Tab

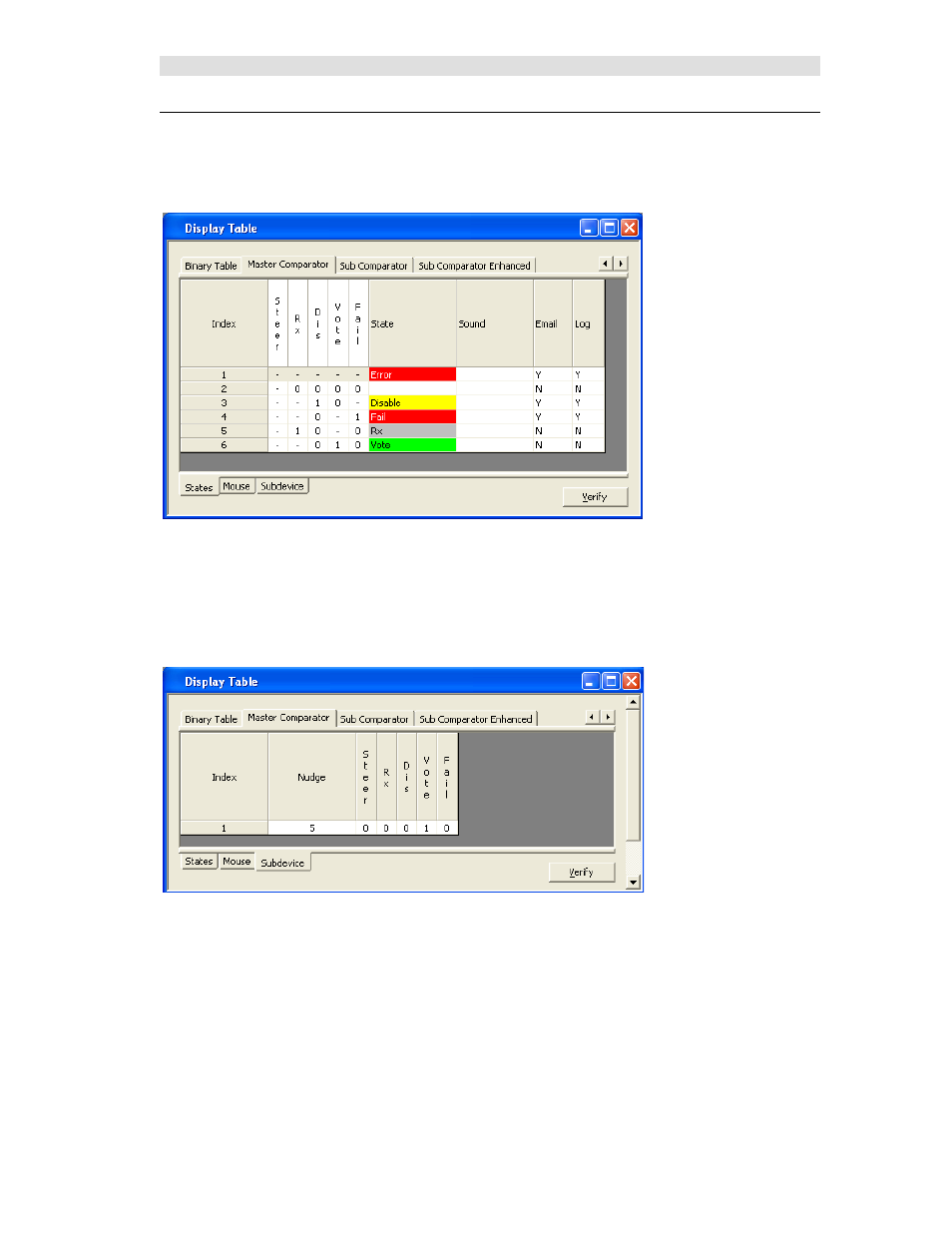

The Master Comparator display table States tab is shown below:
This Master Comparator States table has a basic difference from the basic Comparator display table:
• The Steer bit is a Don't Care (we're not using Transmitter Steering in this system)
SubDevice Tab
The SubDevice tab has been added in the Master-Sub Comparator option. The Master Comparator
display table SubDevice tab is shown below:
The SubDevice tab for the Master Comparator has the following items that are used to pass the Master
Vote down to the Sub Comparator:
• Bit Mask for the Vote bit is a 1. This is the bit that will be passed on to the Sub Comparator
devices.
• The Nudge field is set to 5. This tells the program how far to move the inherited bit(s) in the
SubDevice. This number will depend on the SubDevice.
