State table verify – CTI Products MCN Server 8000 User Manual
Page 159
Advanced Configuration Topics
Working with Display Tables
159
68-12286-110
State Table Verify
Since the entries in the Display Table are free-format (and also allow Don't Care bits), it's easy
to build a Display table that doesn't work as you thought it would. You can therefore verify how
the MCN software will interpret the table by clicking the Verify button on the bottom right

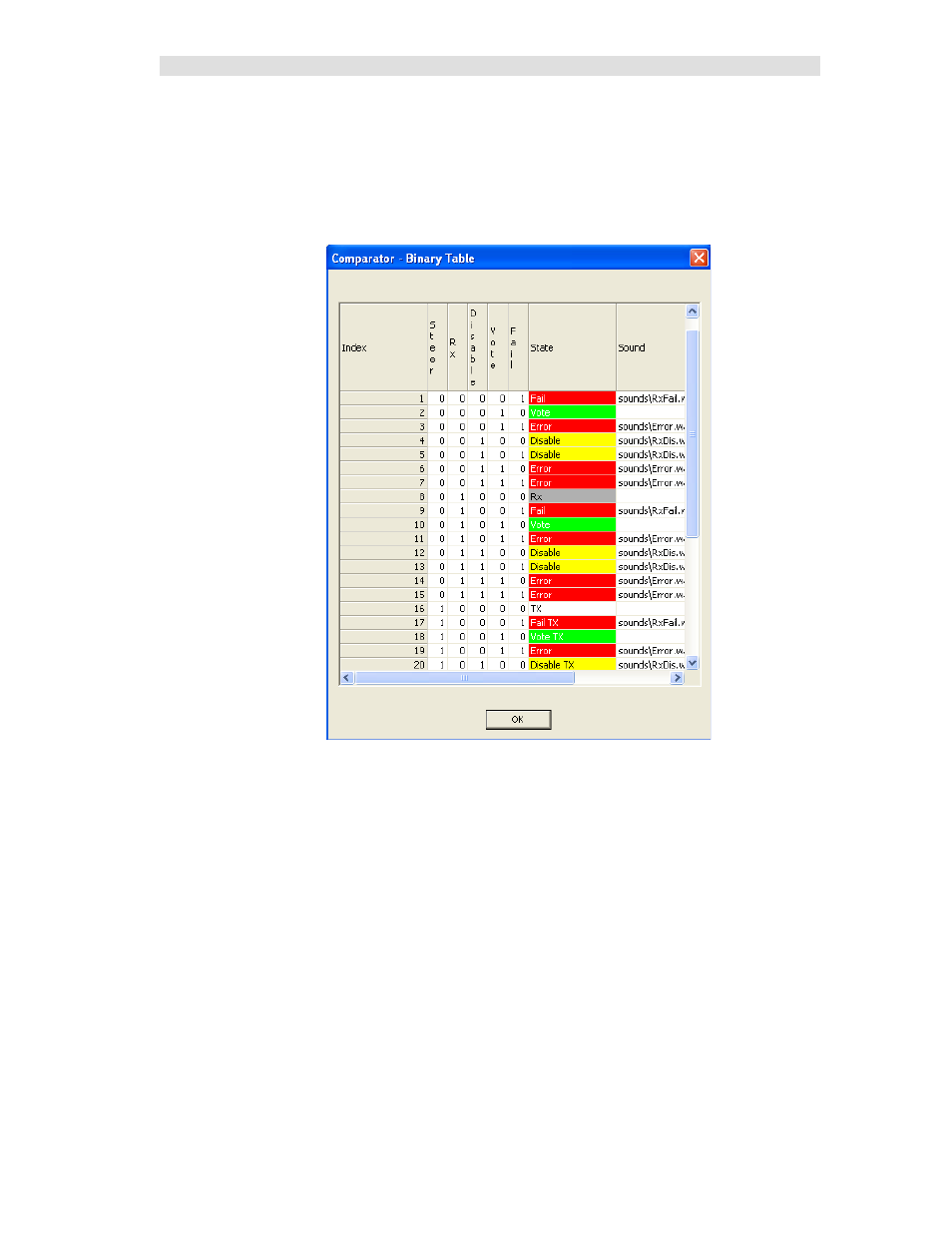

corner of the Display Table window. This will bring up a Display Table Verification window;
which will show the states that result from each possible binary input value.
