Advanced Configuration Configuring Master-Sub Comparator Systems
165 68-12286-110
Configuring Master-Sub Comparator Systems
Configuration Overview
MCNRCD for Windows can handle systems in which comparators are arranged as Master Comparators
and Sub Comparators. A group of comparators that are in a Master-Sub configuration can be depicted as

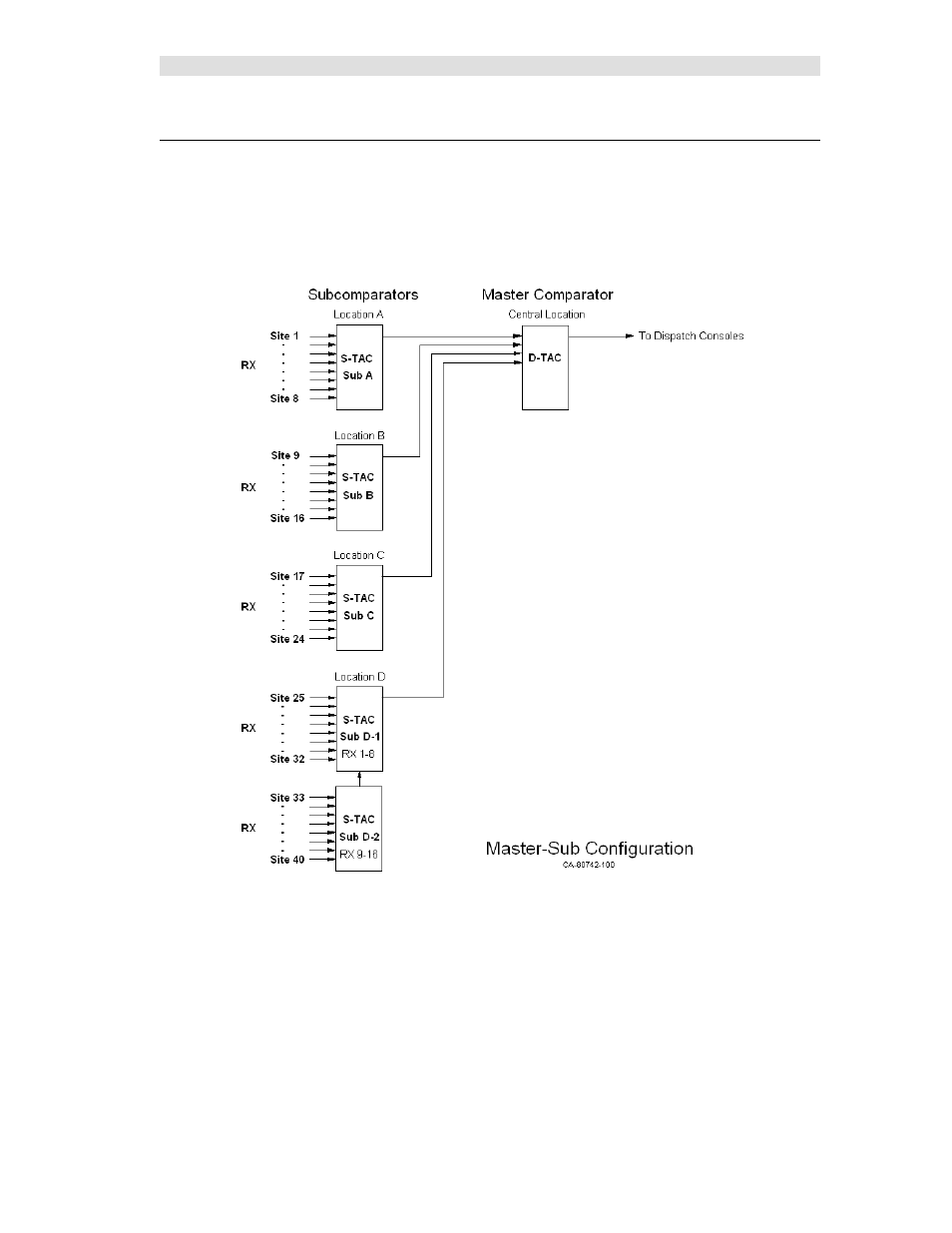

in the following diagram.
In this case, eight receivers at Location A are fed into Sub Comparator A. Likewise, eight receivers at
Location B are fed into Sub Comparator B, and additional locations may have comparators with their
own receivers. The selected audio from each of these locations is fed to the Master Comparator at the
Central Location. Finally, the selected audio from the Master Comparator is sent to the Dispatch
Consoles. Each one of the comparator chassis would have a CIB module connected to it.
