General Purpose Interface Modules

for MCN™ Monitoring and Control Systems

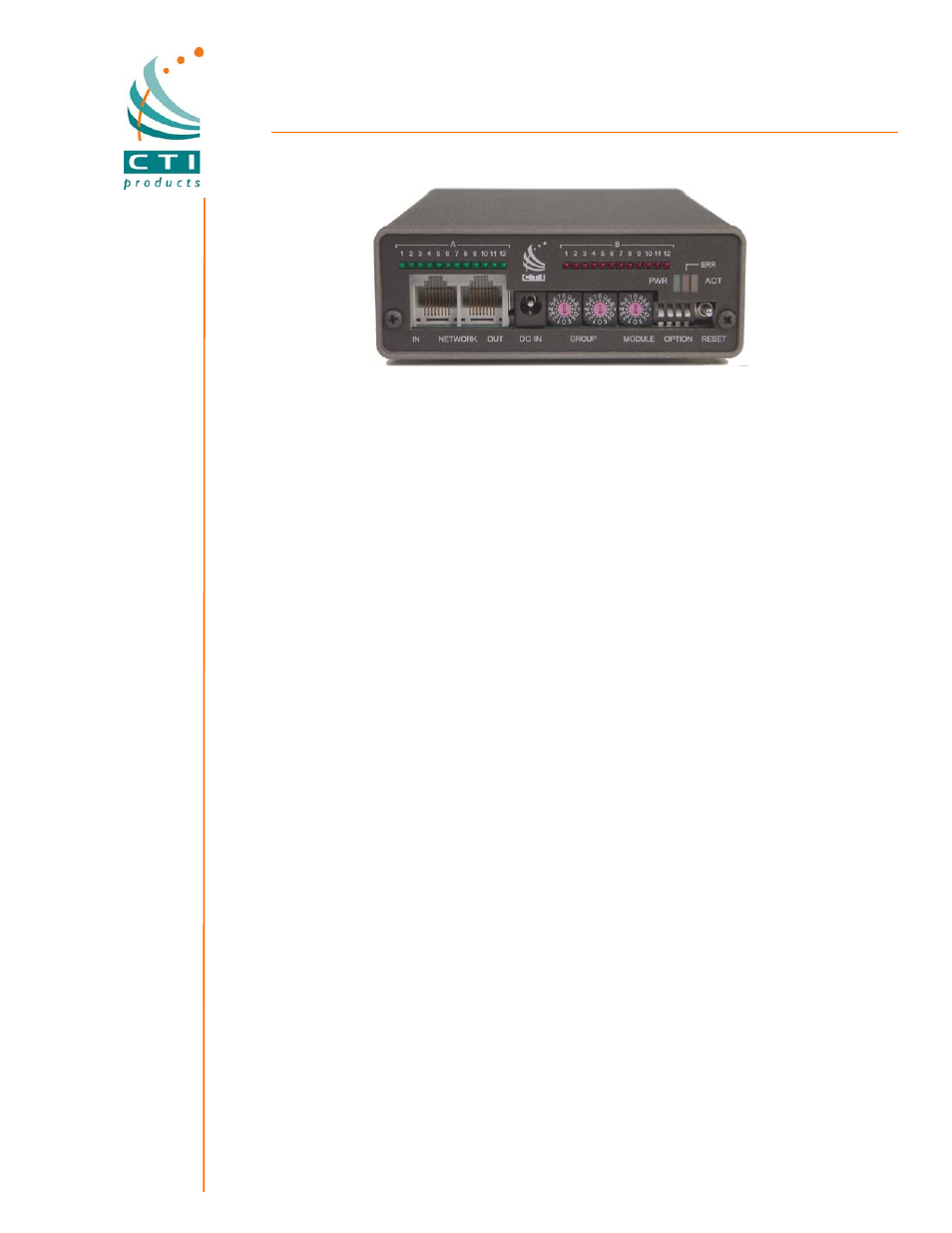

GPIO-1212A Shown

Introduction

The General Purpose Input/Output Modules
are part of CTI Products’ MCN™ Monitoring
and Control Network. Versions are available
with combinations of opto-isolated inputs, SSR
(Solid-State Relay) outputs, or mechanical
relay outputs. They can be used to monitor
and control a wide range of devices at remote
sites, including:

• Generators

Doors / Intrusion alarms

• Door

Locks

• Gate

Controls

• Power

Fail

• Temperature

Alarms

Microwave / T1 Link Status

• Tower

Lights

Inputs
Inputs are optically-isolated and accept voltage
inputs of 12 - 24 VAC/VDC (nominal).

Outputs
Several output types are available:

SSR (Solid-State Relay) with SPST
(Form A)

Mechanical relay with SPDT (Form C)

Magnetically latched relay with SPDT
(Form C)

Latching or momentary outputs are
controlled in the MCNRCD software on
the PC.

PC Display

The PC display features real-time monitoring
of inputs. Outputs are controlled with a mouse
or keyboard. Input/Output names and screen
positions are user- configurable

User defined error conditions from Inputs can
be logged to the screen, disk, or printer to
provide an audit trail for easier problem
resolution.

System Options

The following are some of the MCN system
options available to work with the GPIO
module:

Quad Mounting Rack for mounting 4
GPIO module or other size A MCN
modules

CTI Products, Inc.

1211 West Sharon Road

Cincinnati, Ohio 45240

USA

phone

+1.513.595.5900

fax

+1.513.595.5983

e-mail

[email protected]

www.ctiproducts.com

AC Power supplies

DC Power Cables

Network cables and terminators

HIB Host Interface Modules, CIB
Comparator Interface Modules, PCLTA
Modules, and MCN Remote
Comparator Display Software

• Routers/Repeaters, System Extenders
