Interfacing to IP Comparators MLC 8000 Comparator
44 68-12286-110
MLC 8000 Analog Comparator Interfacing
The MLC 8000 Analog Comparator can also handle up to 64 receivers, connected over IP, but the
linking between the MLC 8000 Analog Comparator and the MCN Server 8000 system is handled
differently from the GCM 8000.
The MLC 8000 Analog Comparator is made up of two types of units:
•
VGU MLC 8000 Analog Comparator (which connects to the console)
•
AGU MLC 8000 Subsite Link Converter (which connects to the BRs)
We need to know information from both types of units
Information needed about the MLC 8000 Analog Comparator
The information we need to know about the MLC 8000 Analog Comparator to ether into the MCN
Server 8000 System Data Files is:
•
VGU IP Address Entered into the GCM 8000 Hardware Configuration window
•
Voter ID Entered into the GCM 8000 Hardware Configuration window
•
AGU BR Port ID For each of the BRs in the system
Entered in the MLC ID field for the receiver in the Receiver window
•
AGU BR Name Receiver name for each BR in the system
Entered in the Name field for the receiver in the Receiver window
MLC 8000 Channel Cluster Tree

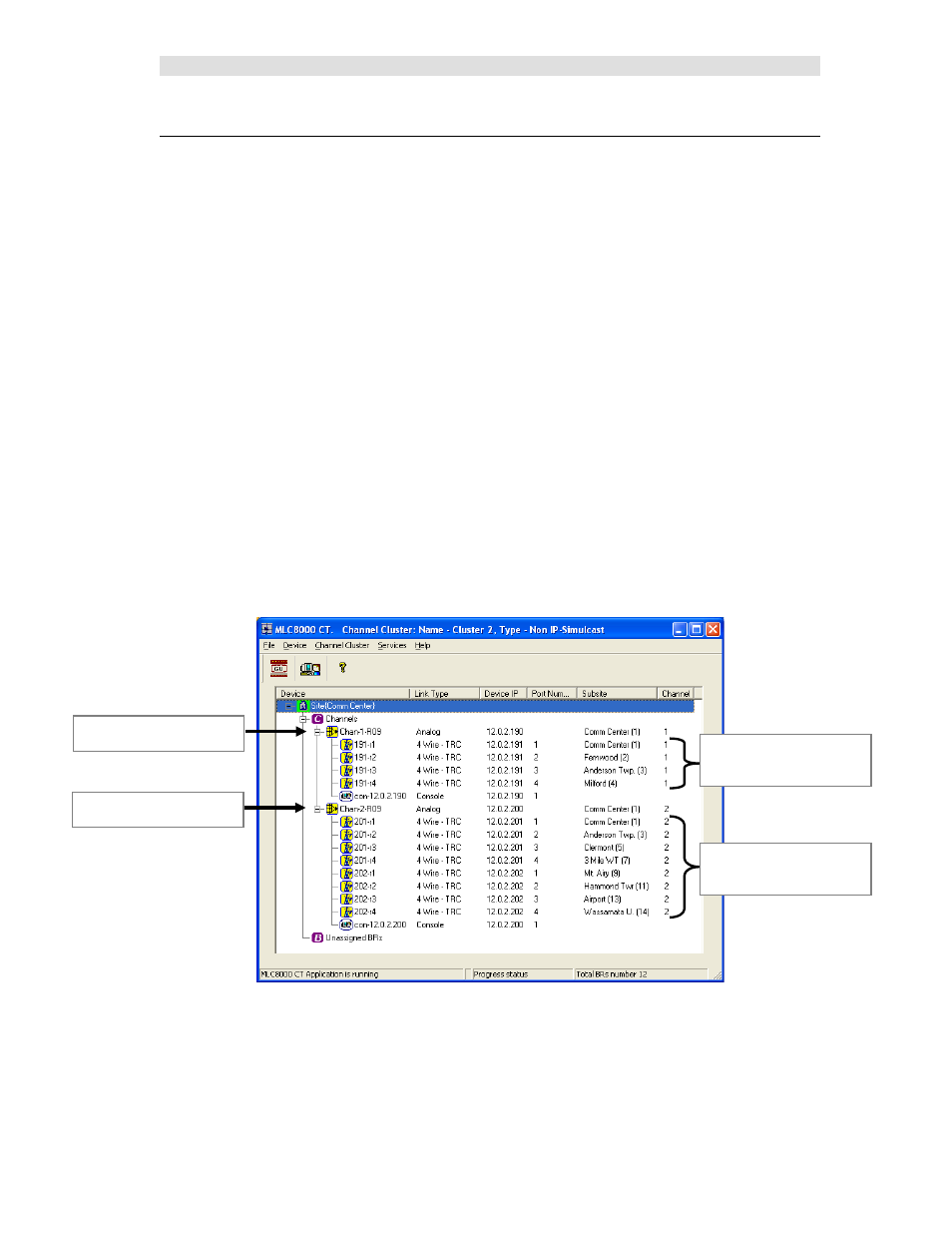

Figure 3 shows the Channel Cluster Tree in the MLC 8000 CT (Configuration Tool) software.
Figure 3 MMC Channel Cluster Tree in the MLC 8000 CT Software
This Channel Cluster shown in Figure 3 includes two comparators:
•
Channel 1: 4 BRs (Receivers)
•
Channel 2: 8 BRs ( Receivers)
BRs – Receivers
(AGU Ports) Chan 2
BRs – Receivers
(AGU Ports) Chan 1
Voter (VGU) Chan 1
Voter (VGU) Chan 2
