Advanced Configuration Configuring Master-Sub Comparator Systems
179 68-12286-110

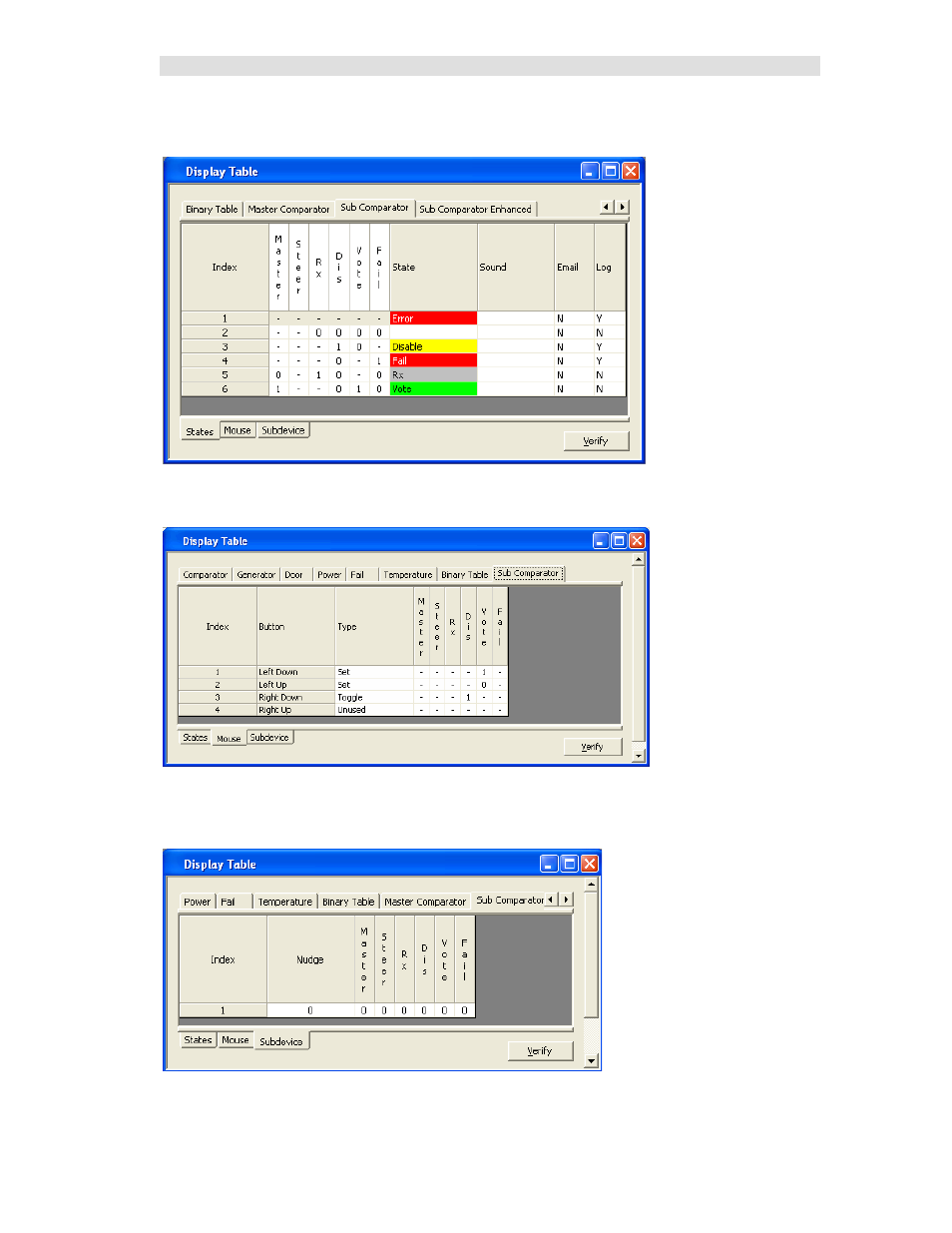

For our example of four Sub Comparators feeding into a Master Comparator, the States tab for a new
“Sub Comparator” device may look like the following.
Mouse Tab
Next, the Mouse tab for this “Sub Comparator” display table should be modified to appear as follows.
SubDevice Tab
The Sub Comparator display table should have all bits set to "0" since we are not passing bits down from
the Sub Comparator to a lower level device.
