Advanced Configuration Configuring Triggered Output Actions
197 68-12286-110

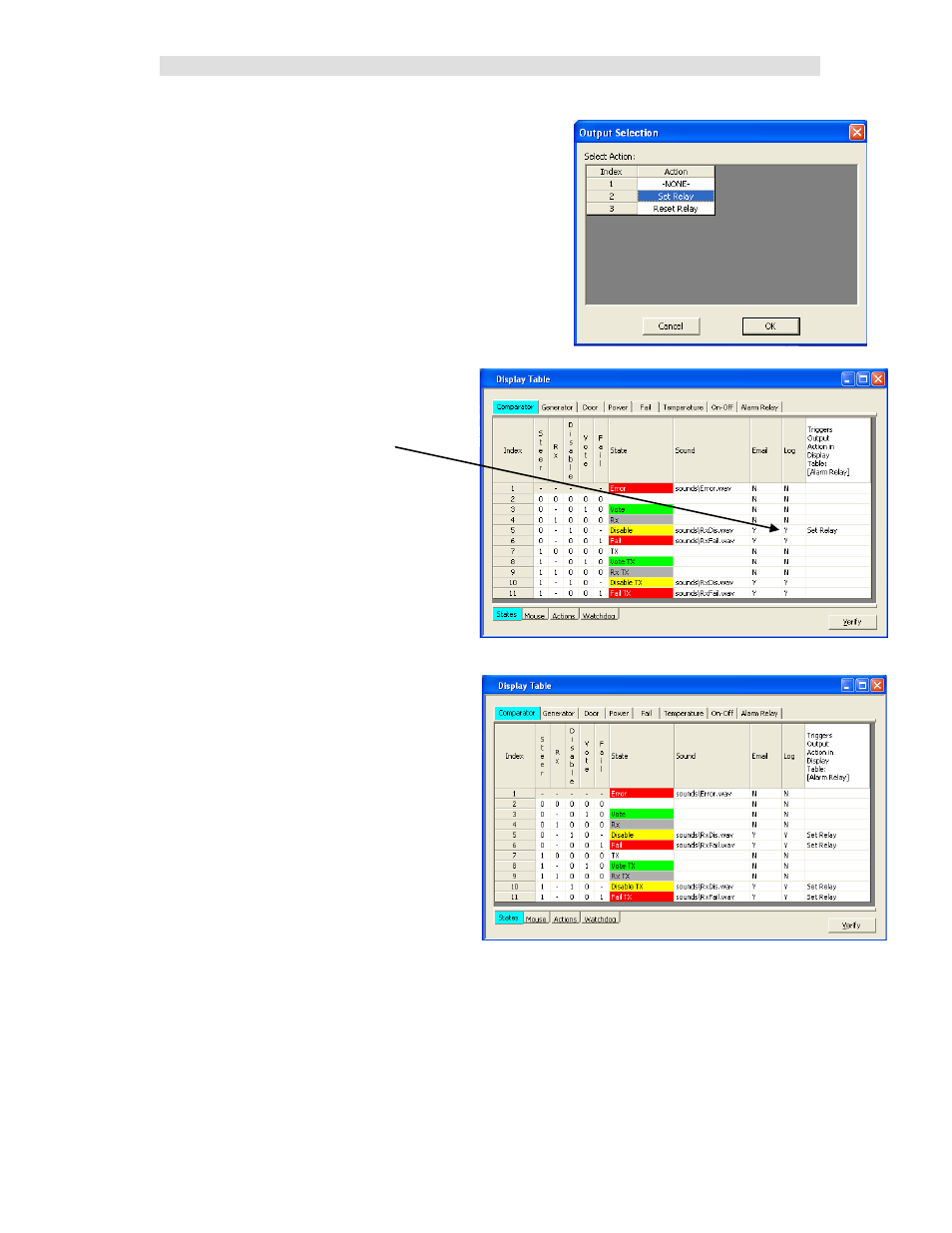

4. The Actions from the selected Output Display Table
will be displayed.
Select the desired Output Action
Hit OK.
5. The Output Action will be displayed in
the far right column
.
6. Repeat the above steps for each of the
states in the Input Device Table that
you want to trigger an Output Action.
In this example, we just set up triggers
for the Set Relay output action. (We
will manually reset the alarm relay.)
You could use one or more input states
to trigger the Reset Relay action if
required.
This completes the definition of a Trigger.
You can add triggers to other Input Display Tables as required.
