CTI Products MCN Server 8000 User Manual
Page 113
Building Screens:
Display Windows
113
68-12286-110

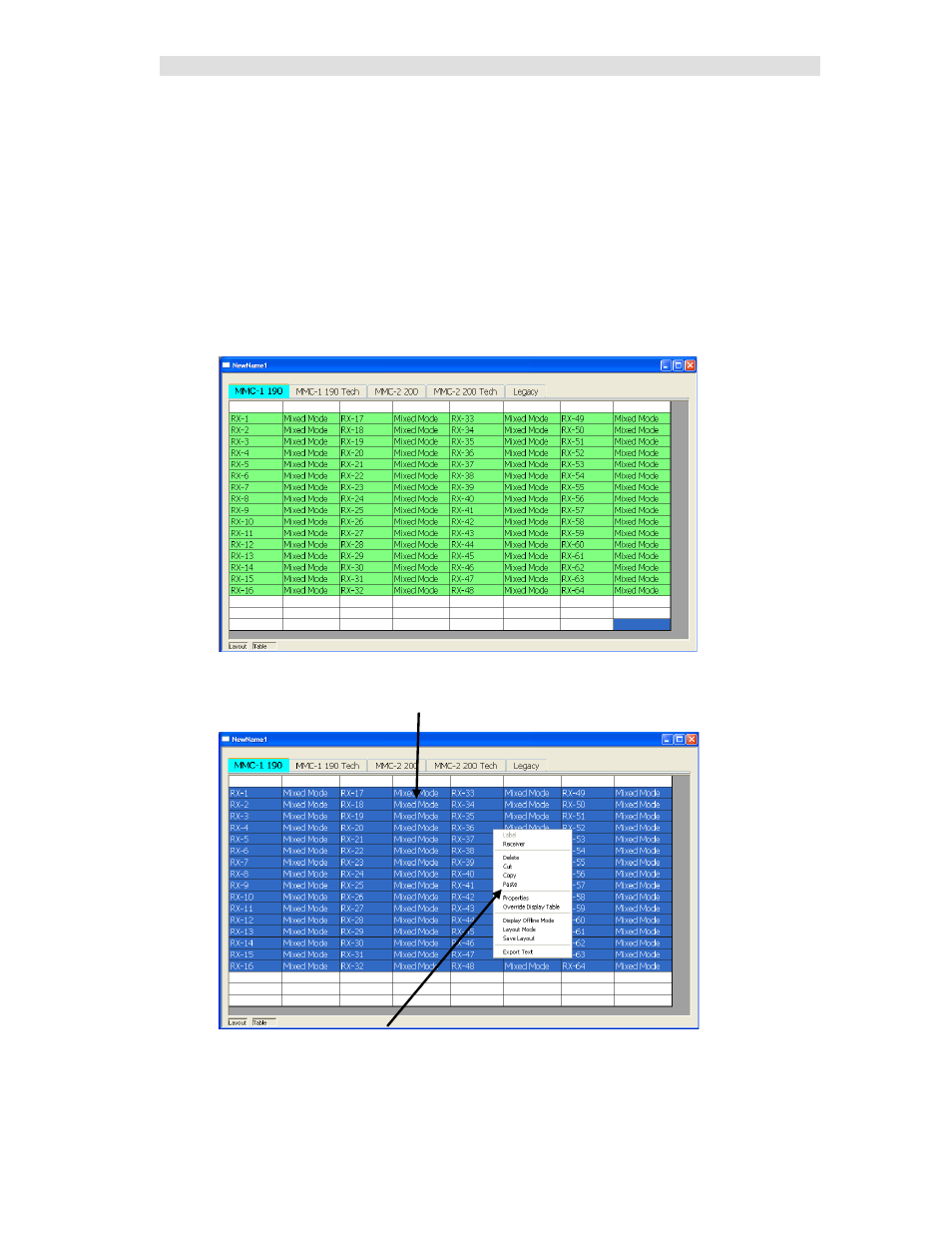

Using Alternate Display Tables – Override Display Tables
There are multiple Display Tables that can be used with IP comparators. Each comparator has a standard
Display Table and a Last Vote Display Table. The MLC 8000 Analog Comparators and the Mixed
Mode systems also have Tech Display Tables. You can build screens using the default (or Last Vote)
Display Tables for your users and separate Tech screens that use the Tech Display Tables using the
following technique:
1. Build the standard User screen (Display Windows)
2. Build new Tech screens (Display Windows)
3. Copy the Labels & Receivers from the standard User screen to the Tech screen. Be sure to
highlight the proper number of columns when you paste the data to the Tech screen.
Default Display Tables will appear in green.
4. Highlight all the appropriate receivers oh the Tech screen.
5. Right-Click and select "Override Display Table"
