3.16 ADAM-4056S 12-channel Sink Type Isolated Digital Output
Module
ADAM-4056S is a 12-channel sink type isolated digital output
module. The isolated channels are designed for digital output for
critical applications. Open collector outputs can provide from +5 to
+40 V
DC
, and both ADAM ASCII and Modbus/RTU protocols are
supported. LED indicators are used for status reading.

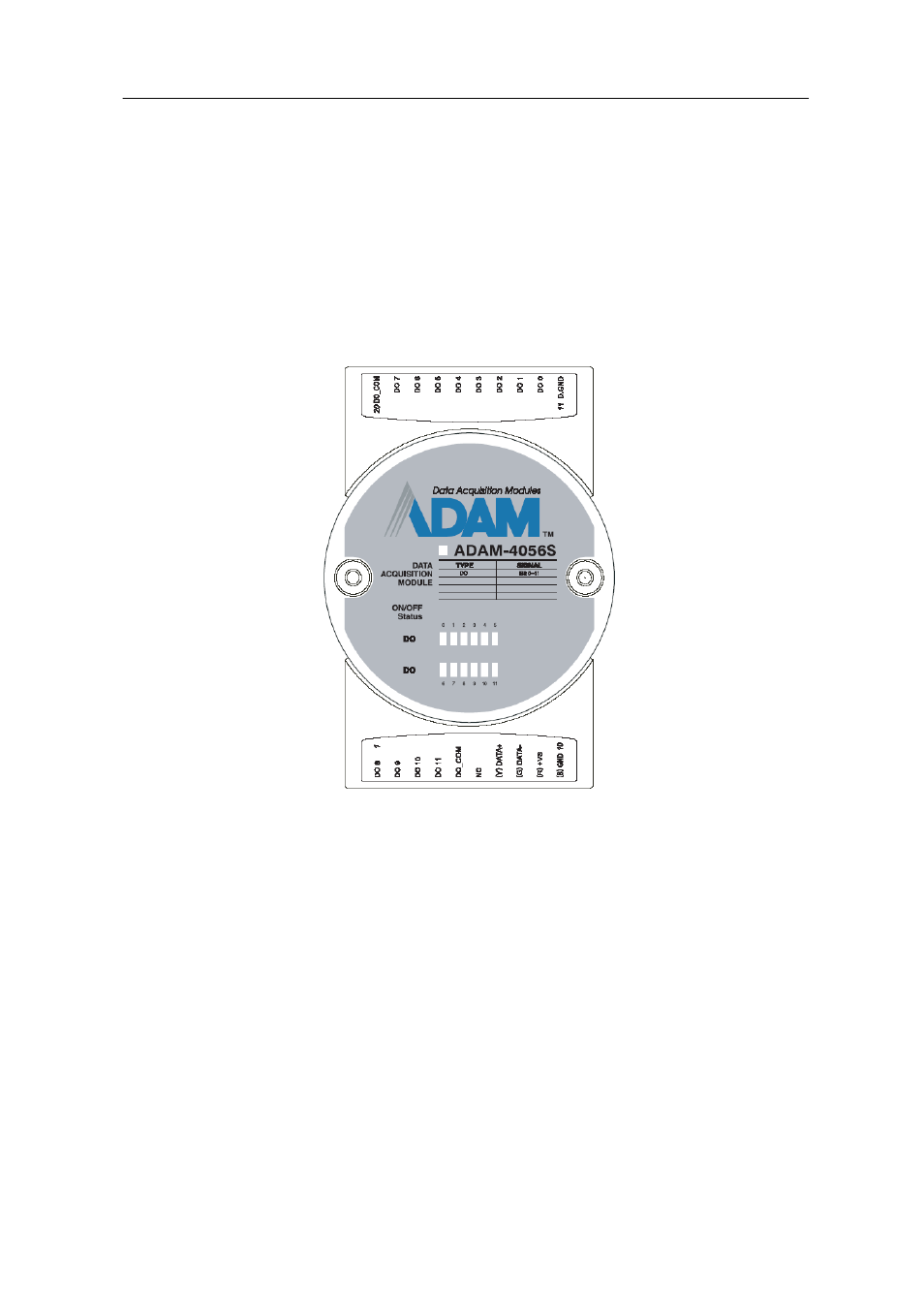

Figure 3-57 ADAM-4056S 12-channel Sink Type Isolated Digital Output Module
Technical Specification of ADAM-4056S
ΠNumber of Output Channel: 12
ΠDigital Output:
Open Collector from +5 ~ +40V, 200mA max. load (Sink)
ΠLED Indicator: On: Active, Off: Non-active
ΠPower Consumption: 1 W @ 24V
DC
ΠOptical isolation: 5000 V
DC
ΠSupports Modbus/RTU protocol
ΠI/O Connector Type: 10 pin plug-in terminal*2
ΠSupport Safety Value:
Force the DO channels to safety status when communication is in
time-out and over pre-defined period.
