Chapter 3 I/O Modules 3-75
ADAM-4080D Counter/Frequency Input Modules with LED Display
ADAM-4080D
CODE INPUT RANGE
50
51
DATA
ACQUISITION
MODULE
GA
T E
1-
GA
T
E
1+
IN
1-
IN
0
GA
T E
0
D.
GND
IN
IT*
(Y) D
A
TA+
(G
) D
A
TA-
(R
) +
V
s
(B) G
N
D
IN
1+
D
O
0/LO
DO 1
/HI
IN
1
COUNTER
FREQUENCY
GA
T E
1
IN
0+
IN
0-
GA
T
E
0+
GA
T E
0-
(Non-isolation)
(Photo-isolation)

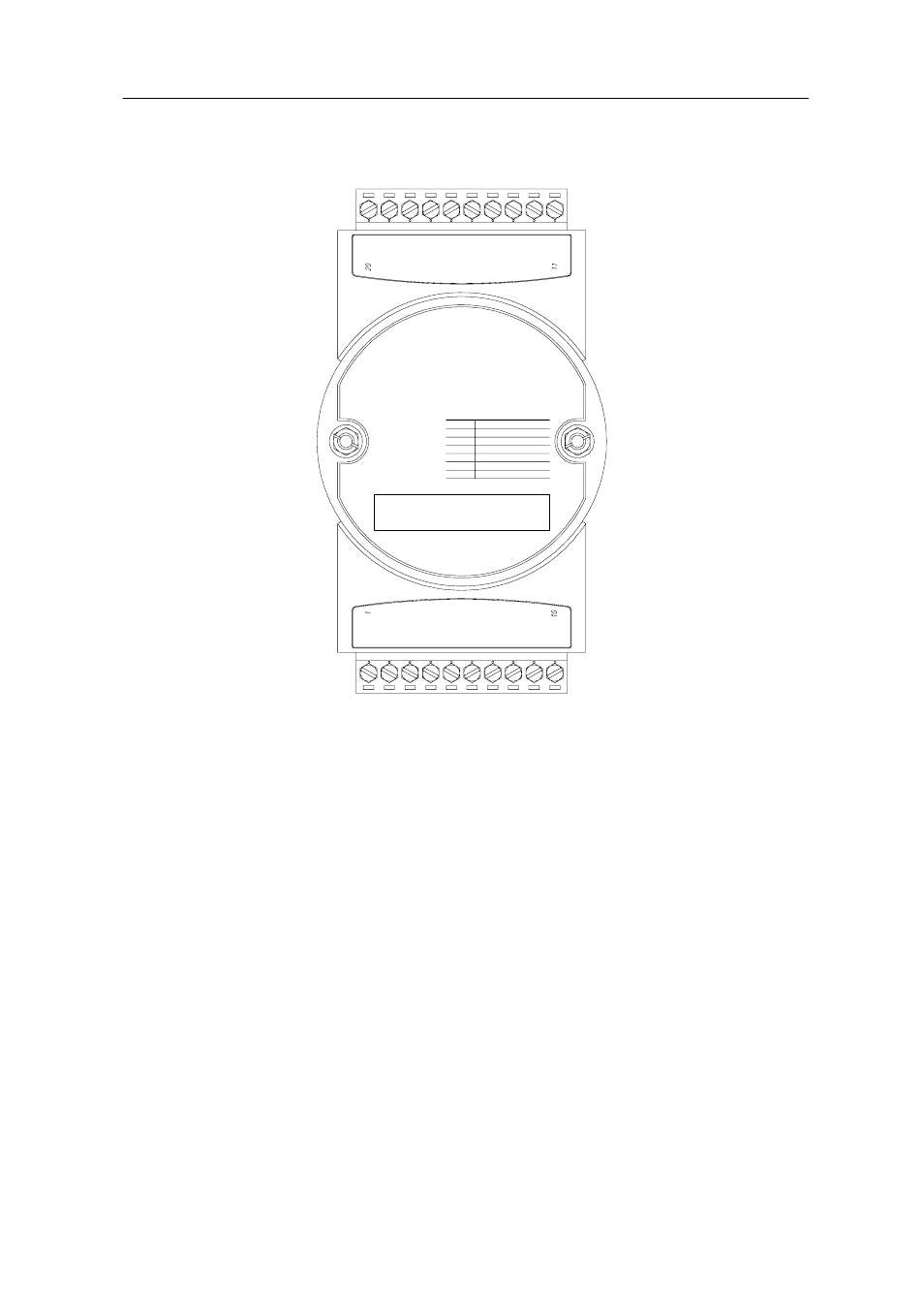

Figure 3-71 ADAM-4080D Counter/Frequency Input Module
with LED Display
Channels: 2 independent 32-bit counters (counter 0 and counter 1)
Input frequency: 50 kHz max.
Input mode: Isolated or non-isolated
Isolation input level:
- Logic level 0: +1 V max
- Logic level 1: +3.5 V to +30 V
- Input Impedance: 1.2 kΩ
Non-isolation input level (programmable threshold):
- Logic level 0: 0 to +5V (default = 0.8 V)
- Logic level 1: 0 to +5V (default = 2.4 V)
- Input Impedance: 50 MΩ
