3.15 ADAM-4055 16-channel Isolated Digital I/O Module
The ADAM-4055 offers 8 channel isolated digital input and 8
channel isolated digital output for critical applications. The inputs
accept 10~50 V voltage, and the outputs can supply 5~40 V
DC
at the
open collector. The ADAM-4055 is user friendly with built LED
indicator for status reading.
Notice: we had updated the digital input dry/wet contact option by
using jumper selection. The default setting is to support these two DI
contacts both at the same time. However, a customer can also choose
his or her needs by supporting only one. Please refer to the following
wiring illustration figure 3-54b for more details

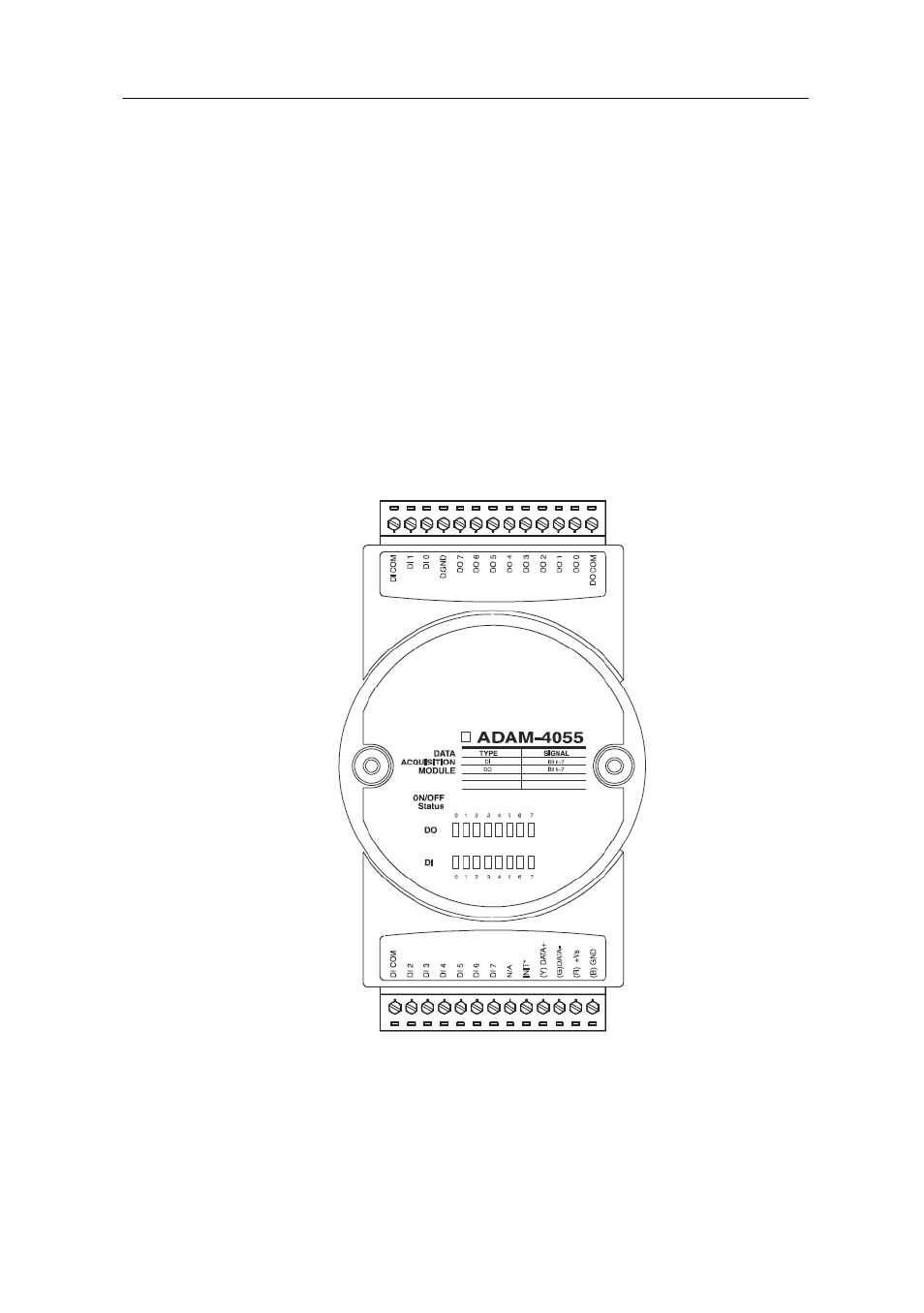

Figure 3-52 ADAM-4055 16-channel Digital I/O Module
