VT-Probe Connect to Controller
Step Action

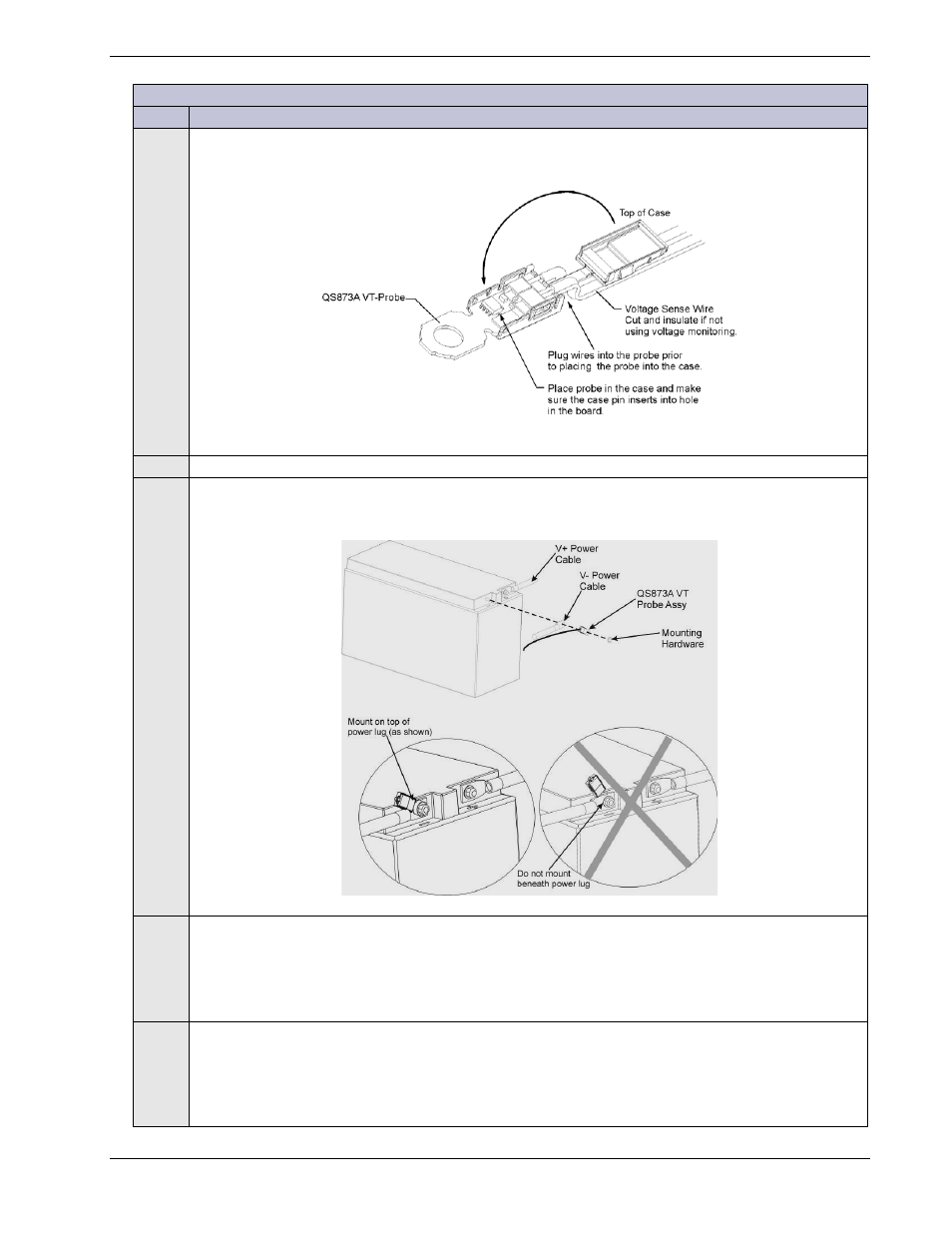

3 Insert the 3-pin connector end of the cable into the receptacle on the VT-Probe closest to the
controller.
4 Snap the cover closed on the VT-probe.
5 Place the first probe to the negative battery post as shown in figure.
6 The controller automatically recognizes the VT-probes. The number of registered temperature
probes and the highest battery temperature monitored may be checked from the front panel
by scrolling down the menu at MenuStatusBatteries. The fields are “Num Temp Probes
()” and Highest Temp () where () contains the number of devices communicating in the system
as well as the highest battery temperature.
7 Connect either the 848719803 (5-ft) or the 848719811 (10-ft) cable to the 2-position
receptacle of the first probe and to the 3-position receptacle of another probe.
Verify the number of probes (2) registered with the controller with command:
MenuStatusBatteriesNUM TEMP PROBES (2)
