Pulsar Plus Controller Family
Issue 7 December 2011 24

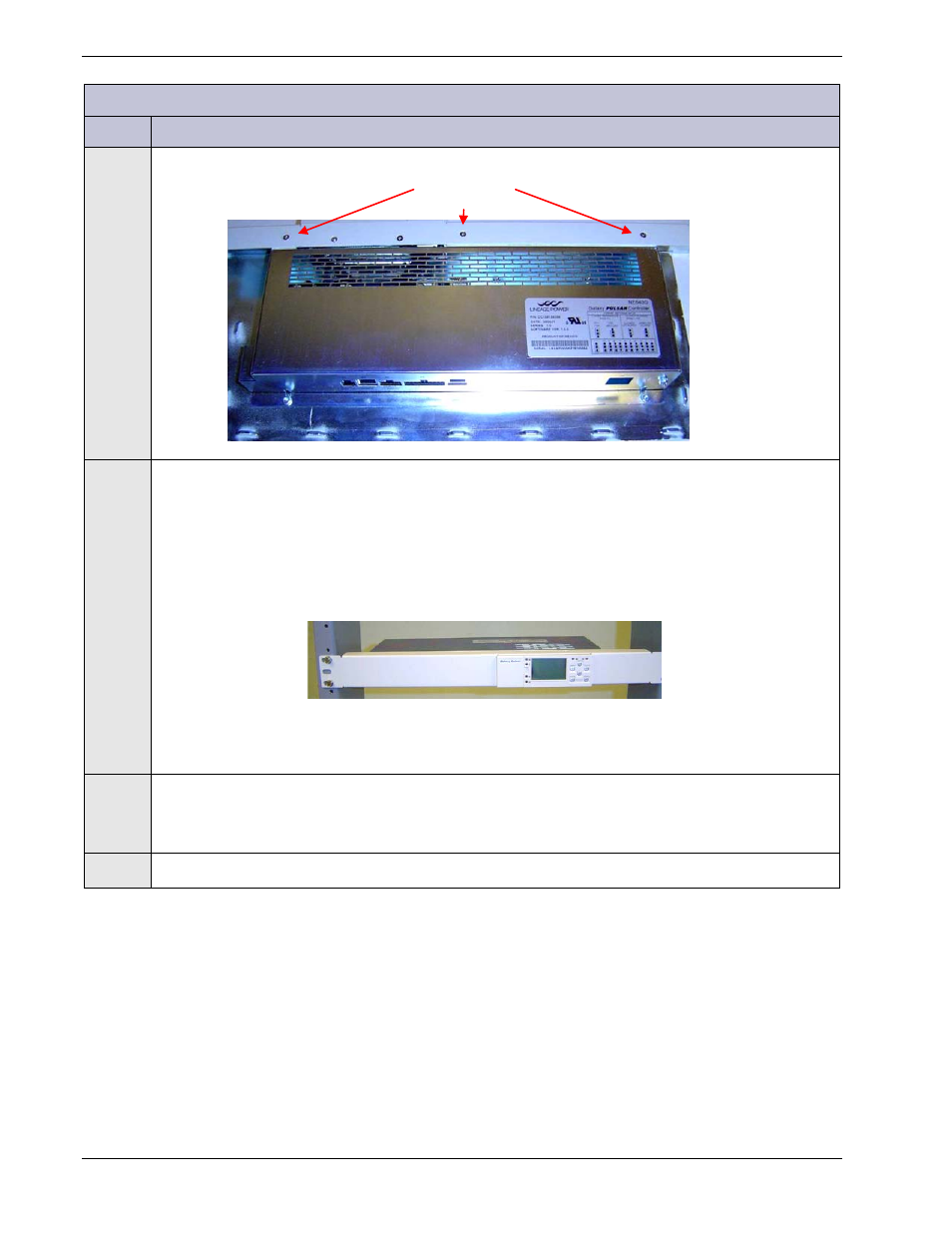

Install and Configure Pulsar Plus NE843G Controller
Step Action
2 Frame Mounting
The NE843G is designed to flush-fit into standard 19” frame rails. Extension brackets are
available to mount the unit into standard 23” frame rails. Use the #12 paint piercing ground
washers (12NWGRO/T2) along with the six 12-24 self-tapping screws (CC408577571) to mount
the NE843G to the frame. Use at least two screws per side. The controller is typically mounted
over the top of a J85480S1 L1 or L4 rectifier shelf but can also be mounted below.
Note: Return to this section if changing the jumper settings with the unit not installed in the
frame.
3 Configure Individual Alarm Output Contact Type– “Close” on or “Open” on alarm
The factory default configuration for all alarm outputs is “Open” on alarm. If this acceptable go
to Step 8. Otherwise continue.
4 If the controller is slot mounted remove it to gain access to the jumpers. Otherwise continue.
M3 Screws
