Page 12

Pulsar Plus Controller Family
Issue 7 December 2011
12
The Pulsar Plus NE843A slot controller is inserted into the left-most position of the rectifier shelf. This
position in the shelf allows access to all I/O. The panel/door-mounted Pulsar Plus NE843C/NE843E/NE843P
controllers are typically installed at the factory, but can also be ordered separately for spares or integrated
into custom systems.

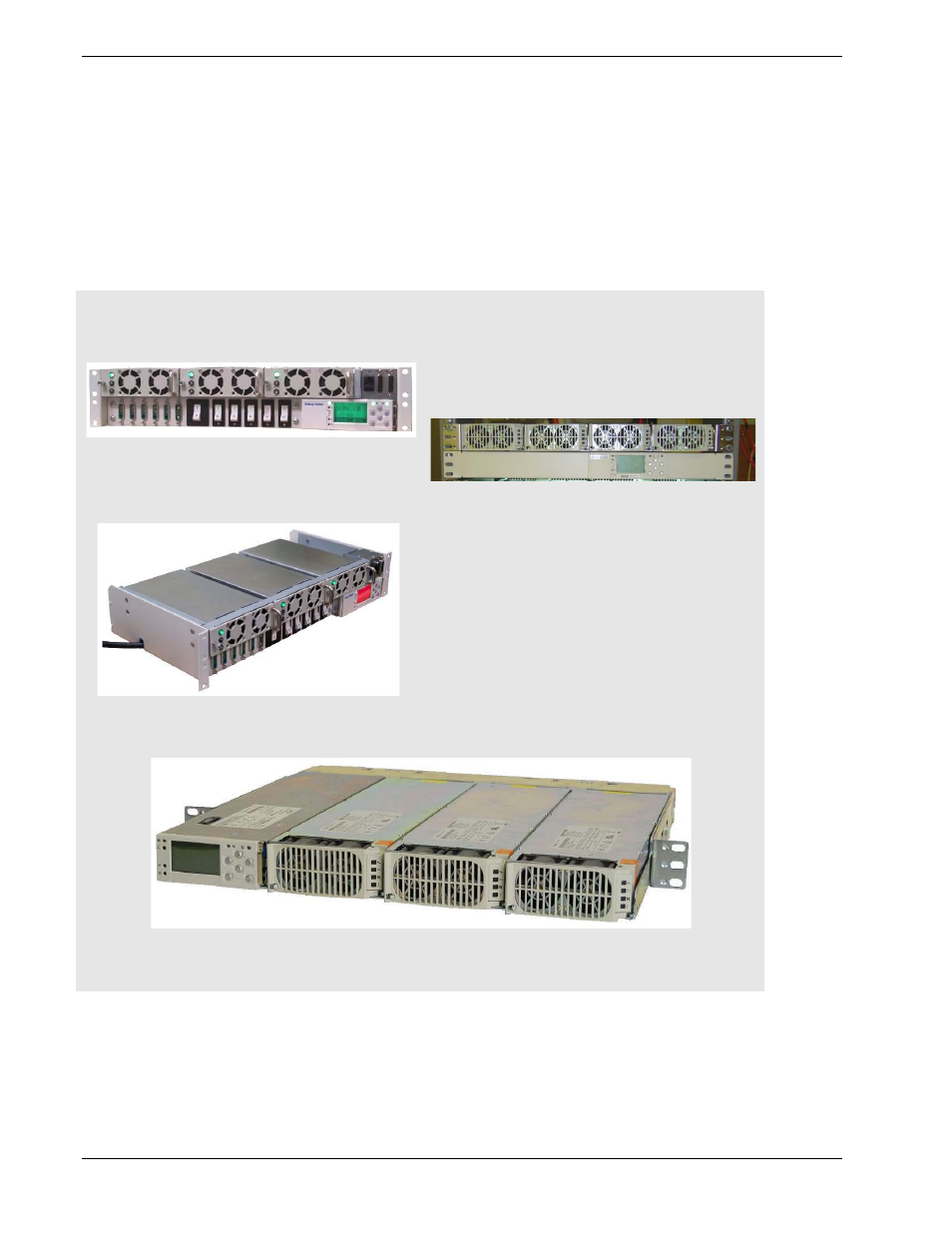

The following pictures depict the Pulsar Plus controller in the EPS and Compact Power systems. These
include two slot controllers, EP843D and the CP843A, and the 1U rack-mount controller applicable in 19”
and 23” frames. The Pulsar Plus controllers provide a front panel DB9 or RJ45 Craft port for local terminal
access using RS-232. A front panel position is reserved for a second RJ45 Ethernet connection in the near
future.
Compact Power Systems
EPS2400 Power System
(Pulsar Plus EP843D)
Compact Power Shelf
(Pulsar Plus NE843G)
Compact Power Shelf
(Pulsar Plus CP843A)
Figure 2: Compact Power Systems
