ATmega4HVD/8HVD
1. Pin Configurations

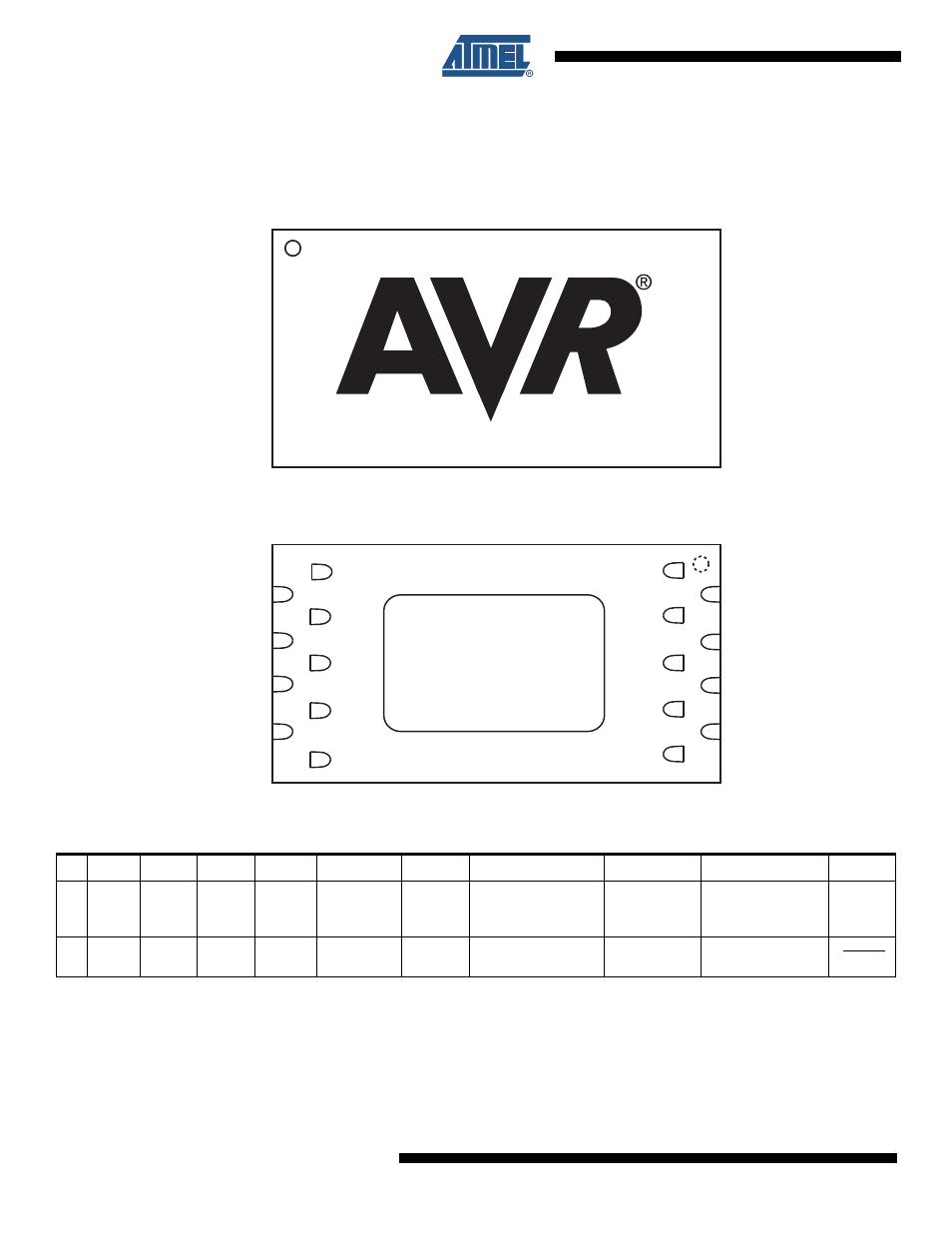

Figure 1-1. Dual Row DFN/ MLF-pinout ATmega4HVD/8HVD.
A8
A7
A6
A5 A4
A3
A2
A1
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
Bottom view
Top view
Table 1-1. Dual Row DFN/ MLF-pinout ATmega4HVD/8HVD.
1 2 3 4 5 6 7 8 9 10
A
DNC BATT GND PV1
PB1
(SCK/
SGND/T0)
DNC VCC
PC1
(MOSI/INT1/
EXT_PROT) - -
B
OD OC VFET VREG NI
PB0
(ADC0)
PB2
(MISO/CKOUT/T1)
GND
PC0
(INT0/ICP0/XTAL)
RESET
