12. 4 x 5 Distributor Platform (Optional)
98
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Safety Gate Package (Optional)
IMPORTANT: Attach the platform gate bracket to the gate before attaching it to the inside platform post
using 5/16" hardware.
Attach safety gate assembly to intermediate platform door bracket using 5/16" bolt (S-1196),
5/16" flat washer (S-845) and 5/16" flange nut (S-3611).
Attach intermediate platform door bracket to two (2) safety gate side posts (HP1648HP) using 5/16" bolt
(S-1196), 5/16" flat washer (S-845) and 5/16" flange nut (S-3611).

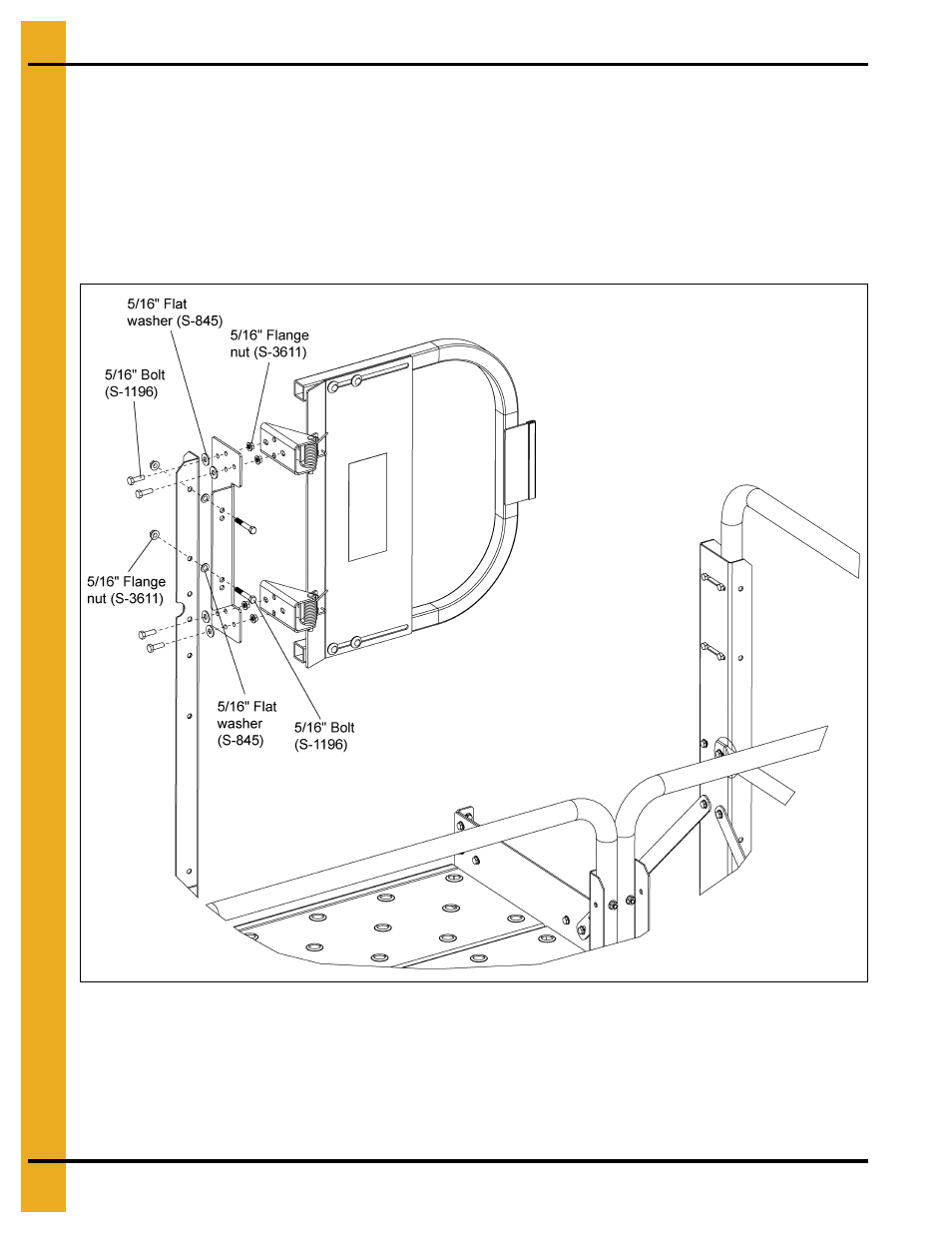

Figure 12L
