6. Tie Angles, Ladders and Safety Cages

26

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

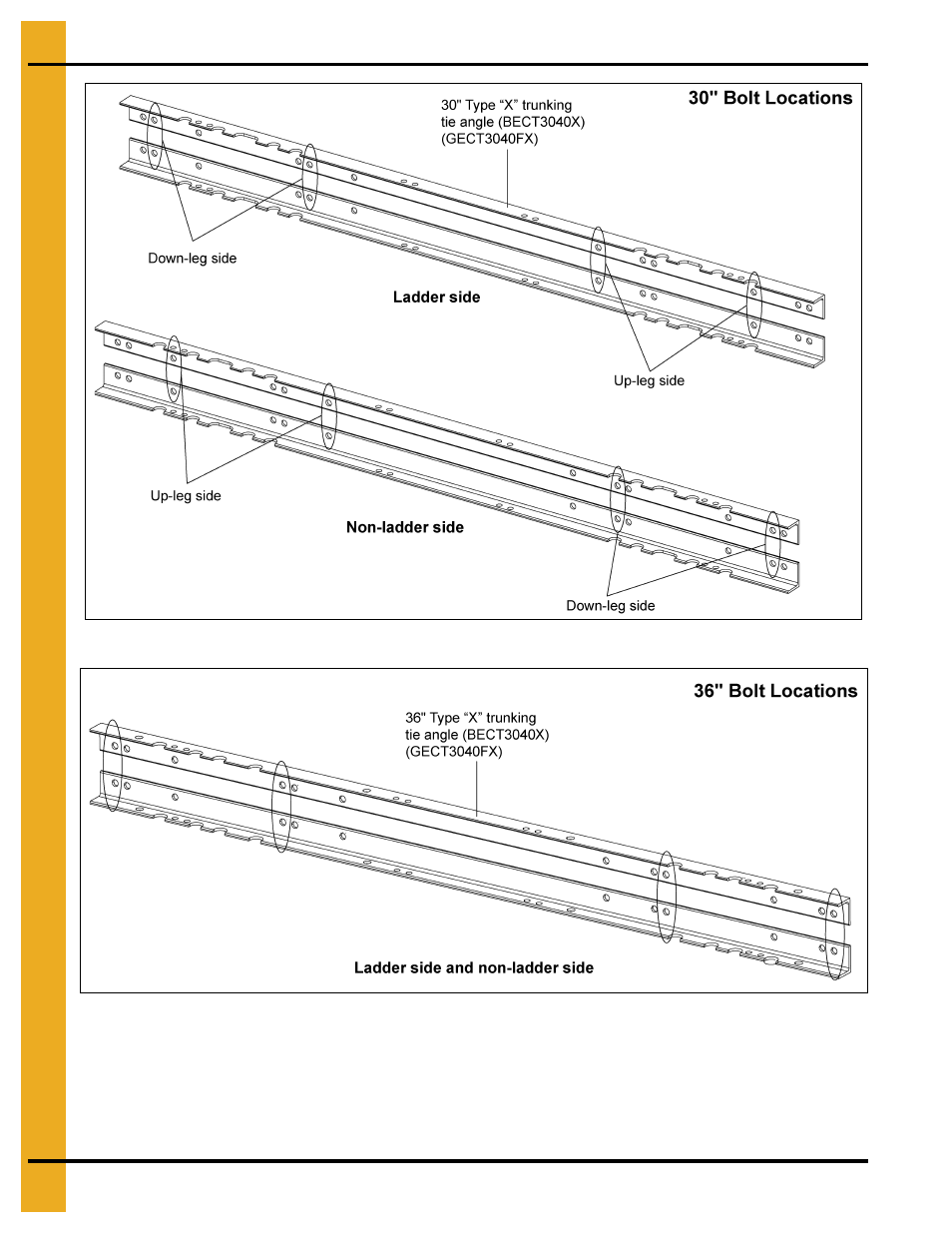

Figure 6H 30" Bucket Elevator Tie Angles to Trunking Bolt Locations

Figure 6I 36" Bucket Elevator Tie Angles to Trunking Bolt Locations
