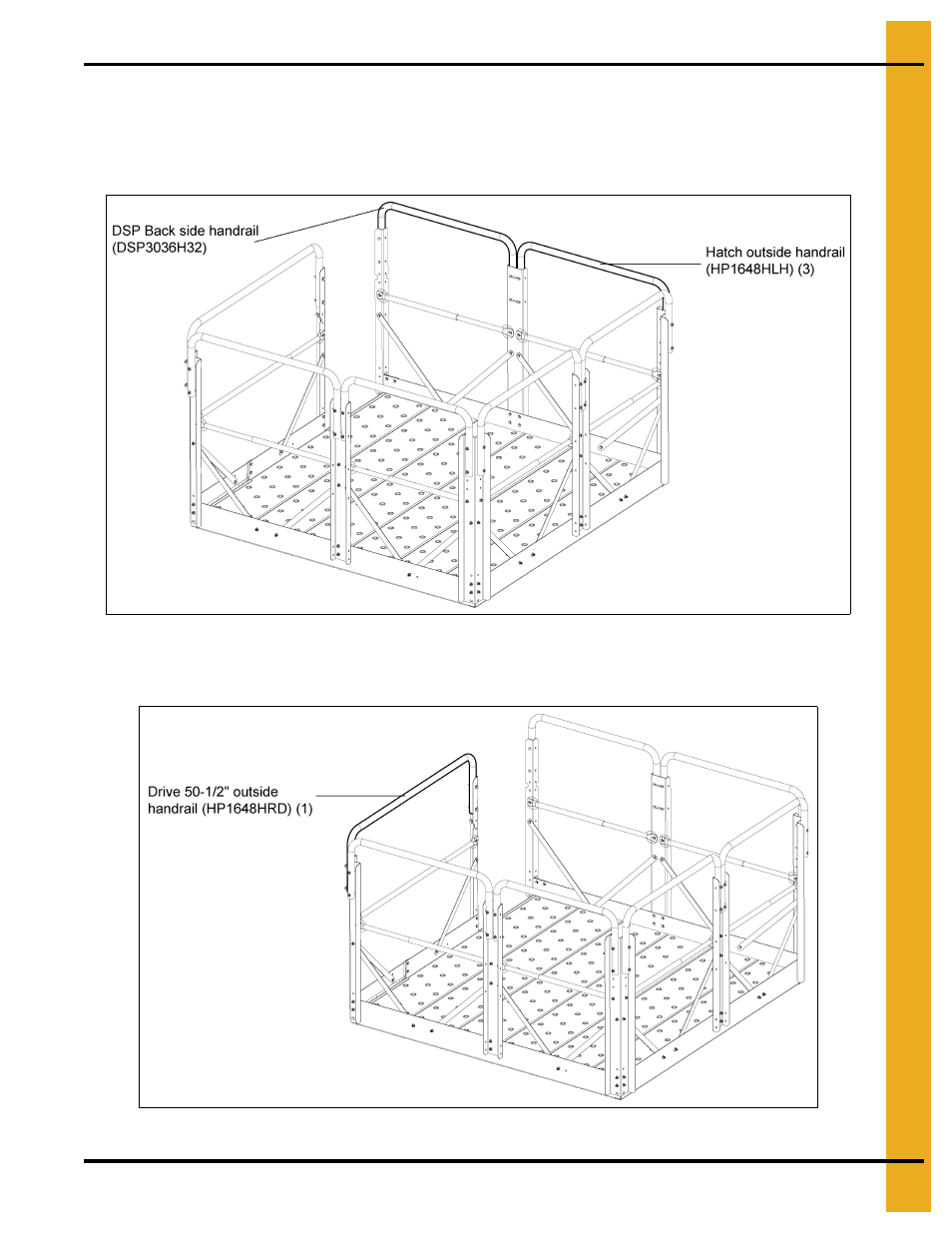

background image

13. 6 x 6 Distributor Platforms

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

111

Upper Handrails (Continued)

Attach hatch outside handrail (HP1648HLH) from “W” corner post to platform post and back side handrail
(DSP3036H32) from platform post to next safety gate side post (HP1648HP) using 5/16" bolt (S-7877) and
5/16" flange nut (S-3611).

(See Figure 13N.)

Figure 13N

Attach drive handrail (HP1648HRD) from “W” corner post to safety gate side post (HP1648HP) using
5/16" bolt (S-7877) and 5/16" flange nut (S-3611).

(See Figure 13O.)

Figure 13O
