Deck a – Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1849 User Manual
Page 70
9. 30"-36" Head Platform Left Hand Drive
70
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

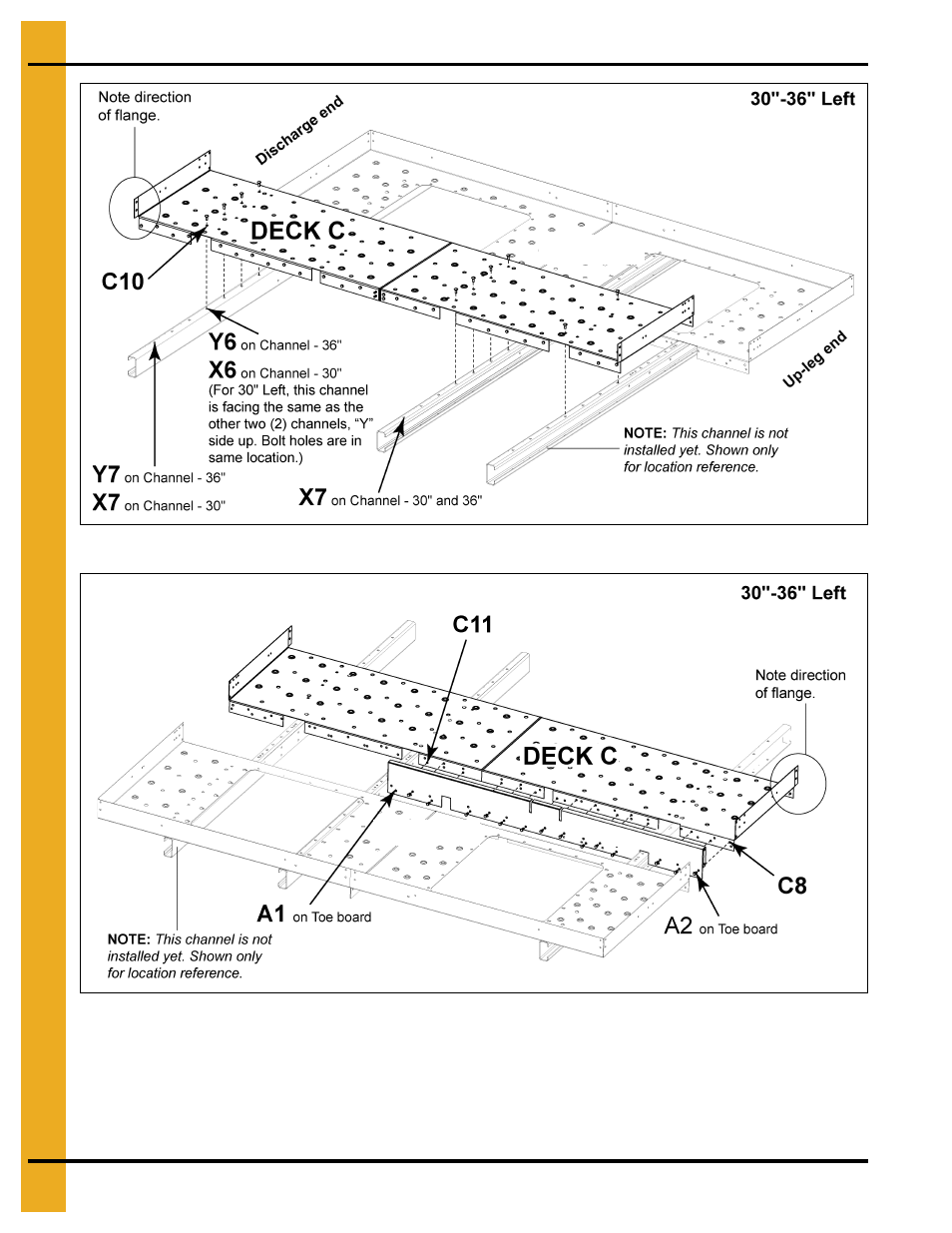

Figure 9J Deck C to Cross Deck Support Channels
Figure 9K Underside View of Deck C to Toe Board
6. Connect Deck C to toe board using 3/8" x 1" bolts (S-7469) with flange nuts (S-10028).
a. Deck hole C11 to toe board hole A1.
b. Deck hole C8 to toe board hole A2.
DECK A
DECK A
