6. Tie Angles, Ladders and Safety Cages

30

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

Safety Cage Installation

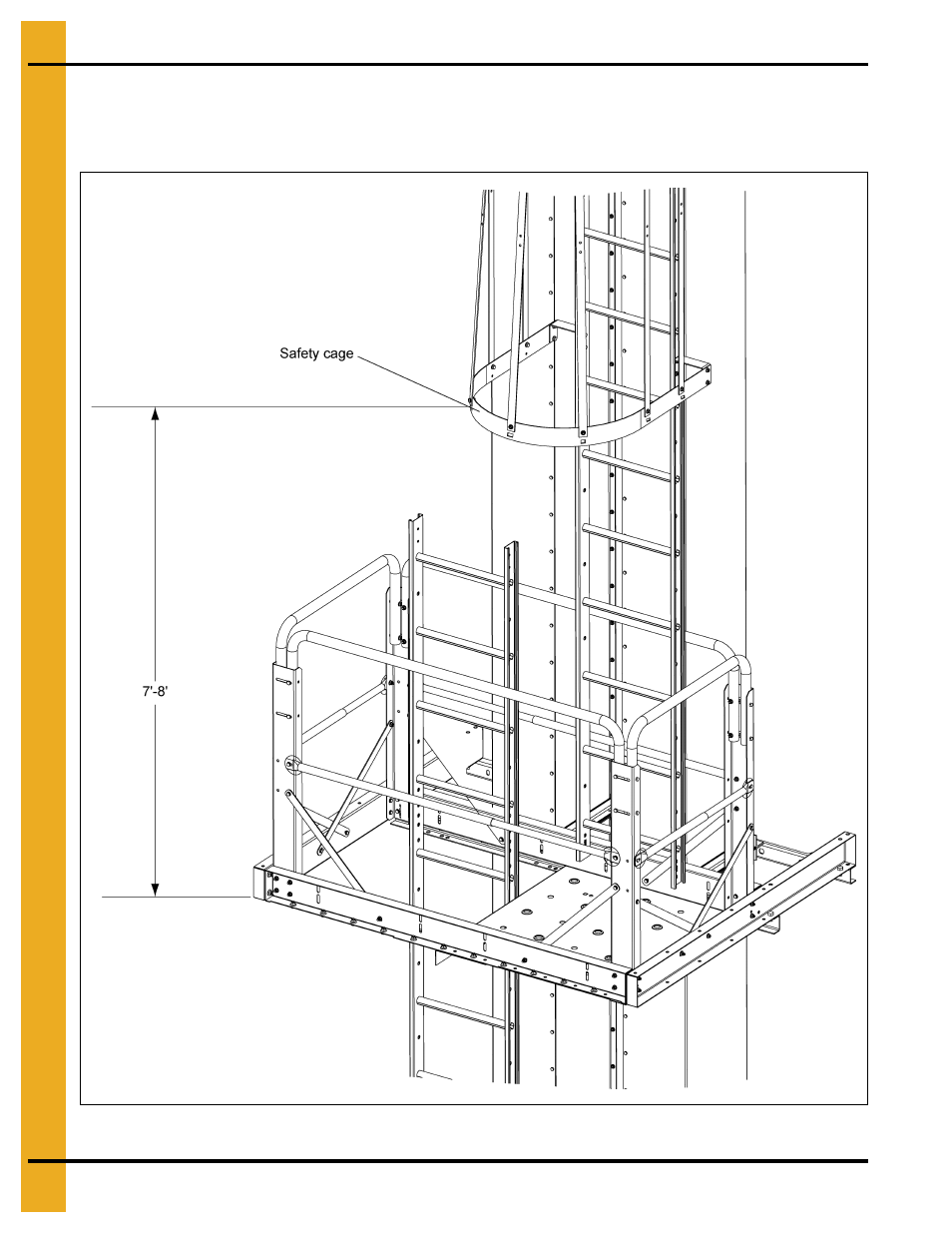

Safety cage entrance must be installed to the ladders within 7'-8' from the ground or platform deck.

(See Figure 6N.)

Figure 6N
