9. 30"-36" Head Platform Left Hand Drive
66 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Attach Deck A to Hatch Cover Plate
NOTE: Only two (2) side of deck plate are attached at this time.
1. Locate pre-assembled Deck A: This plank consists of the hatch opening, the hatch filler plate and
is labeled with holes etched with the letter A.
2. Orient Deck A: The hatch cover plate is at the up-leg end of the deck. The hatch will be located at
the discharge end and will remain open at this time. A hatch door will be attached to Deck A later and
should NOT be installed at this time
3. Attach the hatch cover plate to Deck A: Use eight (8) 3/8" x 1" carriage bolts (S-3585) with flange
nuts (S-10028). (See Figure 9F.)
NOTE: ONLY connect the hatch filler plate along two (2) of the four (4) sides of the plate. The holes
perpendicular to the length of Deck A should remain open at this time as they will serve to
connect the hatch cover plate and deck A to the cross deck support channel.

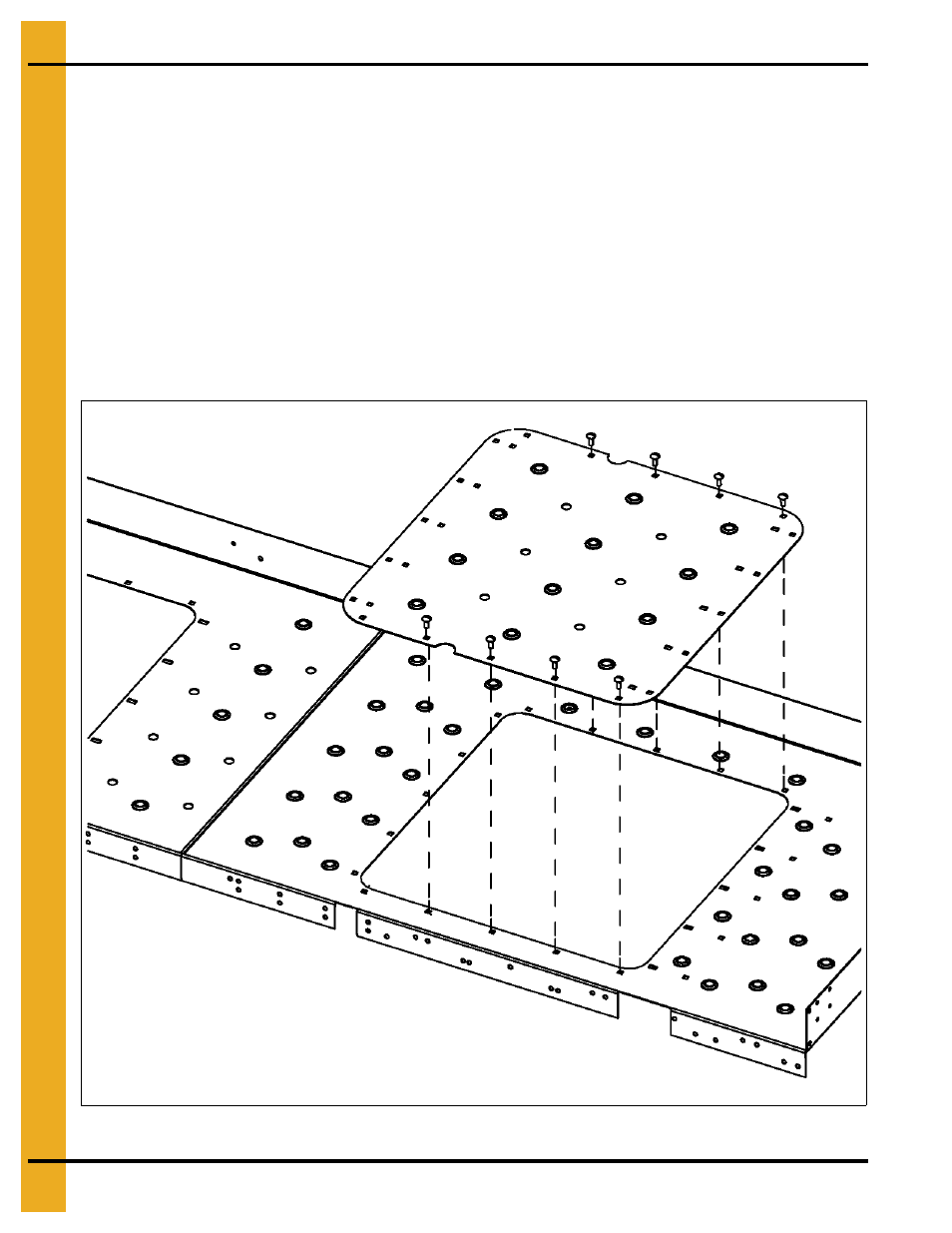

Figure 9F Hatch at Up-Leg End
