Page 25

6. Tie Angles, Ladders and Safety Cages

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

Tie Angles to Trunking

1. Tie angles must be mounted to each trunking seam on both the ladder and non-ladder side of the

trunking. Use 1/2" x 1" bolts.

for the correct location of bolts

for each elevator size.

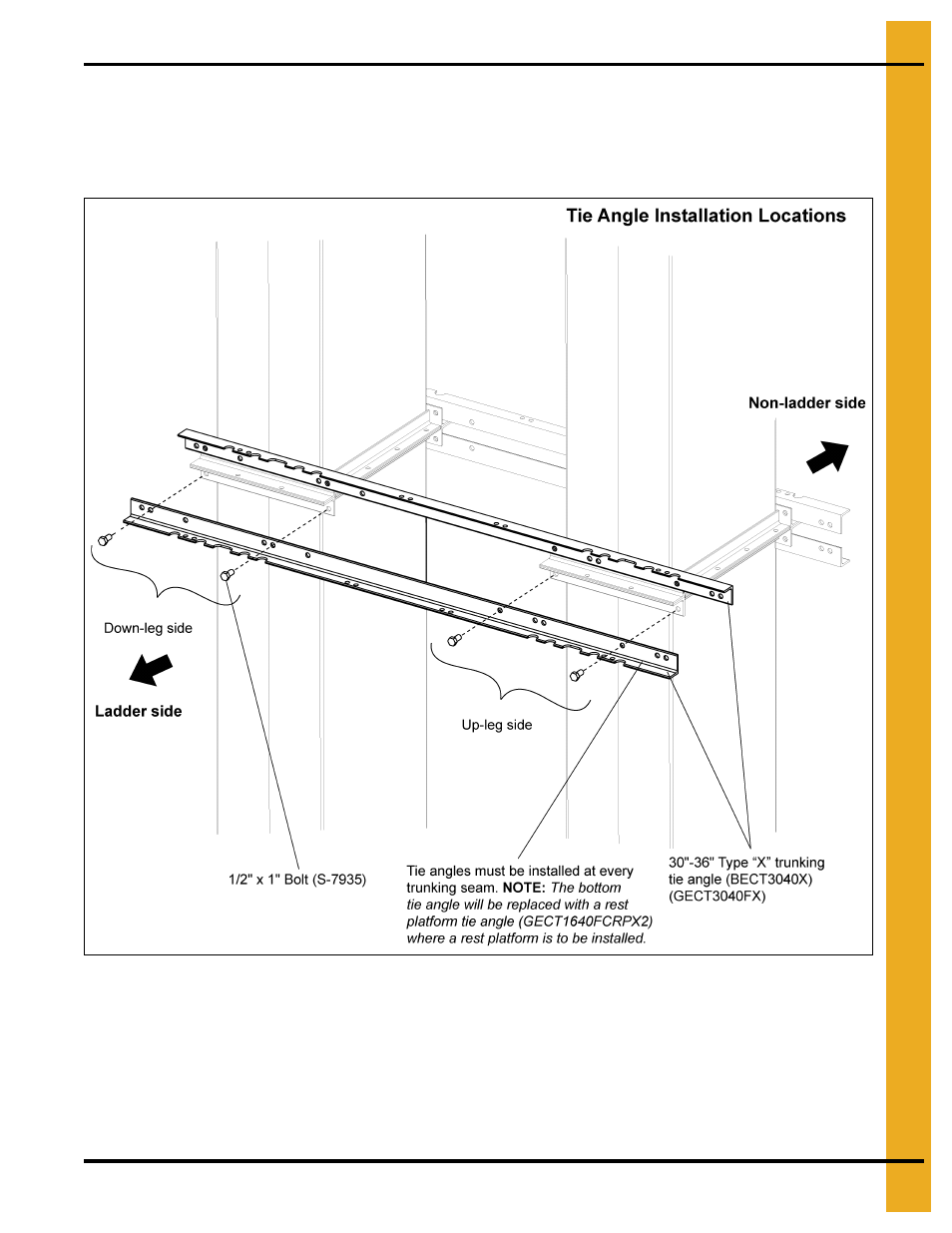

Figure 6G Tie Angle Installation Location
