Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1849 User Manual
Page 36
7. Rest Platform
36
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

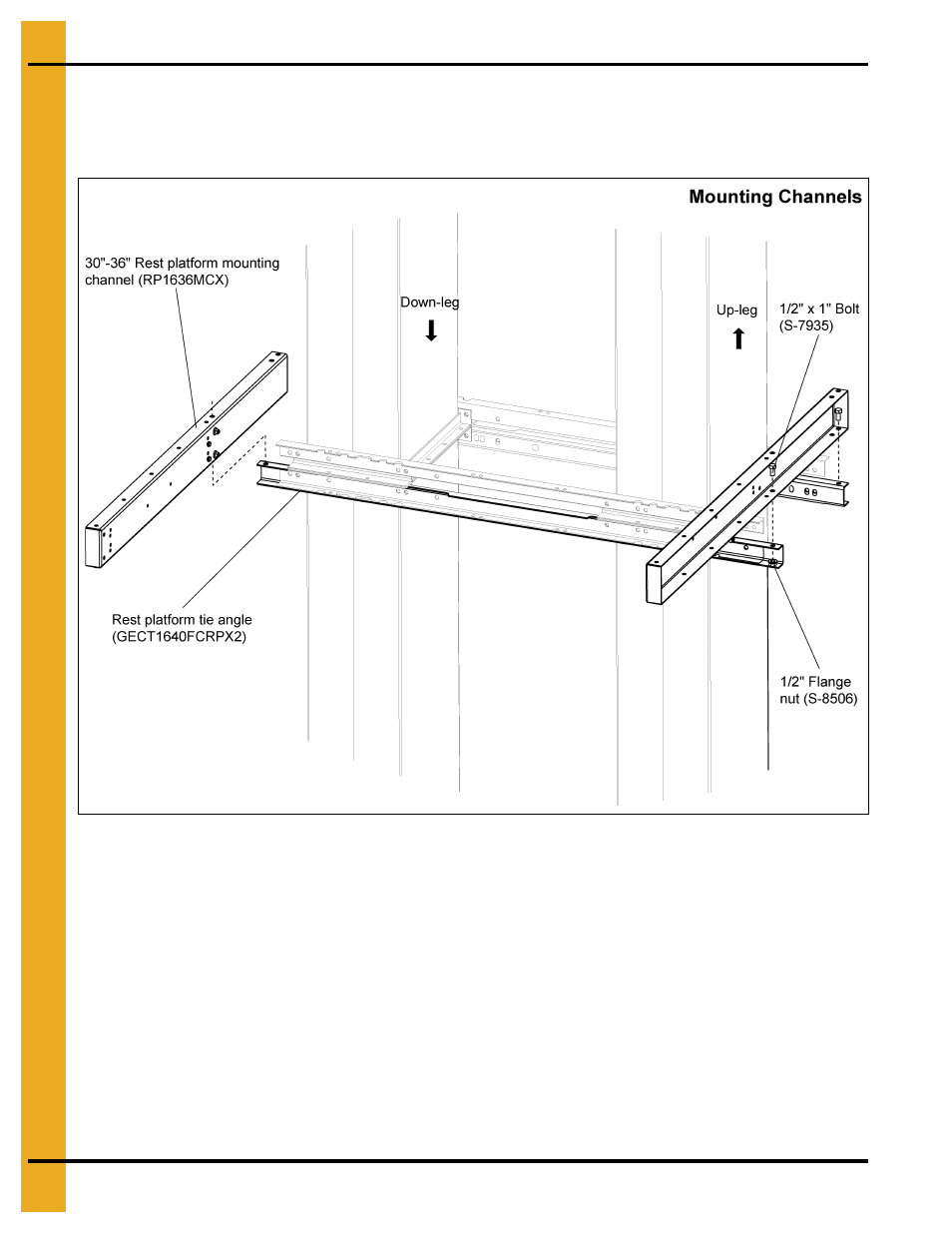

Attach Rest Platform Channel to the Rest Platform Tie Angle
1. Connect rest platform mounting channels to the rest platform tie angles using 1/2" x 1" bolts.
Bolt hole locations for 30"-36" bucket elevator will be the same.
Figure 7E Bolt hole locations for 30"-36" rest platform mounting channels to tie angles.
