9. 30"-36" Head Platform Left Hand Drive

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

Connect Deck A to Cross Deck Support Channels and Toe Board

NOTE: Orientation of etched holes on deck and channel is critical to subsequent steps. Tighten bolts only

finger tight until all decking is installed.

1. Locate pre-assembled Deck A. This plank consists of the hatch opening and the hatch cover plate.

2. Orient deck a so that hatch opening is at discharge end of lower head and hatch cover plate is at the

up-leg end.

3. On the Discharge End, use a punch as needed to line up.

a. For 36" - Deck hole A9 and channel hole Y2.

b. For 30" - Deck hole A9 to channel hole X2.

NOTE: At this time, the head platform hatch deck support (HP36HDS) should be installed UNDER

Deck A. Line this up with hole A4 on the deck flange near hatch opening and install at the
same time attaching deck to toe board.

4. On the Up-Leg End for both 36" and 30", use a punch to align channel hole X1 to corner hole of

hatch cover plate.

5. After aligning the holes as described above, connect all holes between support channel and Deck A

using 3/8" x 1" carriage bolts (S-3585) with flange nuts (S-10028).

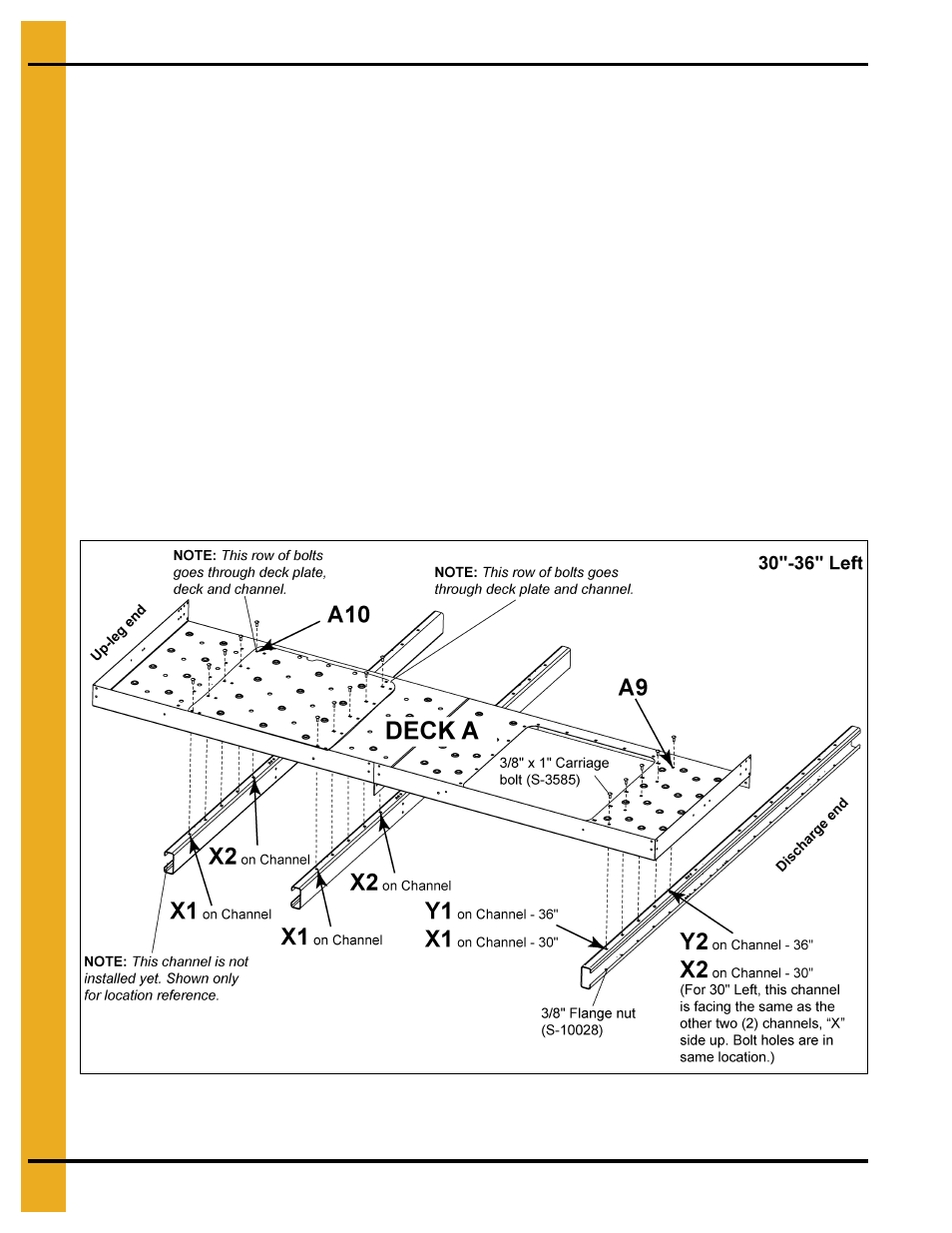

Figure 9H
