6. Tie Angles, Ladders and Safety Cages
22 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
b. 30"-36" Up-Leg Bracket: Use 3/8" x 1" hex bolts to attach the ladder support brackets to
the boot tie angle using the holes indicated in Figure 6D . Note the outer bracket uses the first set
of holes towards the outside.

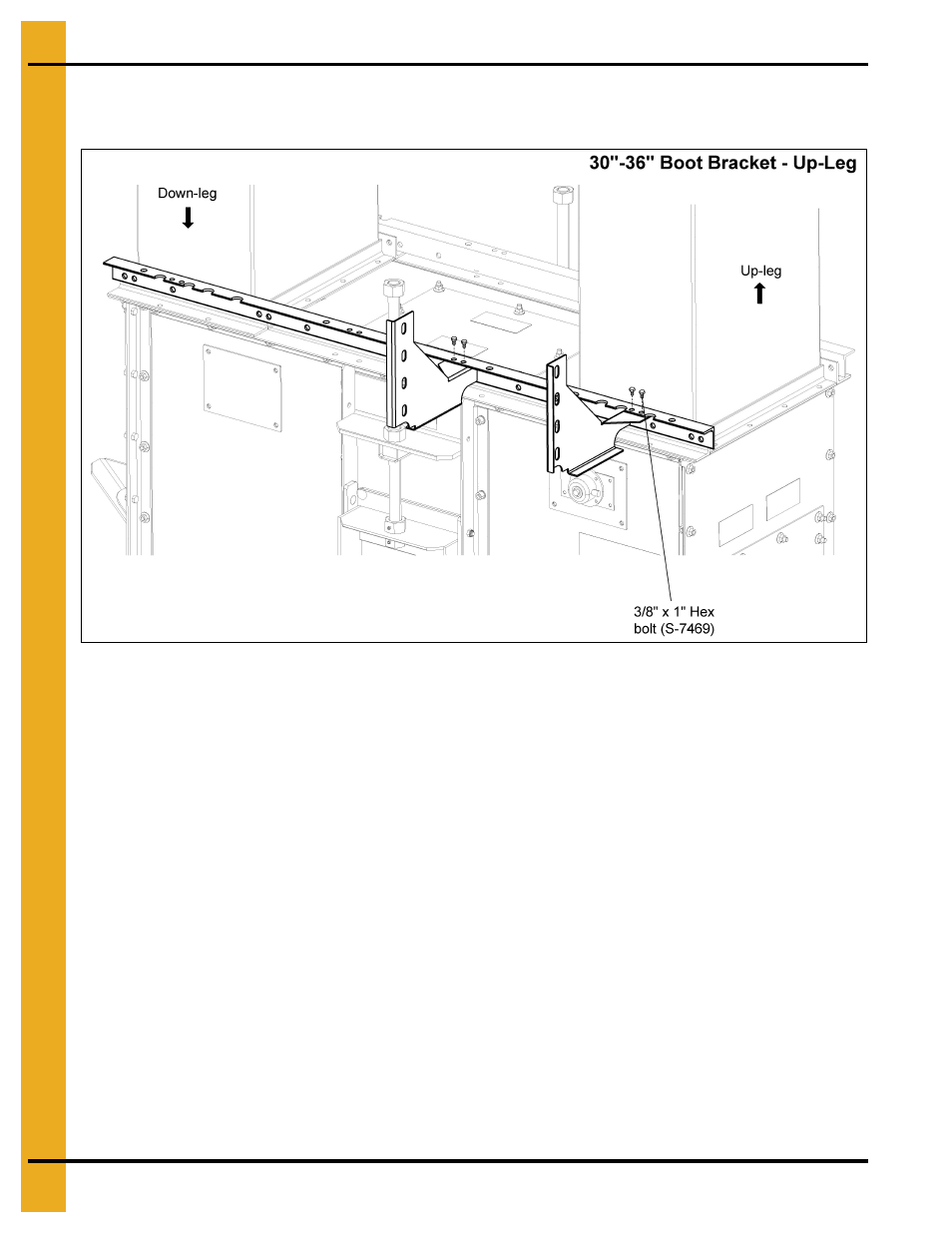

Figure 6D 30"-36" Boot Bracket Up-Leg
