10. 30"-36" Head Platform Post, Rails and Bracing
PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series 81
Attach Intermediate Handrails to Posts
1. Cut 20" off the tube end of one small intermediate handrail (LDR-4088) and one large intermediate
handrail (LDR-4087). (See Figure 10J.) Slide the small rail into the large rail and install between the
posts opposite the discharge end and adjust to fit. Fasten using 5/16" x 3/4" bolts (S-6606) and nuts.
2. Cut 12" off the end of two (2) small intermediate handrail (LDR-4088) and two (2) large intermediate
handrail (LDR-4087). (See Figure 10J.) Slide the small rails into the large rails and install one set at
the discharge end of Deck A. Install the second set opposite the discharge end of Deck A. Fasten
using 5/16" x 3/4" bolts (S-6606) and nuts.

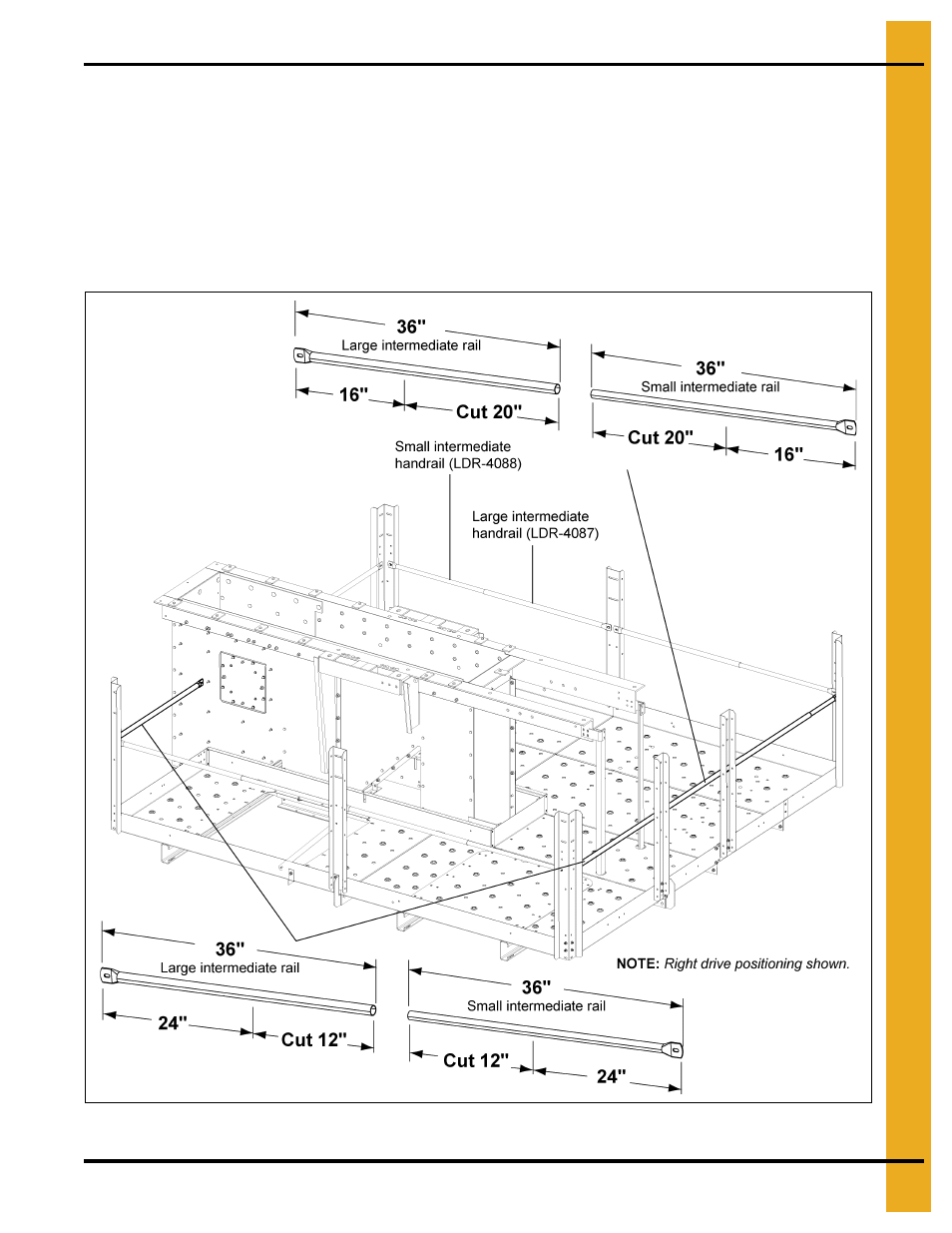

Figure 10J
