7. Rest Platform

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

41

8. Platform braces must be installed from handrail posts to mounting and cross channels using

5/16" x 3/4" flanged hex bolts. Braces should be attached to the outside of the platform post and to
the inside of the mounting and cross channels. NOTE: Safety cage bars (LDR-5171BE) are used as
platform braces/tie angle braces through out this installation. Bolt heads should be on inside of
platforms.

(See Figure 7L.)

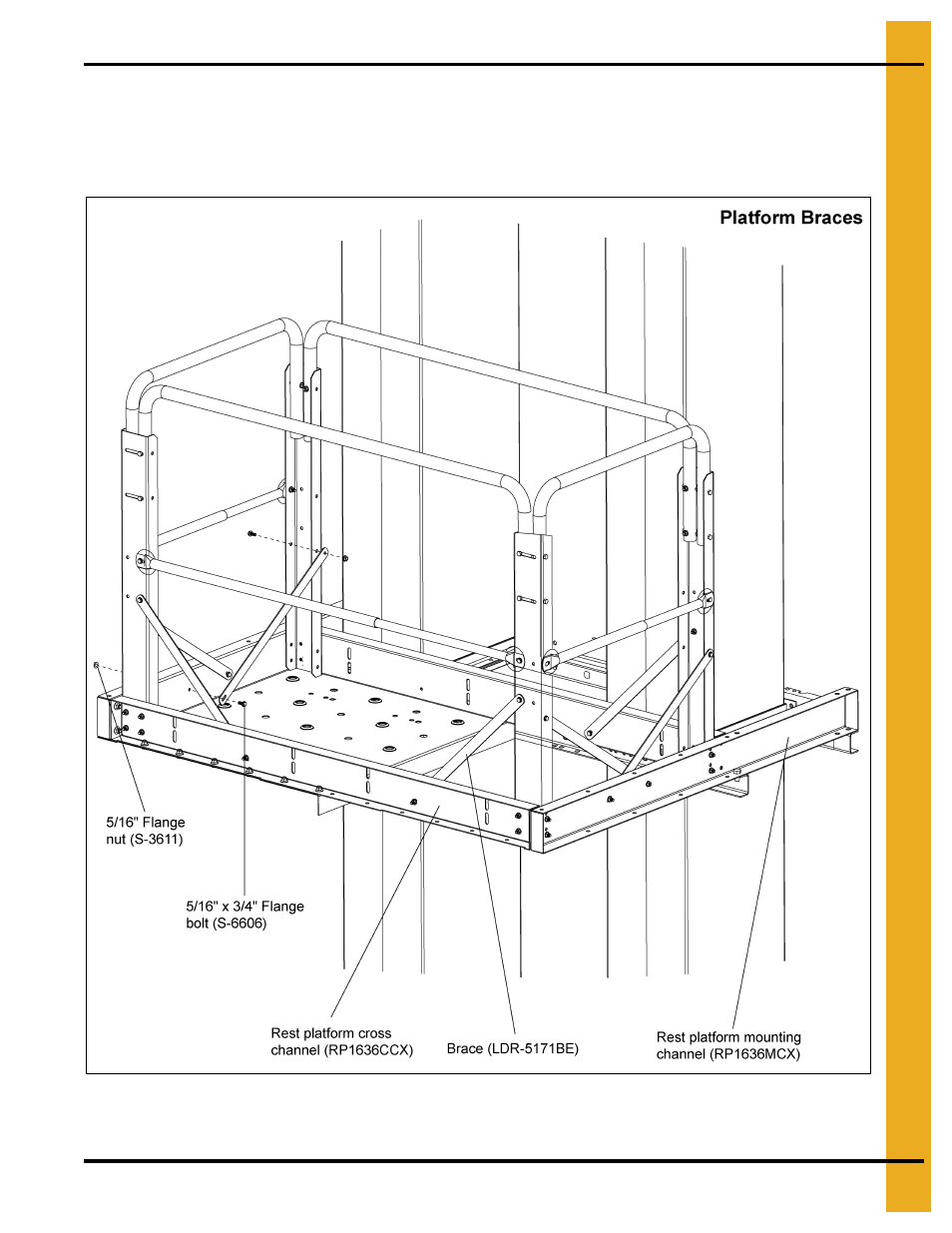

Figure 7L
