8. 30"-36" Head Platform Right Hand Drive
56 PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series
Connect Deck F to Cross Deck Support Channels and Deck C
IMPORTANT: Connect all bolts only finger tight until deck is completely assembled and then tighten to
proper torque.
1. Locate pre-assembled Deck F. This deck consists of two (2) planks.
2. Orient Deck F with hole F3 at the discharge end of the lower head and F5 at the up-leg end.
(See Figure 8L.)
3. Align holes. Use a punch as needed to line up the holes:
a. For 36" - Deck hole F3 and channel hole X7.
b. For 30" - Deck hole F3 and channel hole Y7.
c. For 30" and 36" - Deck hole F5 and channel hole Y7.
4. Connect deck to channel using 3/8" x 1" carriage bolts (S-3585) with flange nuts (S-10028).
5. Orient Deck F flange outside of Deck C flange. (See Figure 8N on Page 57.)

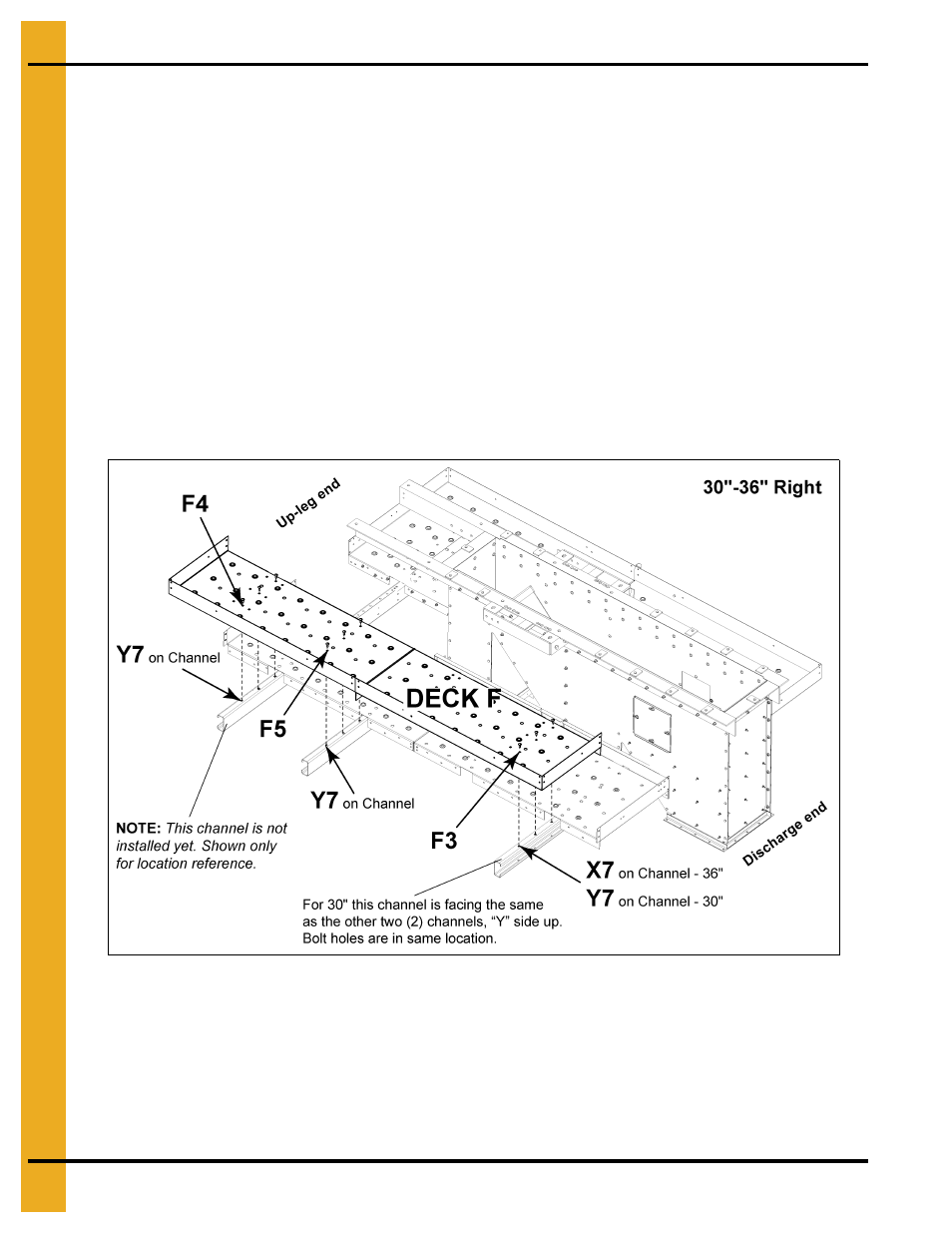

Figure 8L Deck F to Cross Deck Support Channel
