6. Tie Angles, Ladders and Safety Cages

PNEG-1849 30"-36" Bucket Elevator Platform and Ladder “X” Series

33

3. Install the seven (7) 10' safety cage straps along the safety cage hoops using 5/16" x 3/4" bolts and

nuts. NOTE: Bolt heads should be to the inside of the hoop.

(See Figure 6Q.)

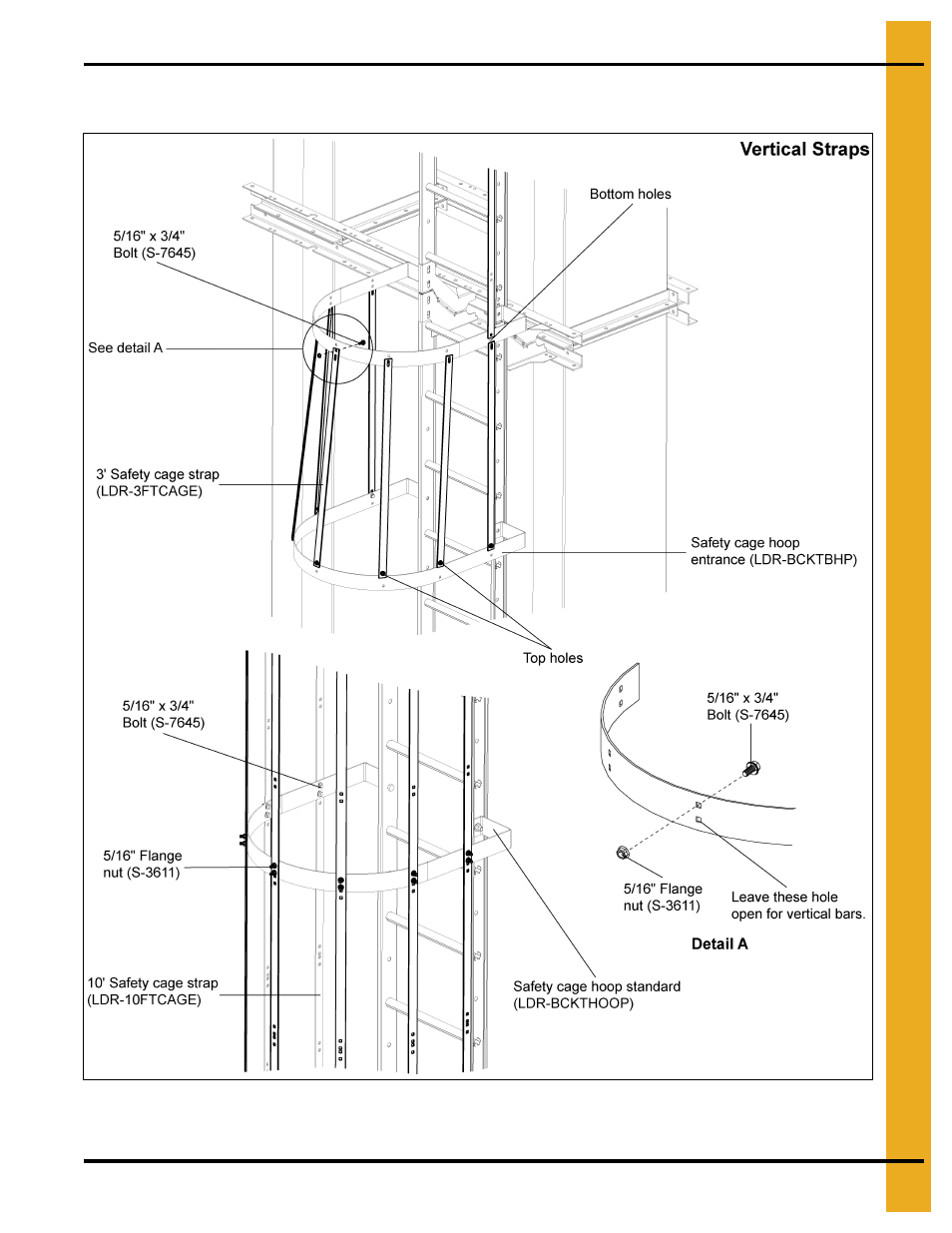

Figure 6Q
